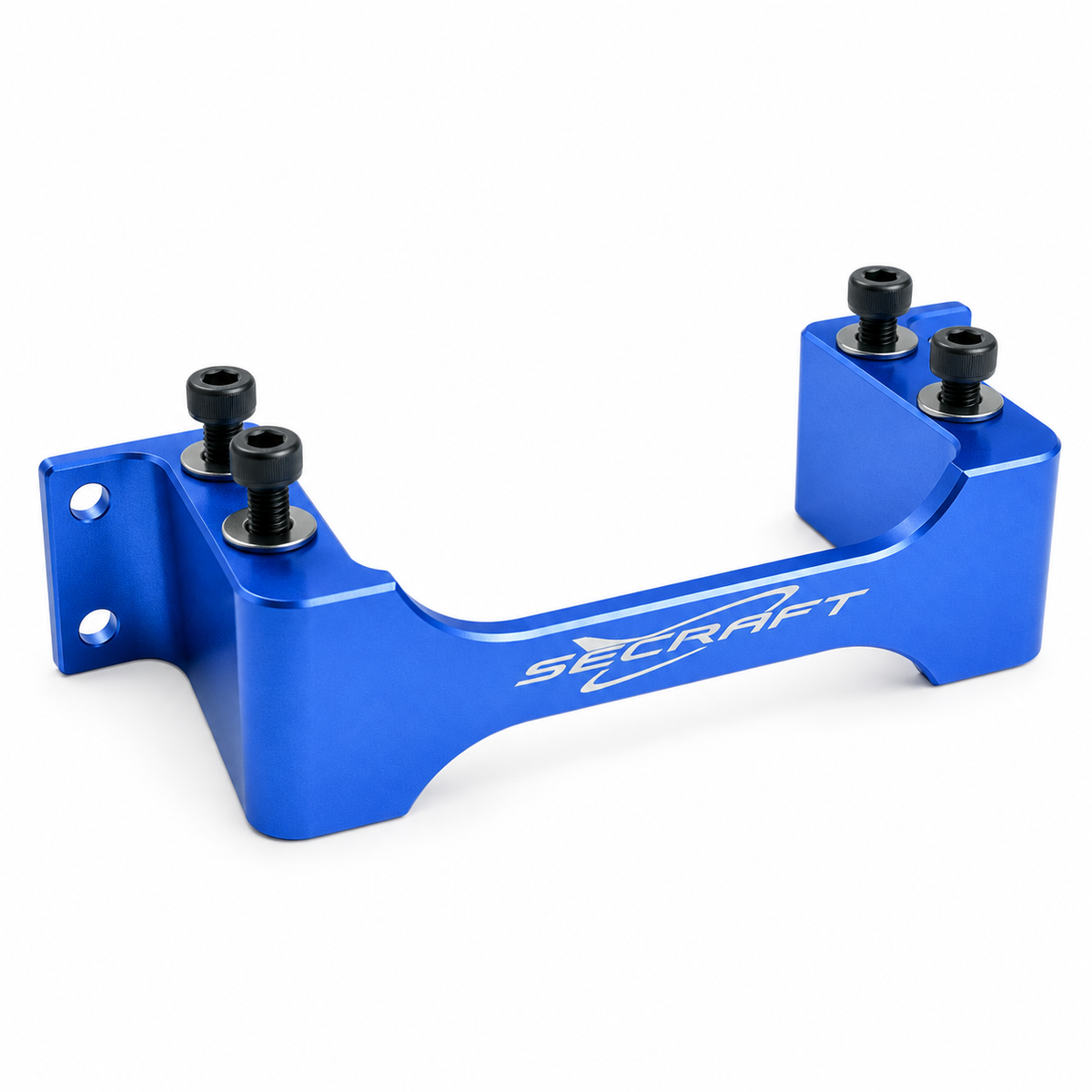

Secraft Aluminum Side Servo Mount – Medium, Blue
Regular price
$13.00
Couldn't load pickup availability

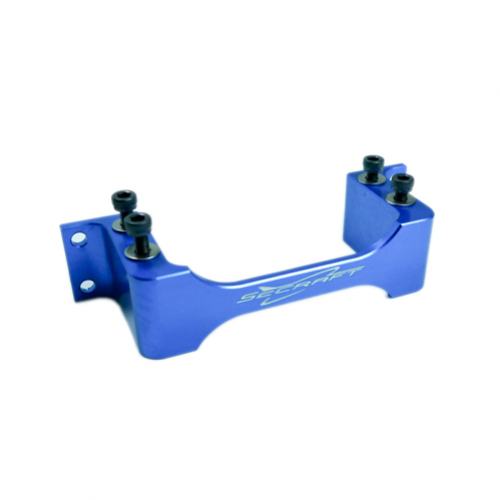

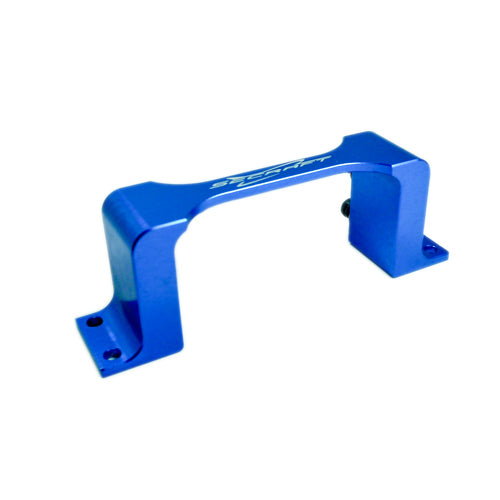

Secraft M-Type Aluminum Side Servo Mount – Blue
The Secraft M-Type Aluminum Side Servo Mount provides a strong and compact way to mount a compatible servo on its side. This mounting arrangement is useful in RC airplane installations where space is limited or a conventional upright servo installation is not practical.
Machined from lightweight 6061-T6 aluminum, the mount provides rigid servo support while weighing only 0.74 oz (21 g). Its blue anodized finish helps protect the aluminum and gives the installation a clean, professional appearance.
Manufacturer-Listed Compatibility

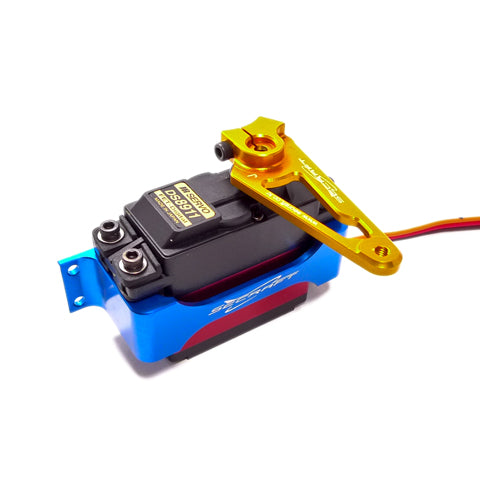

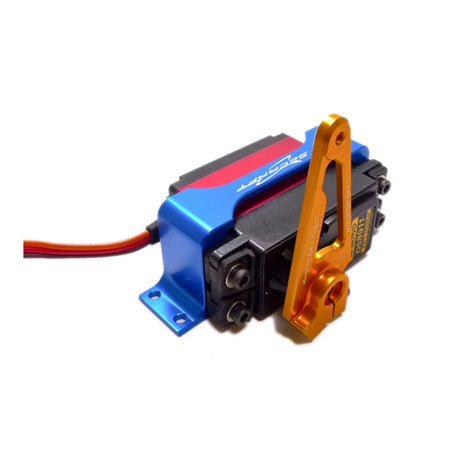

- JR DS8711 servo
- JR DS8911 servo
Features
- M-Type side-mount design
- Designed for compatible standard-size JR servos
- Machined from lightweight 6061-T6 aluminum
- Rigid construction helps minimize unwanted servo movement
- Blue anodized finish
- Useful for custom and space-restricted servo installations
- Mounting bolts included
Common Applications
- Throttle servo installations
- Choke servo installations
- Aileron servo installations
- Retract-door servo installations
- Other custom RC airplane servo installations
Specifications
| Brand | Secraft |
| Model | M-Type |
| Product Type | Side Servo Mount |
| Size | Medium |
| Material | 6061-T6 aluminum |
| Finish | Blue anodized |
| Weight | 0.74 oz (21 g) |
| SKU | SE-SSM-601 |

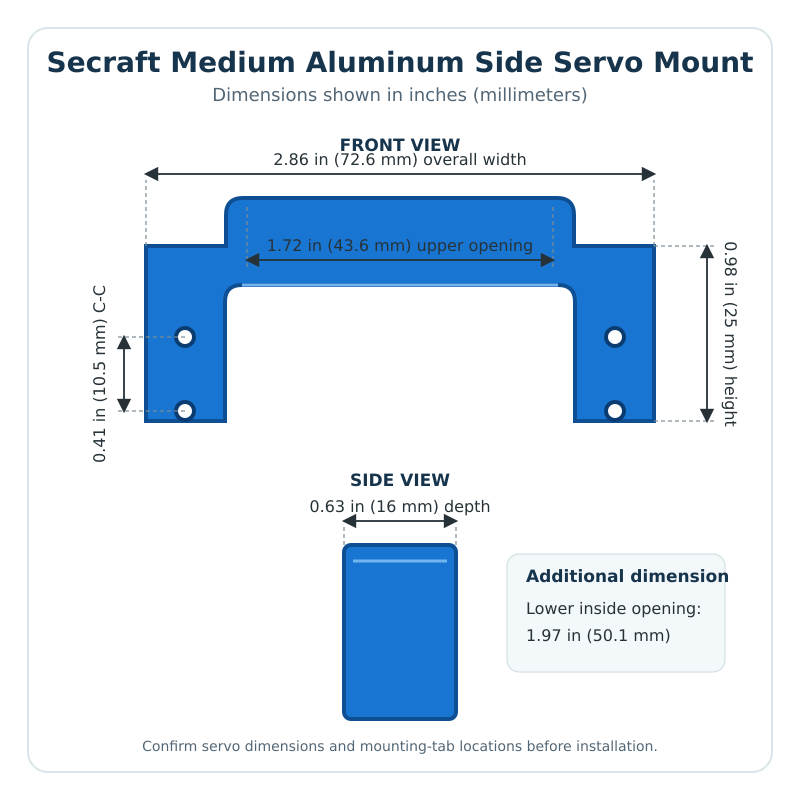

Mount Dimensions
| Overall Width | 2.86 in (72.6 mm) |
| Body Width, Top View | 2.62 in (66.6 mm) |
| Upper Inside Opening | 1.72 in (43.6 mm) |
| Lower Inside Opening | 1.97 in (50.1 mm) |
| Overall Height | 0.98 in (25 mm) |
| Mounting-Hole Spacing | 0.41 in (10.5 mm), center to center |
| Mount Depth | 0.63 in (16 mm) |
Package Includes
- 1 Secraft M-Type aluminum side servo mount in blue
- Mounting bolts
Servo is not included.
Compatibility Notice: This is the Secraft M-Type mount. Secraft specifically identifies the JR DS8711 and DS8911 servos as compatible. Servo cases, mounting tabs, and mounting-hole locations can vary, so compare your servo with the listed mount dimensions before ordering.
