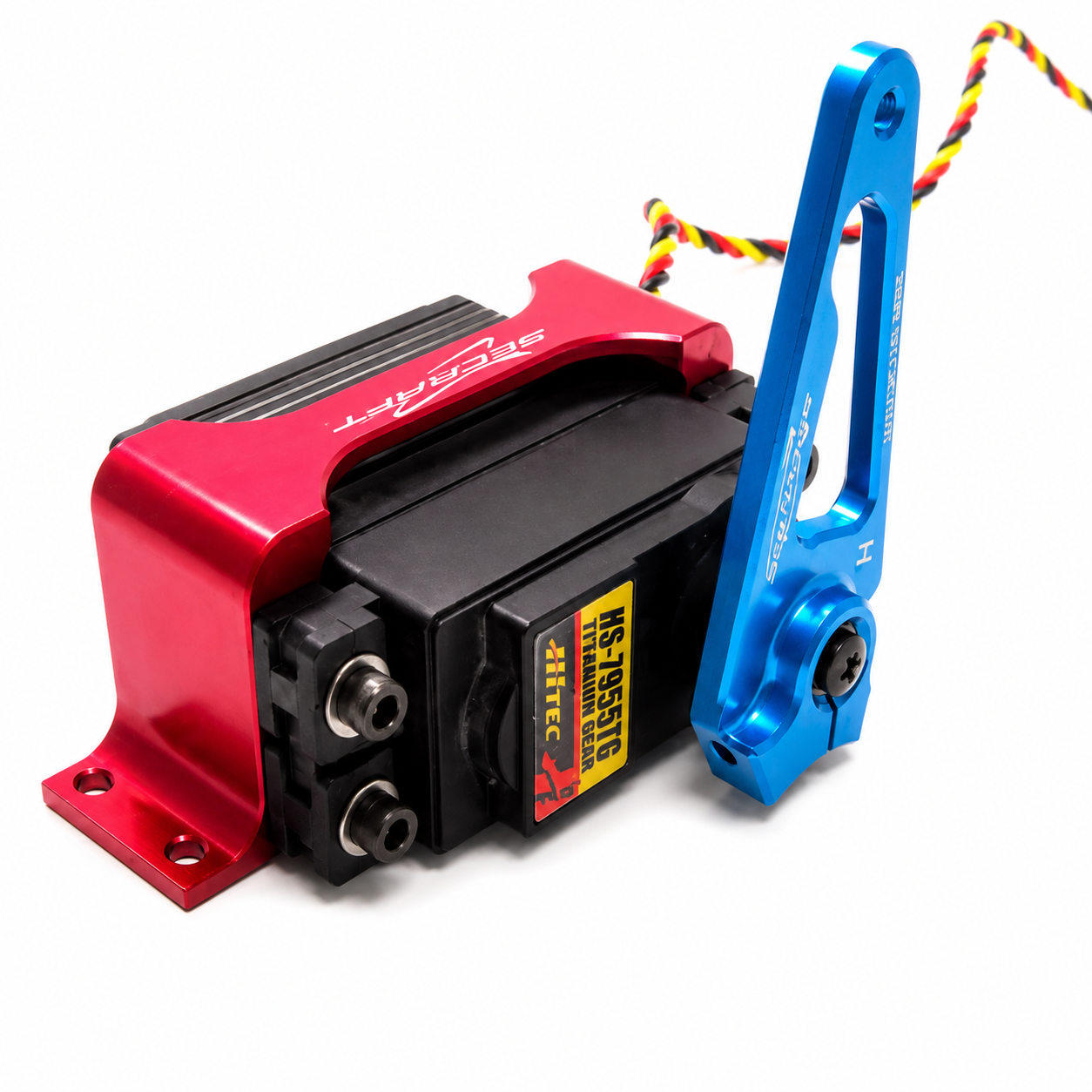

Secraft Side Servo Mount Small – Aluminum (Red)

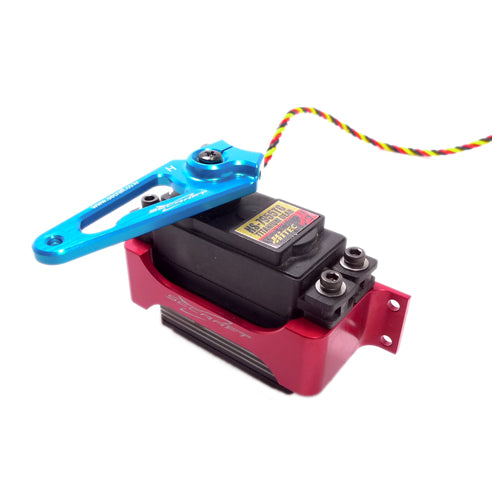

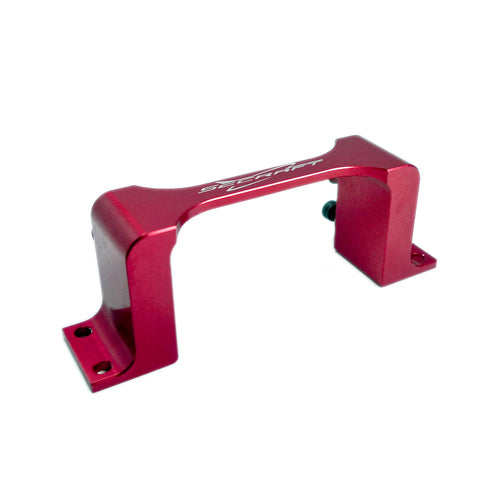

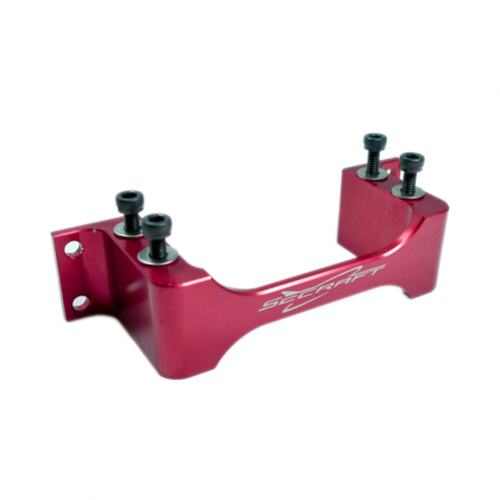

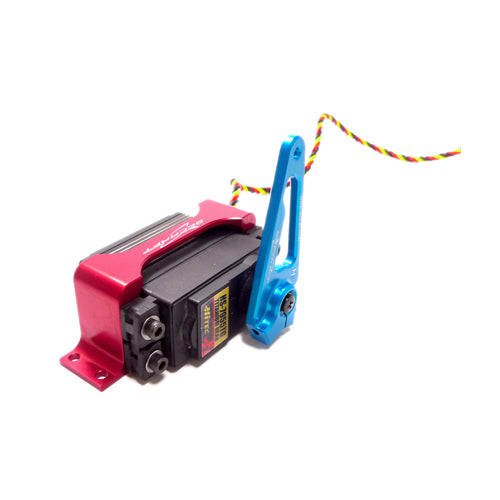

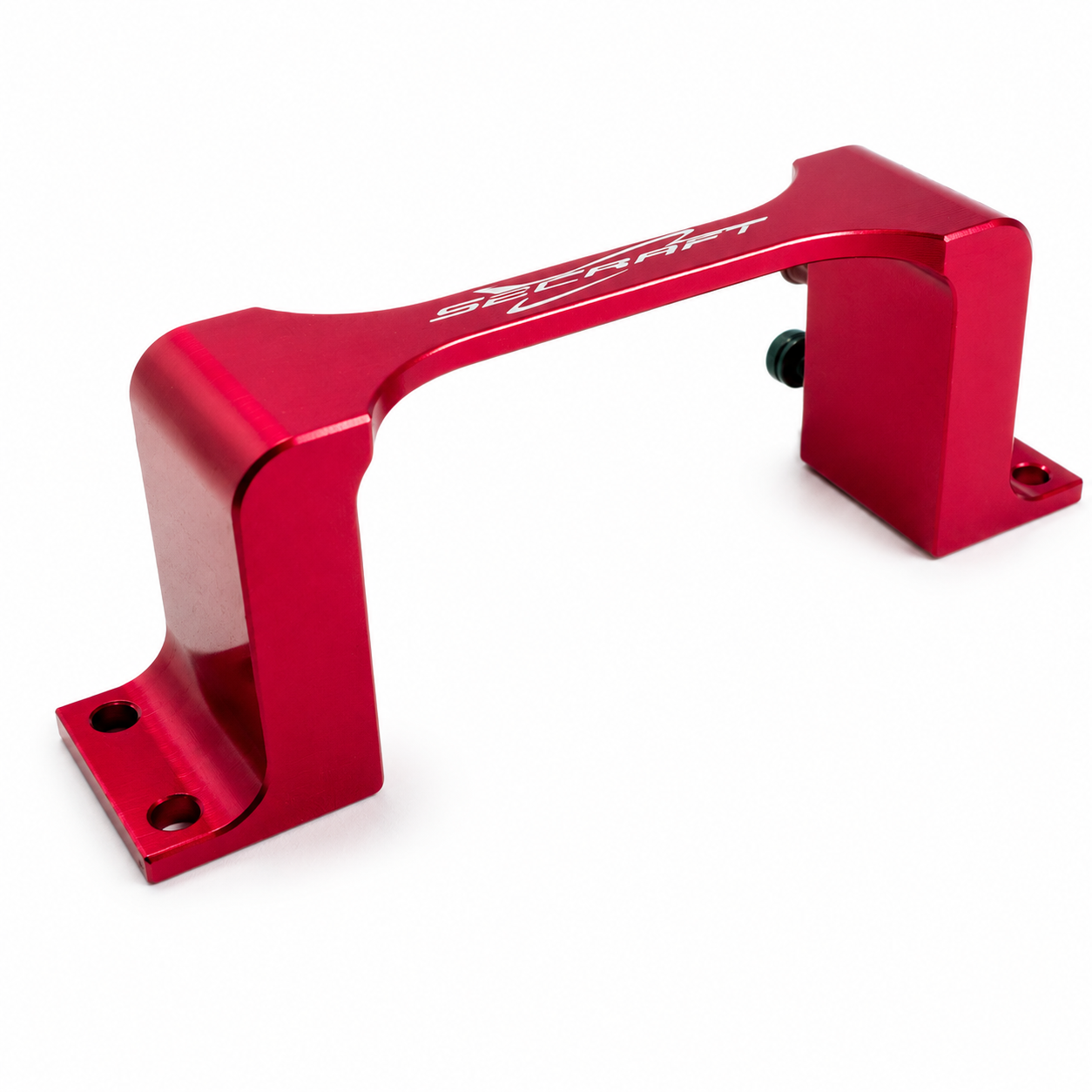

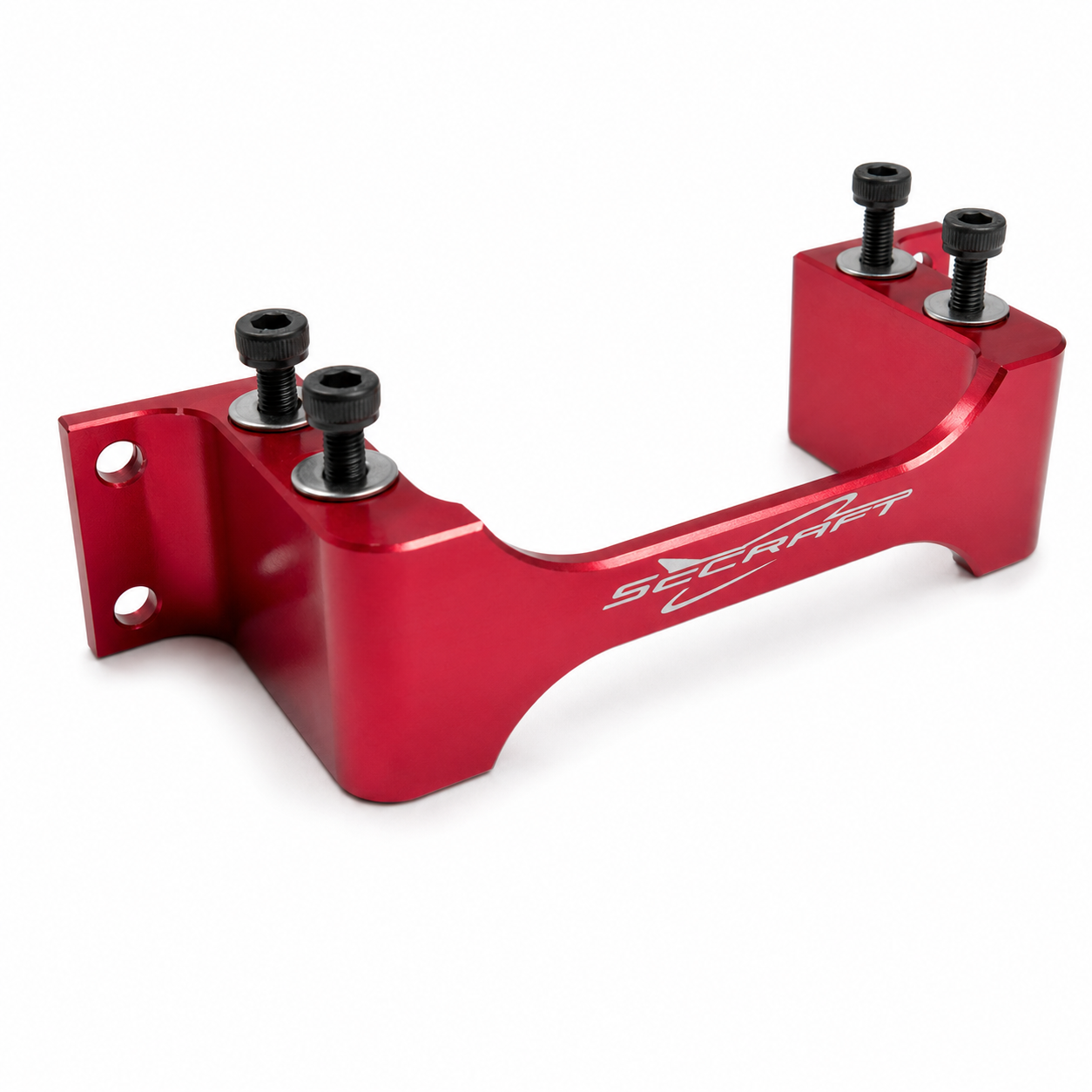

Install your servo quickly and securely with the Secraft Small Side Servo Mount. Precision CNC machined from aircraft-grade 6061-T6 anodized aluminum, this mount provides a rigid, lightweight solution for mounting servos directly to internal rails without the need to fabricate traditional hardwood servo trays.
Perfect for throttle, choke, aileron, flap, and other control applications, the side-mount design allows the servo to remain easily accessible for maintenance or replacement while maintaining a clean, professional installation.
🚀 Target Applications:
- Precision throttle and choke servo linkages on gas-powered airframes
- Flush side-mounting configurations for high-load aileron, elevator, and flap controls
- Giant scale aircraft, IMAC aerobatic models, and high-performance turbine jets
- Any advanced installation where raw wood trays are replaced with rigid metal tracking rails
Why Choose a Side Servo Mount?
Traditional servo installations often require custom hardwood trays that permanently trap the servo inside the aircraft. The Secraft Side Servo Mount provides a stronger, cleaner alternative by mounting directly to the aircraft's internal rails. This design simplifies installation, improves serviceability, and allows the servo to be removed quickly if maintenance is ever required. It's an excellent solution for any application where a professional, flex-free servo installation is desired.

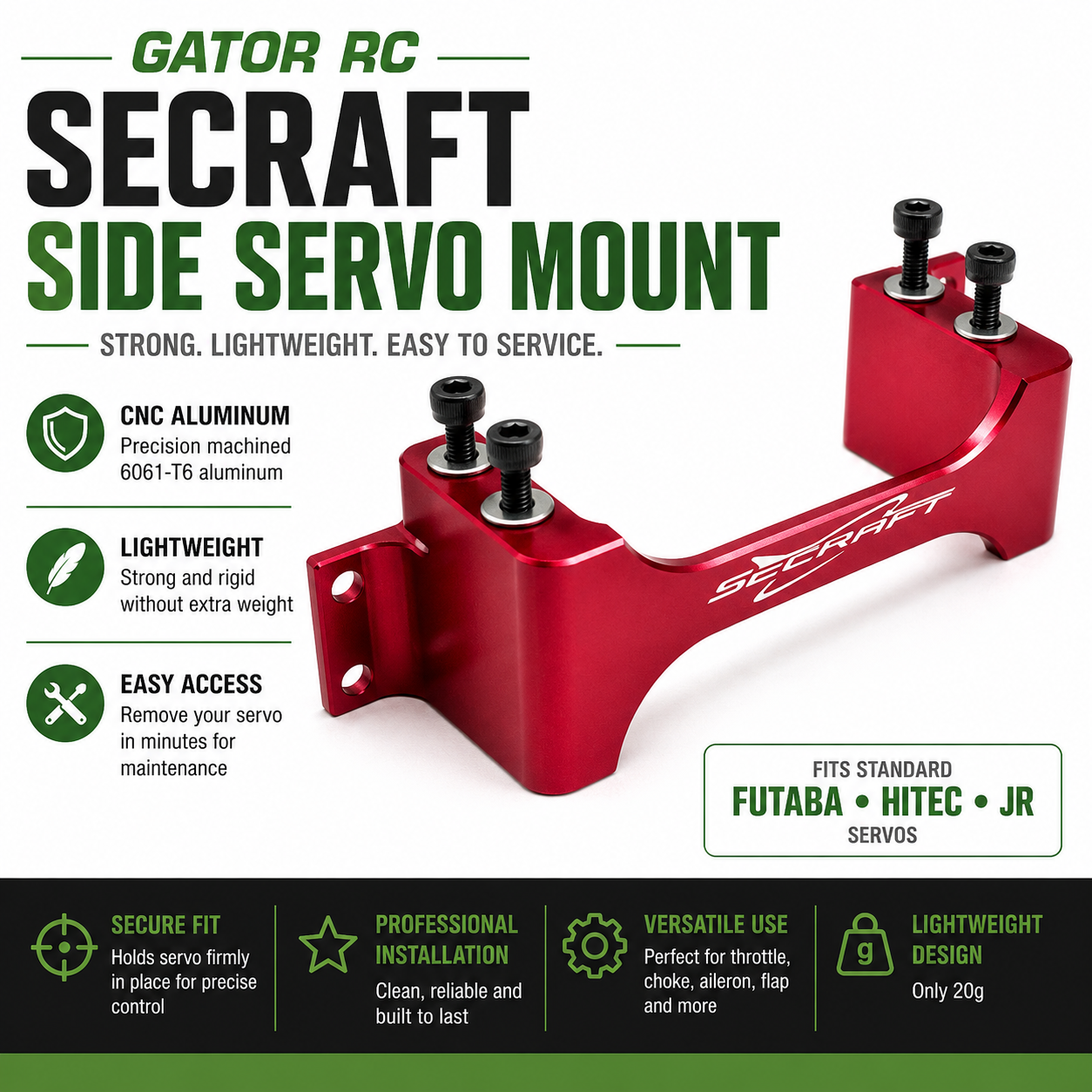

Key Features
- 6061-T6 Aluminum Core: CNC machine-milled from top-grade aircraft aluminum alloy to eliminate the flex and structural degradation common with traditional wood frames.
- No-Hassle Slide Integration: Completely eliminates the hours spent measuring, cutting, and fabricating custom hardwood blocks or secondary plywood trays.
- Rapid Access Servicing: Modular mounting brackets permit swift, effortless servo removal for bench testing or equipment replacement during routine checkups.
- Corrosion-Proof Shell: Features a brilliant, highly durable red anodized finish that shields raw alloy surfaces against raw fuel, smoke oil, and flight-line moisture.
- Universal Standard Fitment: Broad mechanical track spacing cleanly matches standard-sized case footprints across all major electronics manufacturers.
⚙️ Brand & Size Compatibility:
Guaranteed drop-in fitment for standard-sized case footprints from all major brands:
- Futaba & Hitec Standard Case Dimensions
- Savox & JR Standard Case Dimensions
- MKS Standard Case Dimensions (e.g., HBL599 / HV777 size cases)

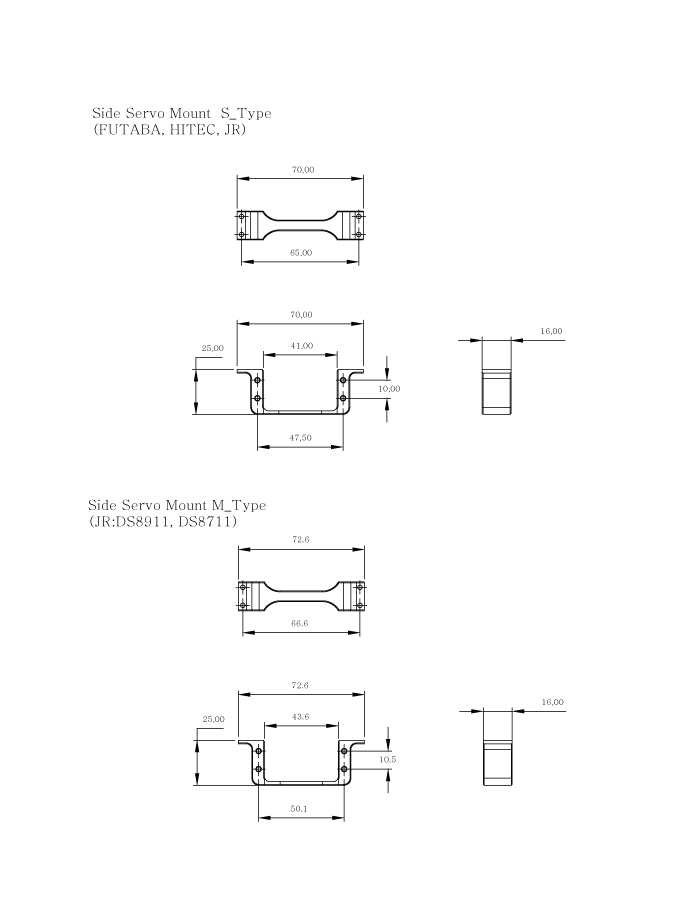

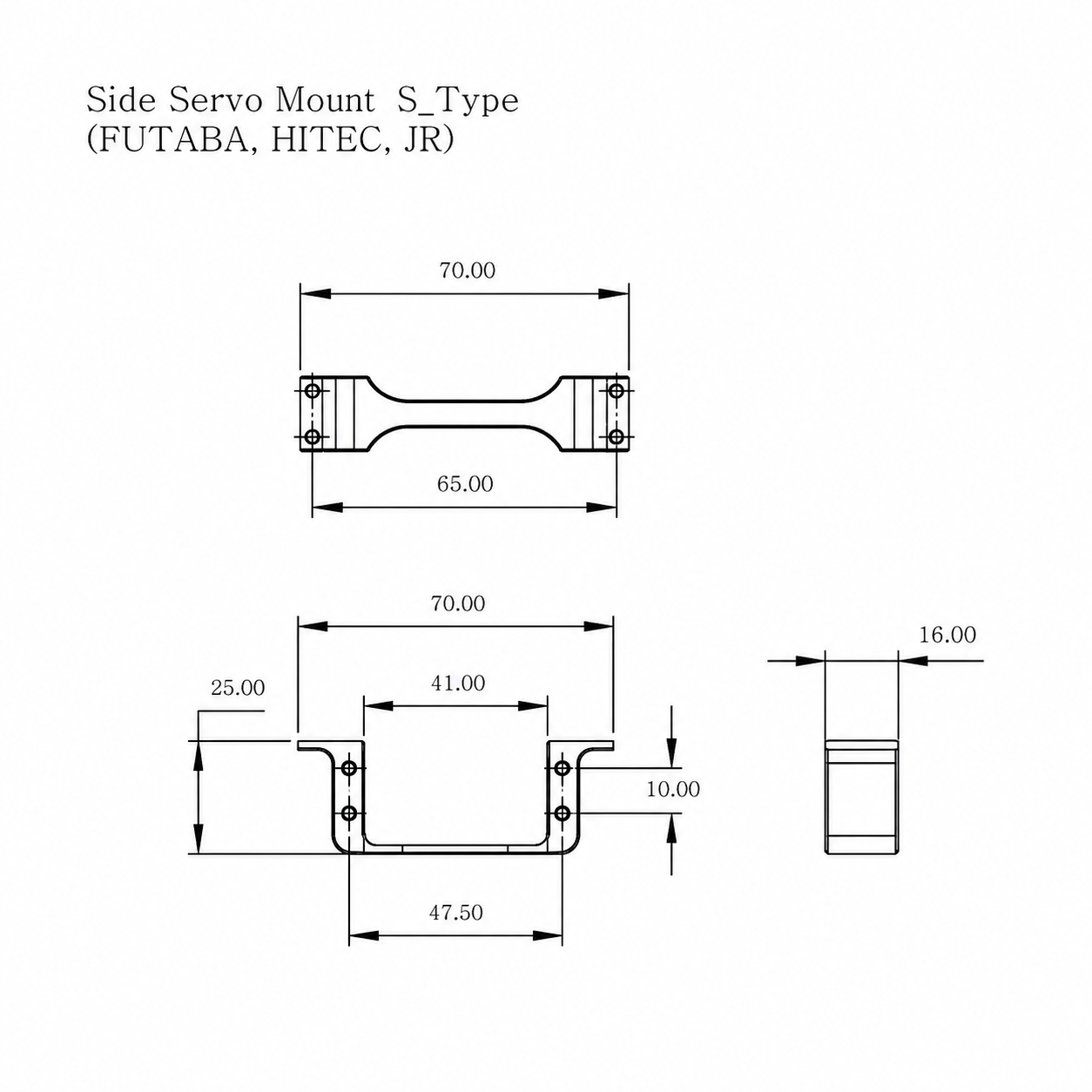

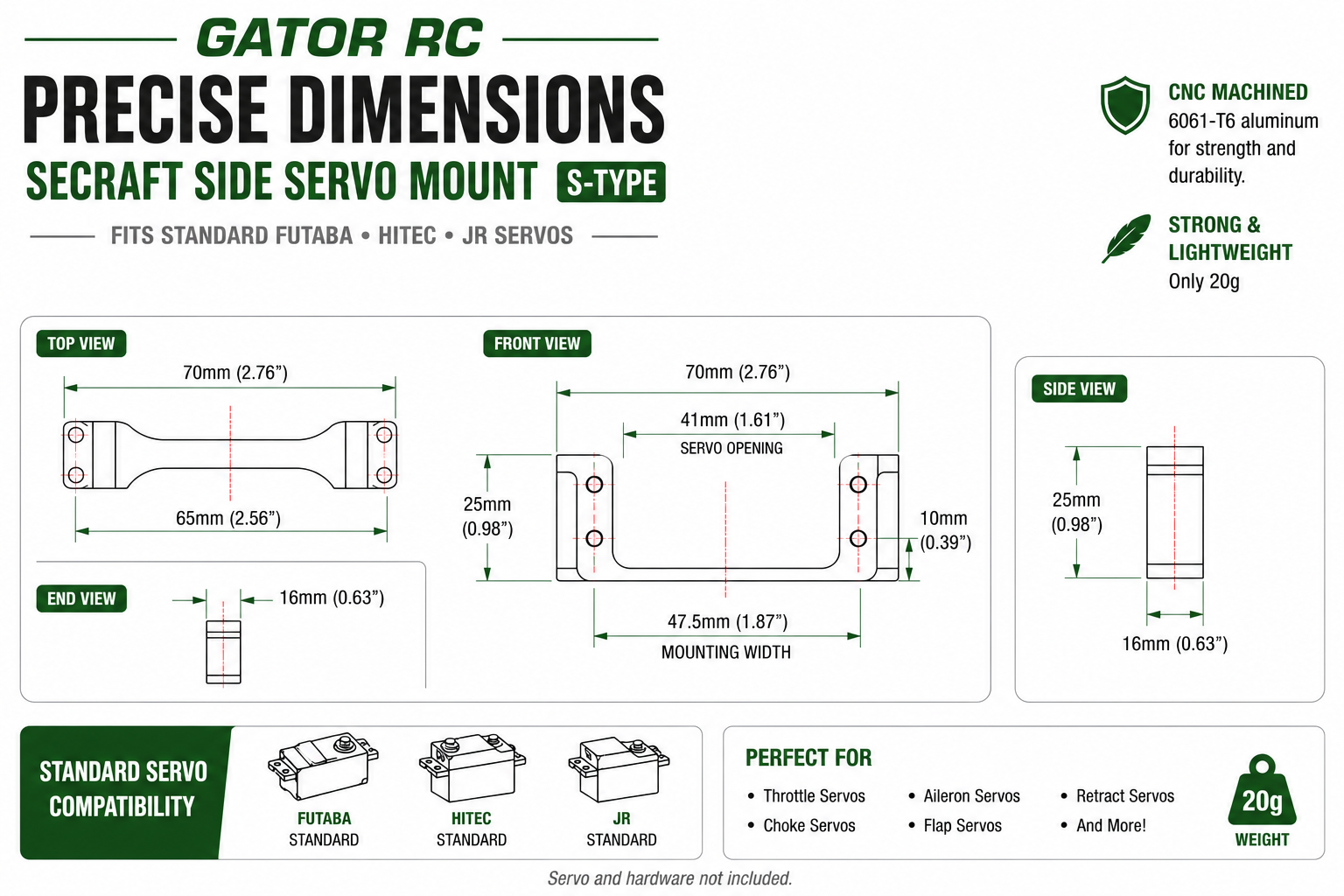

View Technical Specifications
| Brand: | Secraft |
| Mount Type: | Small Side Servo Mount (Standard Case Profile) |
| Material Core Metallurgy: | 6061-T6 CNC-Machined Anodized Aluminum |
| Hardware Included: | High-Tensile Metal-to-Metal Mounting Bolts |
| Anodized Color Casing: | Vibrant Red Finish |
| Servo Included: | No (Brackets Only) |
| Physical Unit Weight: | 20g (Total Assembly Mass) |
📦 Package Includes:
- 1 x Secraft Small Aluminum Side Servo Mount Assembly (Red)
- 1 x Complete Machined Mounting Bolt Hardware Kit

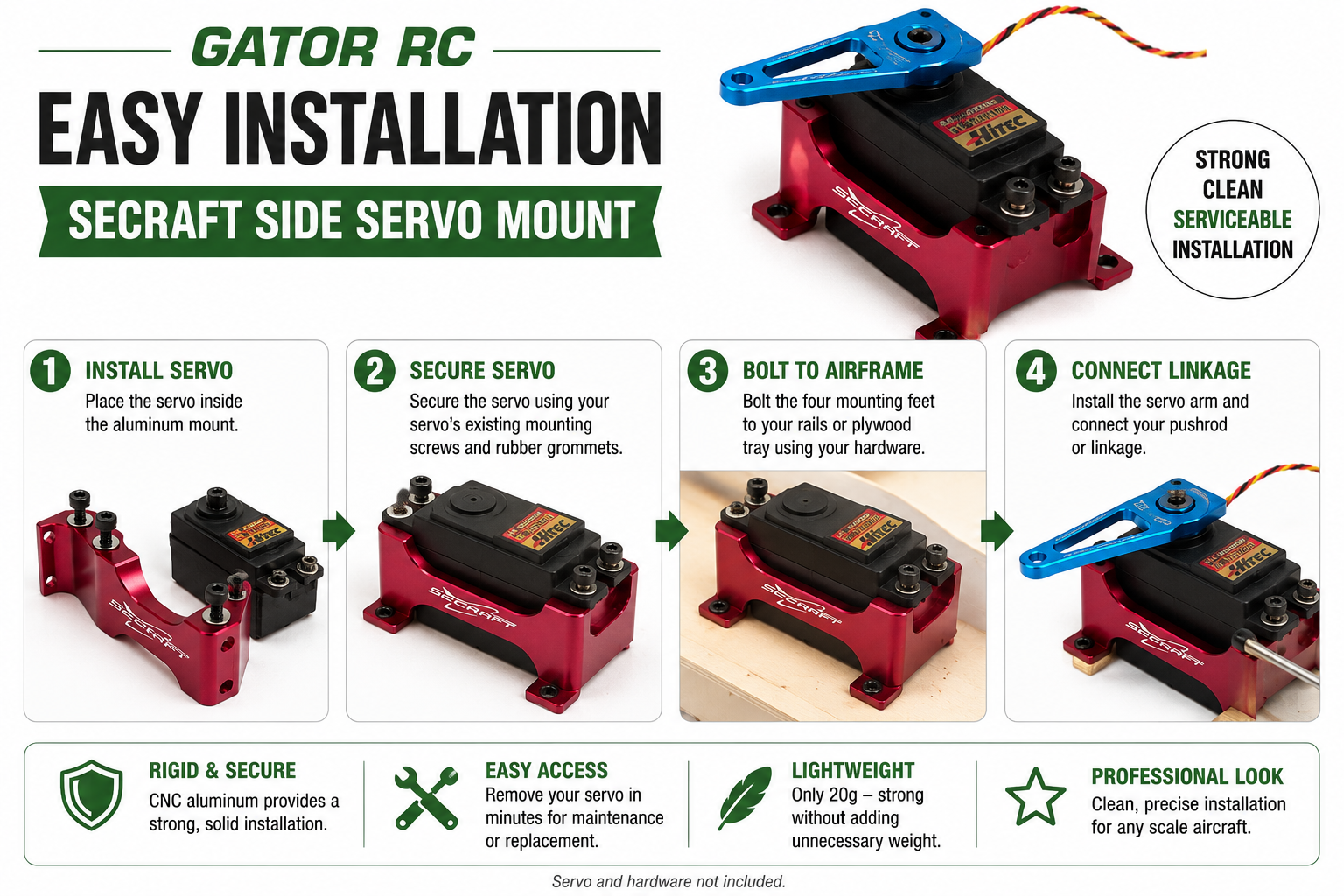

💡 Modeler’s Tips & Installation Guide

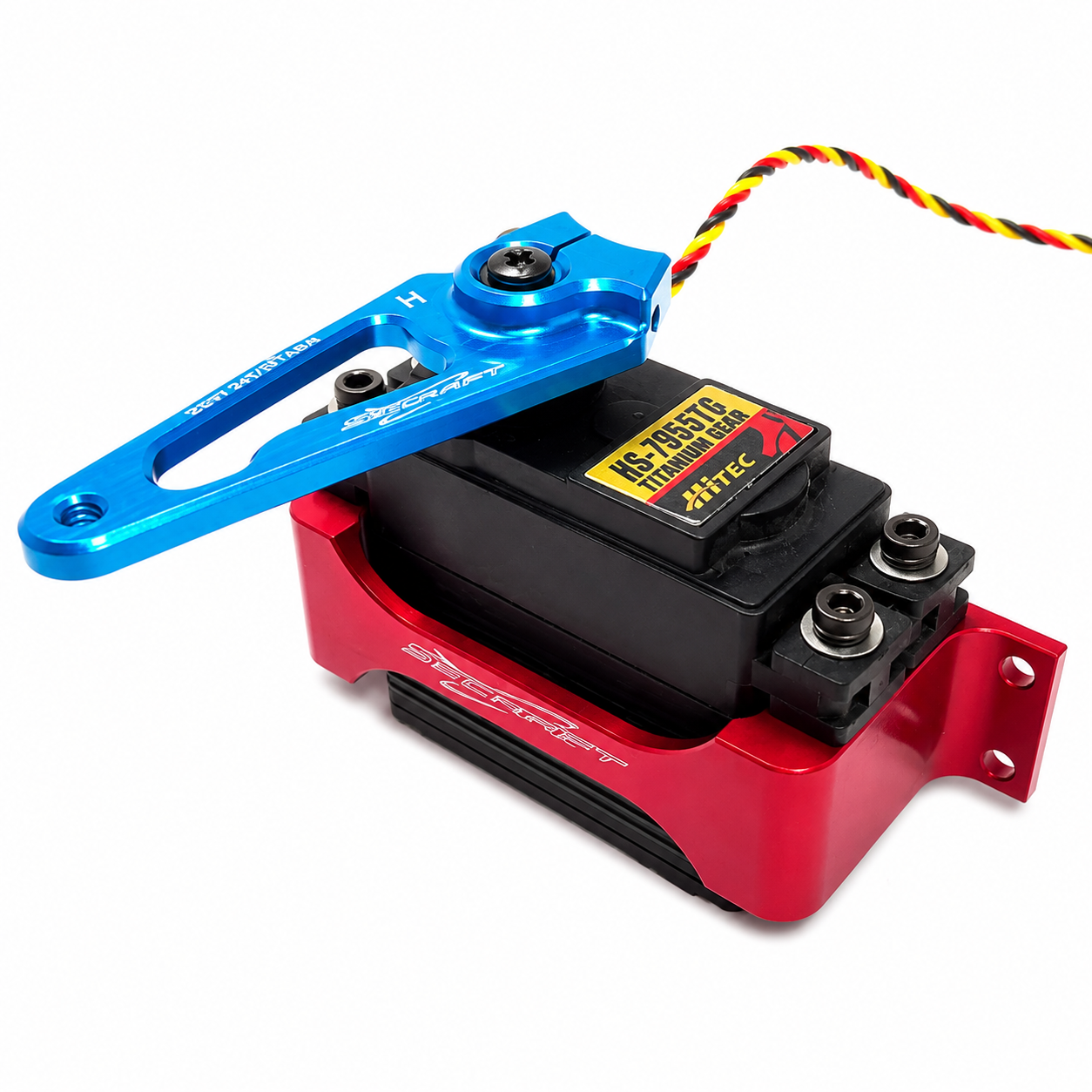

Mount the aluminum side brackets securely to the aircraft's internal plywood rails using high-quality wood fasteners or matching micro-bolts. Slip your servo into the bracket core and install the supplied metal hardware pins. To ensure optimal tracking performance and minimize servo gear wear, verify that your servo arm output spline operates entirely parallel to your pushrod lines. For clean, flex-free surface tracking, consider pairing this bracket setup with our premium Secraft M3 Wire Tensioner Sets and applying a drop of medium thread locker to all metal-to-metal connections before flight.
