Secraft Side Servo Mount V2 – Aluminum (Red)

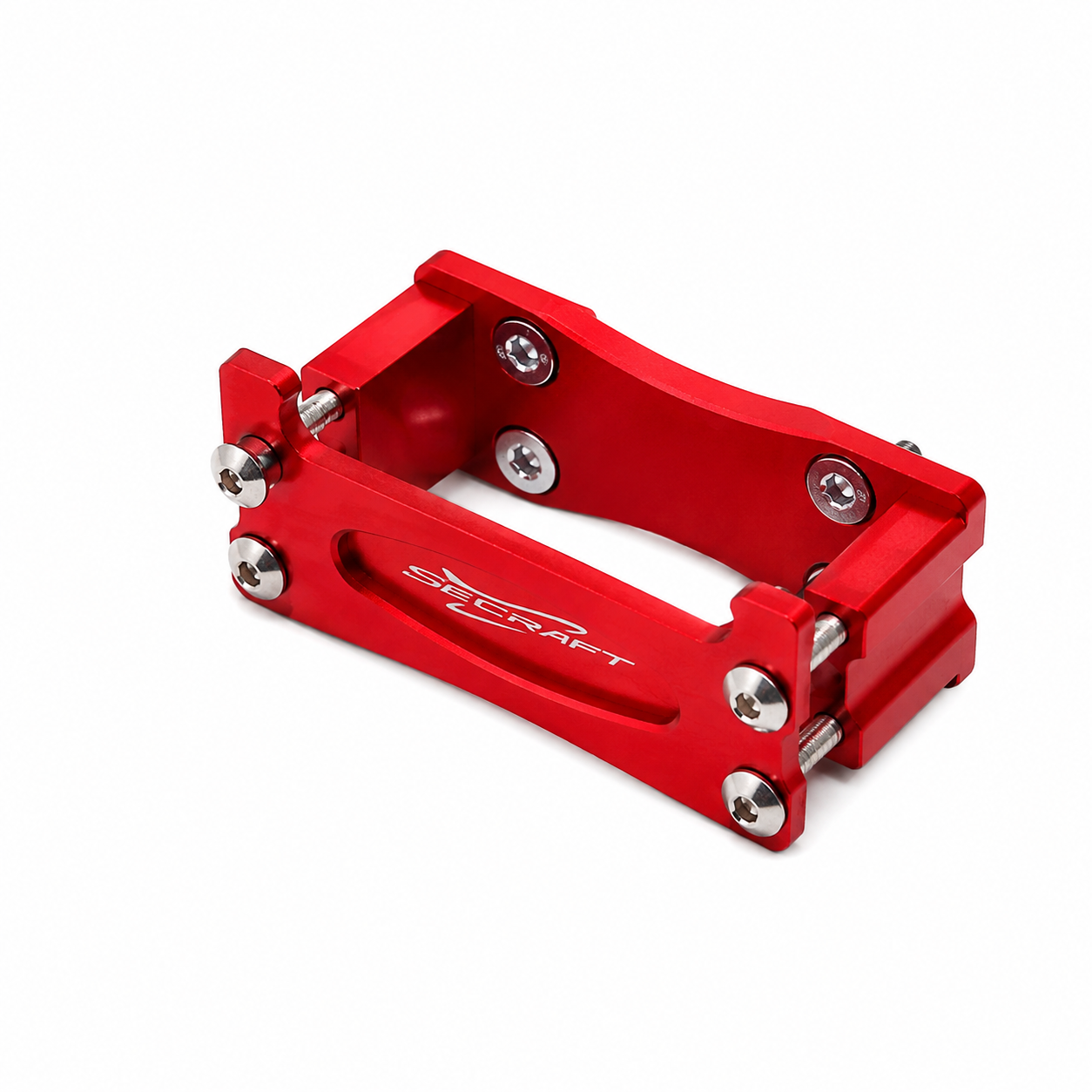

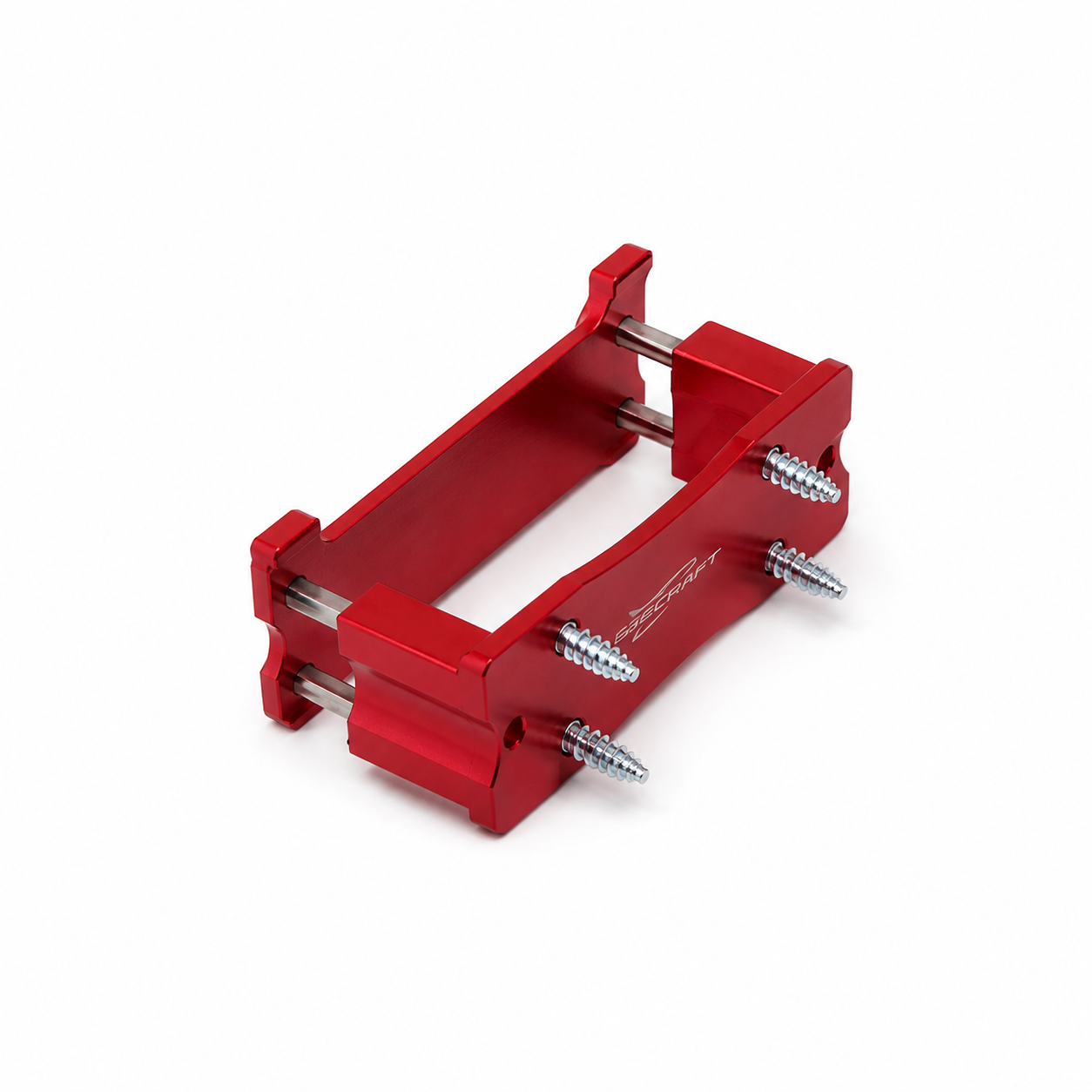

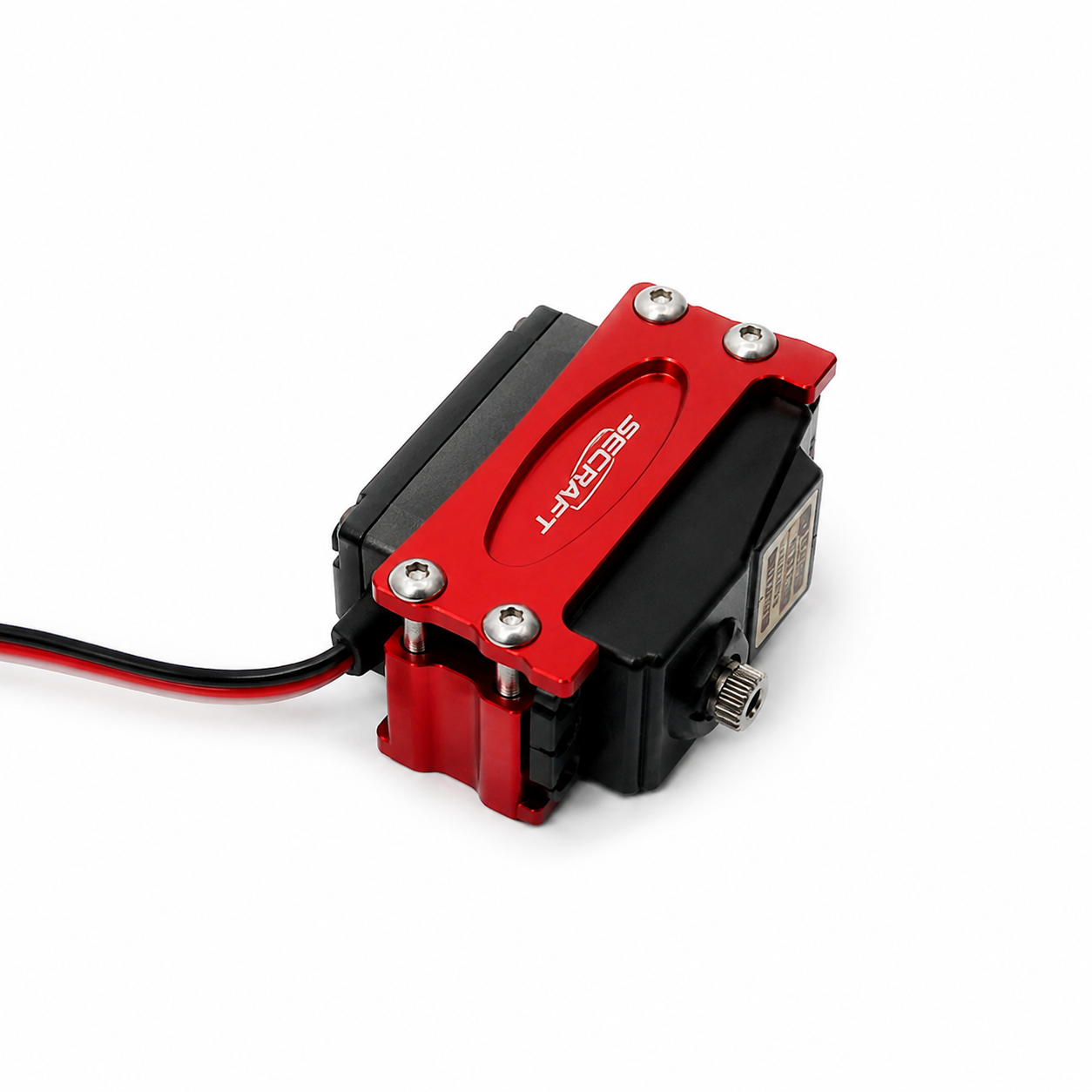

The Secraft Side Servo Mount V2 provides a compact, rigid, and professional way to mount standard-size servos in RC aircraft. CNC machined from aircraft-grade 6061-T6 anodized aluminum, this mount creates a strong servo installation while keeping the servo easy to access for service or replacement.
The V2 design is ideal for pilots who want a clean hard-mount servo installation without fabricating a traditional plywood servo tray. It is well suited for throttle, choke, aileron, flap, retract door, and other control applications where strength, precision, and serviceability are important.
🚀 Target Applications:
- Precision throttle and choke servo linkages on gas-powered airframes
- Flush side-mounting configurations for high-load aileron, elevator, and flap controls
- Landing gear retract doors and auxiliary scale system actuators
- Electric-powered models, precision aerobatic aircraft, and turbine-powered airplanes
Why Choose the Secraft Side Servo Mount V2?

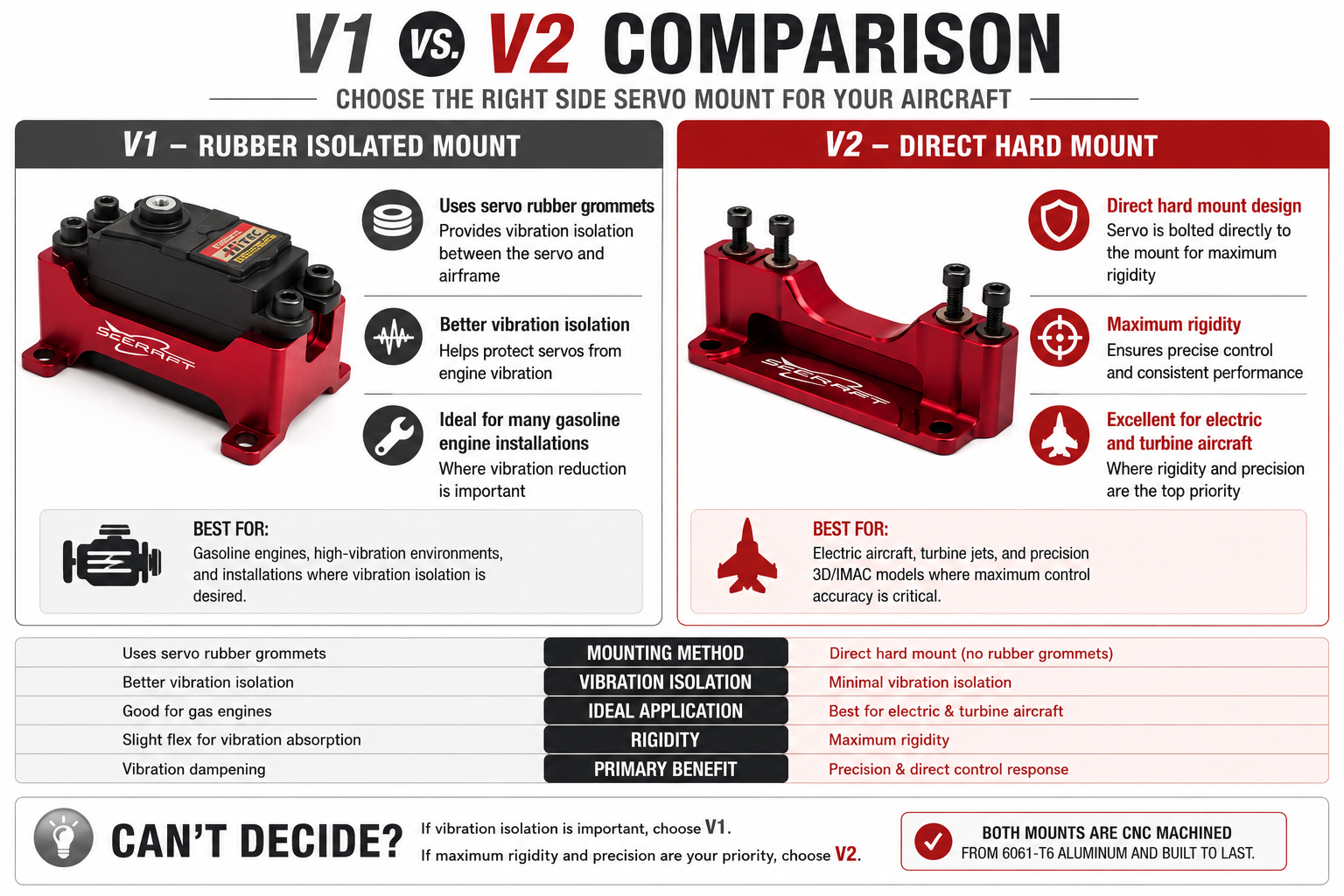

The Secraft Side Servo Mount V2 gives RC pilots a stronger and cleaner alternative to traditional plywood servo tray installations. The aluminum direct-mount design provides excellent rigidity, while the compact footprint helps fit servos into tight spaces. Because the servo remains easily accessible, maintenance and replacement are much faster than with many built-in tray-style installations where vibration isolation is less critical than maintaining precise control geometry under heavy load.
Key Features
- 6061-T6 Aluminum Core: CNC machine-milled from top-grade aircraft aluminum alloy to eliminate the flex and structural degradation common with traditional wood frames.
- Rigid V2 Direct-Mount Layout: Heavy-duty four-point mounting structure anchors securely to isolate lateral motor flex under extreme torque loading paths.
- Heavy-Duty 4mm Plates: Thick 4mm side plate walls provide unmatched threading strength and zero mechanical deflection under high dynamic stress.
- No-Hassle Slide Integration: Completely eliminates the hours spent measuring, cutting, and fabricating custom hardwood blocks or secondary plywood trays.
- Corrosion-Proof Shell: Features a brilliant, highly durable red anodized finish that shields raw alloy surfaces against raw fuel, smoke oil, and flight-line moisture.
- Universal Standard Fitment: The 40.5mm inner opening cleanly matches standard-sized case footprints across all major electronics manufacturers.
⚙️ Brand & Size Compatibility:
Guaranteed drop-in fitment for standard-sized case footprints from all major brands:
- Standard-size Futaba Servos
- Standard-size Hitec Servos
- Standard-size JR Servos
- Standard-size Savox Servos
- Other standard-size servos with compatible mounting dimensions
View Technical Specifications
| Brand / Version: | Secraft / V2 |
| Material Core Metallurgy: | 6061-T6 CNC-Machined Anodized Aluminum |

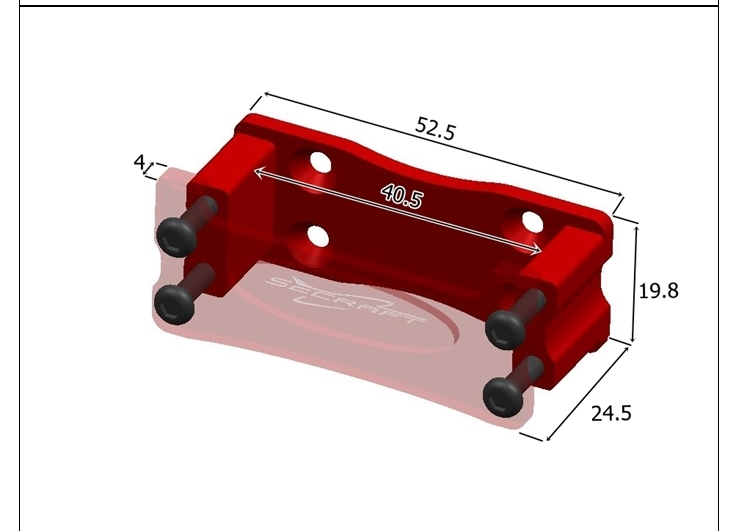

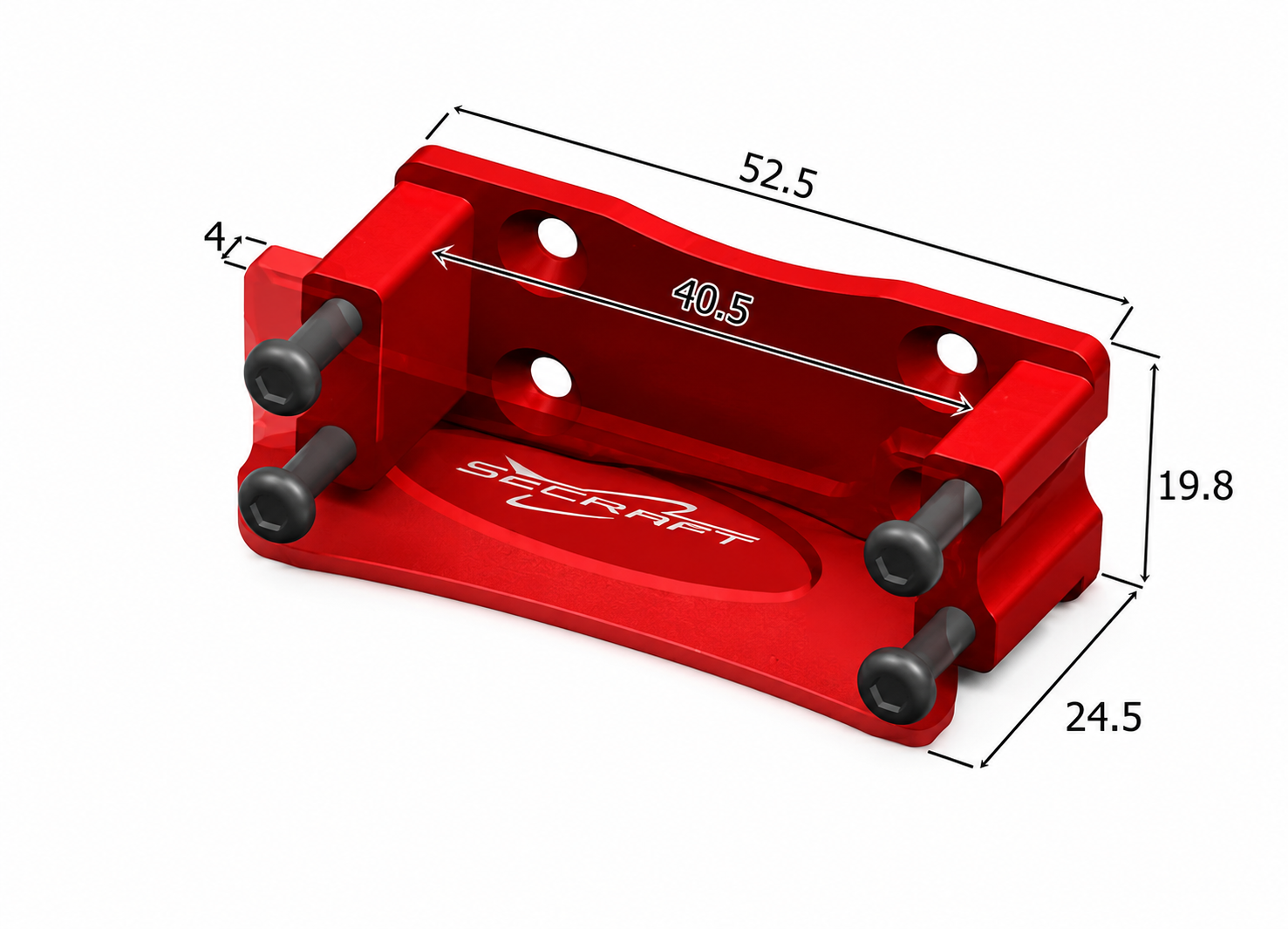

| Overall Dimensions (L x W x H): | 52.5 x 24.5 x 19.8 mm (2.07 x 0.96 x 0.78 in) |
| Inner Servo Opening: | 40.5mm (1.59 in) |

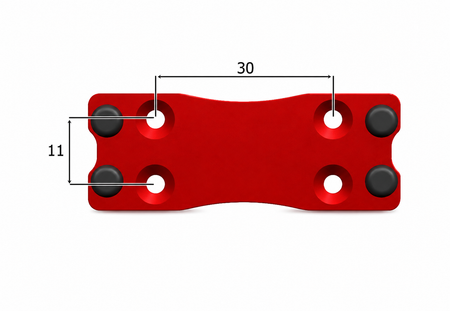

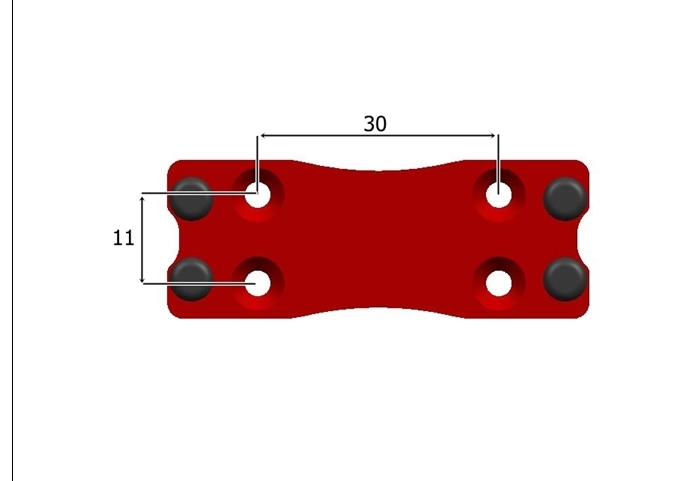

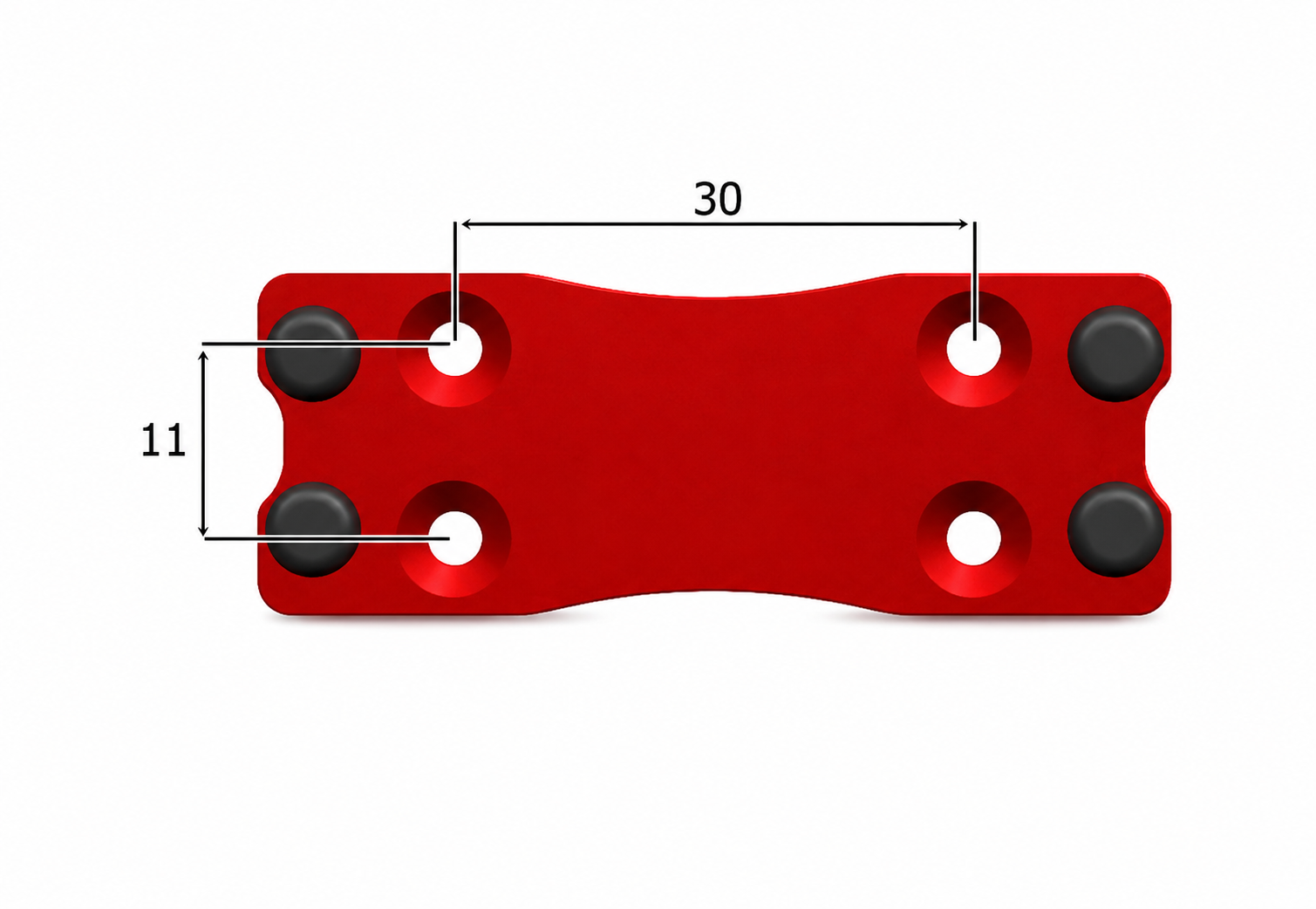

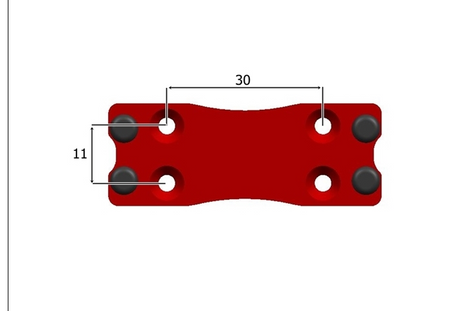

| Mounting Hole Spacing: | 30mm x 11mm (1.18 in x 0.43 in) |
| Side Plate Thickness: | 4mm (0.16 in) |
| Hardware: | Mounting bolts included |
| Anodized Color Casing: | Vibrant Red Finish |
| Physical Unit Weight: | 20g (0.71 oz) |
📦 Package Includes:
- 1 × Secraft Side Servo Mount V2 Assembly (Red)
- 1 × Complete Machined Mounting Bolt Hardware Kit
💡 Modeler’s Tips & Installation Guide

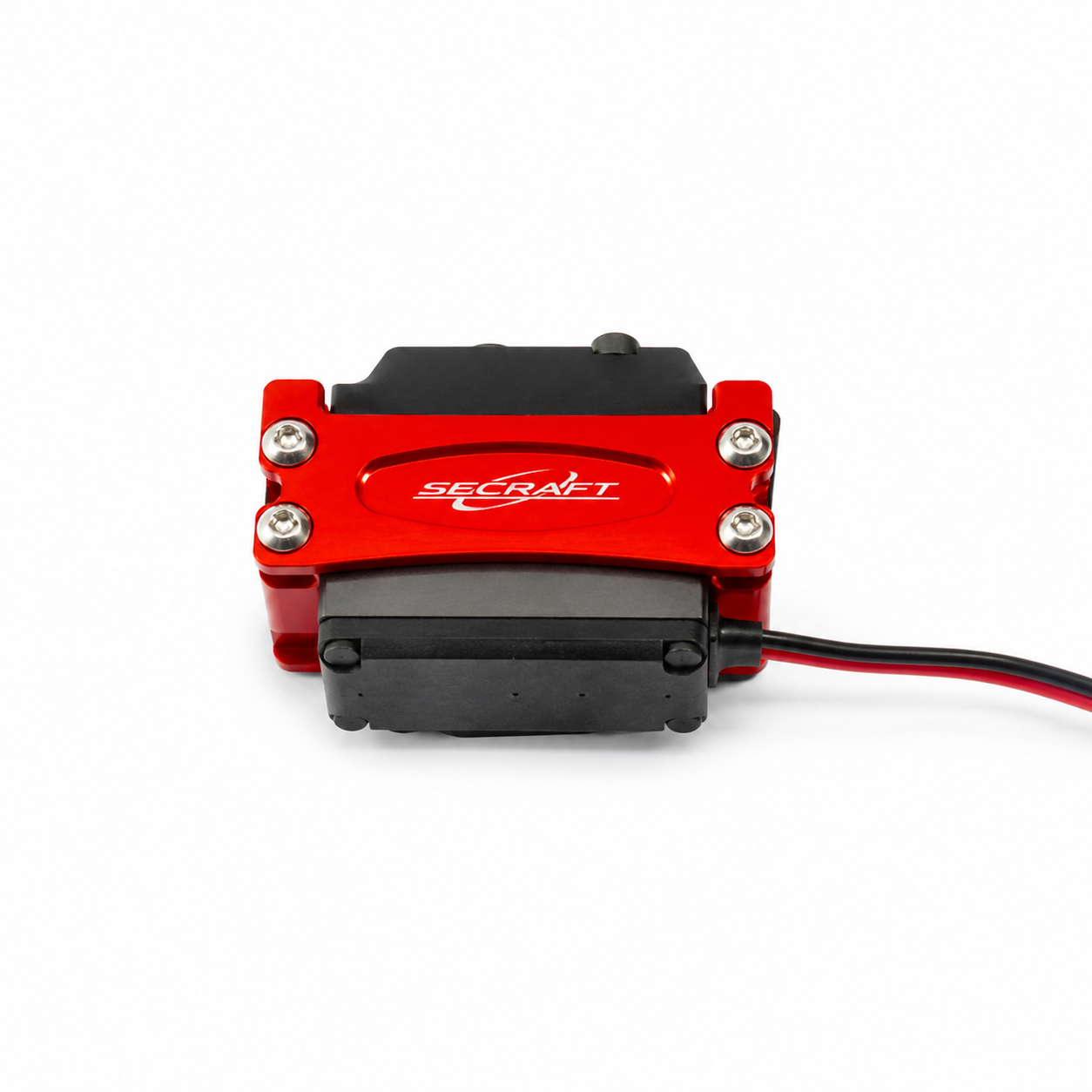

Place the servo into the V2 side mount and secure it down tightly using the included mounting bolts. Position the mount inside your aircraft and verify that your servo output spline operates entirely parallel to your pushrod lines before fastening it to the airframe structure via the 30mm x 11mm holes. Apply thread-locking compound to all metal-to-metal fasteners. Connect the linkage and check for smooth, bind-free servo movement across its full travel. For clean, flex-free surface tracking, consider pairing this bracket setup with our premium Secraft M3 Wire Tensioner Sets and applying a drop of medium thread locker before flight.
