Secraft

SECRAFT Full Straight Servo Arm, 2.5" (63mm), Hitec 24T, M3 Aluminum, Blue

In stock
SKU: SE-SA-233
(0)
$15.00

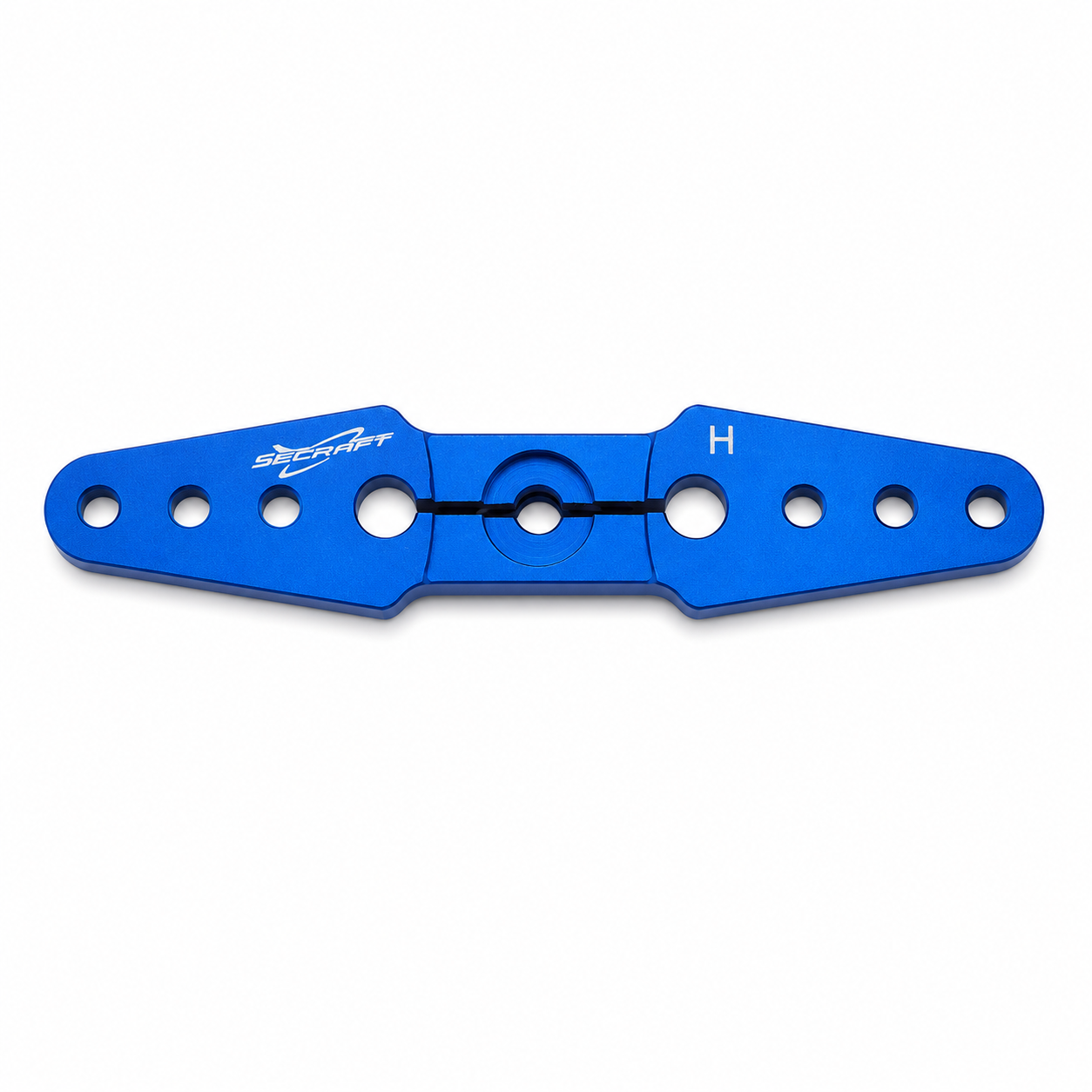

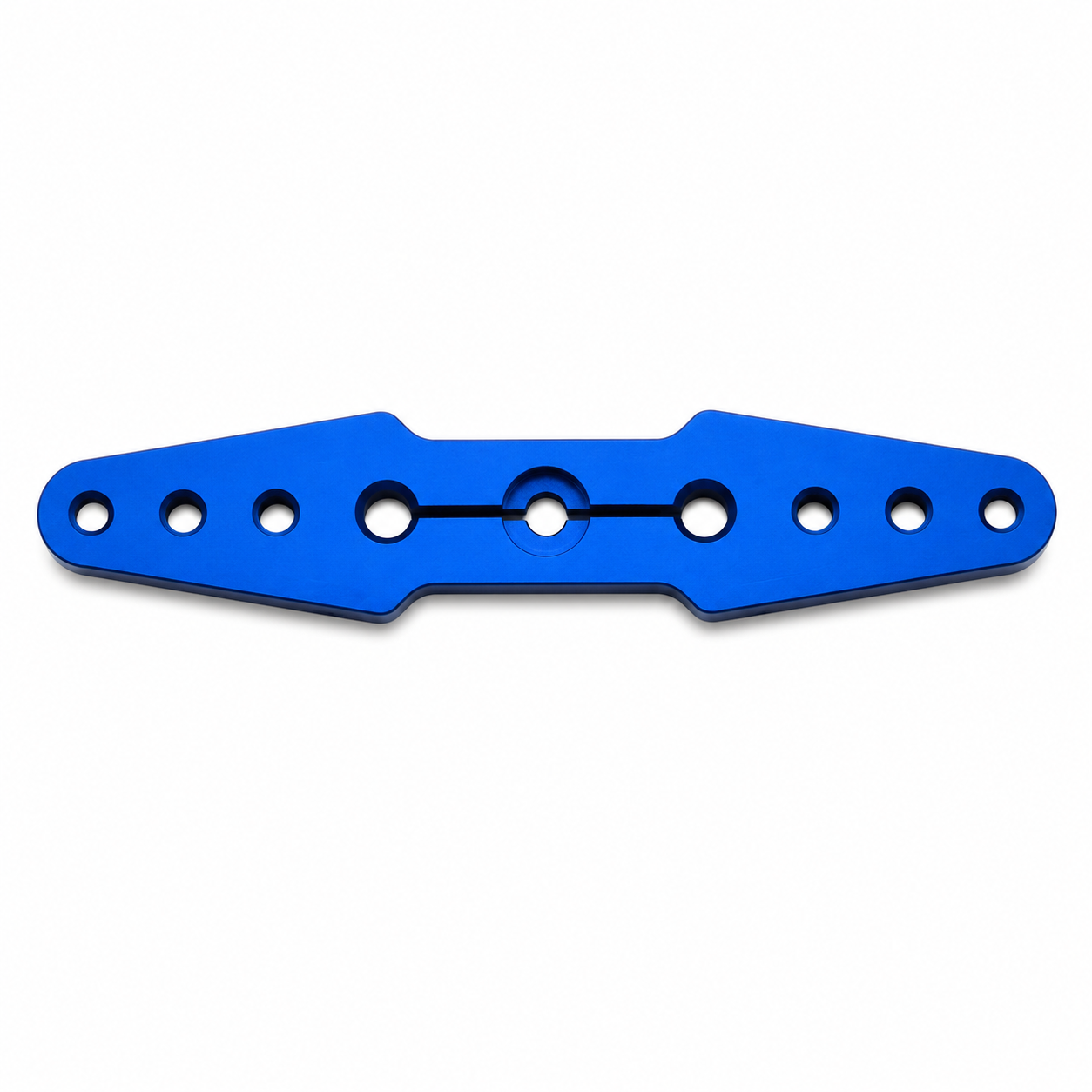

SECRAFT Full Straight Servo Arm, 2.5" (63mm), Hitec 24T, M3 Aluminum, Blue

Designed for demanding giant scale aircraft, the SECRAFT Full Straight Servo Arm delivers exceptional strength, rigidity, and precision for large control surfaces. Precision CNC machined from aircraft-grade 6061-T6 aluminum and finished in a durable blue anodized coating, this full-width servo arm is ideal for high-load rudder applications where dependable control is critical.

The 2.5-inch (63mm) arm provides excellent leverage for large rudder installations while maintaining outstanding rigidity under heavy aerodynamic loads. Designed specifically for Hitec 24-tooth spline servos, it accepts M3 linkage hardware for secure, slop-free connections.

Important Compatibility: This servo arm is designed for standard Hitec 24T spline servos. Hitec 8XXX series servos use the Futaba 25T spline and are NOT compatible with this servo arm.

Features

  • Precision CNC machined from aircraft-grade 6061-T6 aluminum
  • Full-width design for maximum rigidity
  • Blue anodized finish for corrosion resistance and durability
  • Designed for Hitec 24-tooth spline servos
  • Compatible with M3 linkage hardware
  • Excellent for giant scale rudder applications
  • Lightweight construction with exceptional strength
  • Provides accurate, slop-free control

Specifications

  • Length: 2.50 in (63 mm)
  • Spline: Hitec 24 Tooth (24T)
  • Linkage Hardware: M3 (not included)
  • Material: CNC Machined 6061-T6 Aluminum
  • Finish: Blue Anodized
  • Weight: 6 g (0.21 oz)
  • Quantity: One (1) Servo Arm

Ideal Applications

  • Giant Scale Aircraft
  • Large Rudder Installations
  • IMAC Competition Aircraft
  • 3D Aerobatic Airplanes
  • Large Gas and Turbine Models

Installation Tips

  • Follow your aircraft manufacturer's recommended control geometry.
  • Apply removable thread-locking compound to all metal-to-metal fasteners.
  • Whenever possible, install the linkage ball on the underside of the servo arm for improved linkage geometry.
  • Verify full control throw without servo binding before flight.
