SECRAFT Servo Arm V1, 1.25" (31.75mm), Hitec 24T, #4-40 Aluminum, Blue

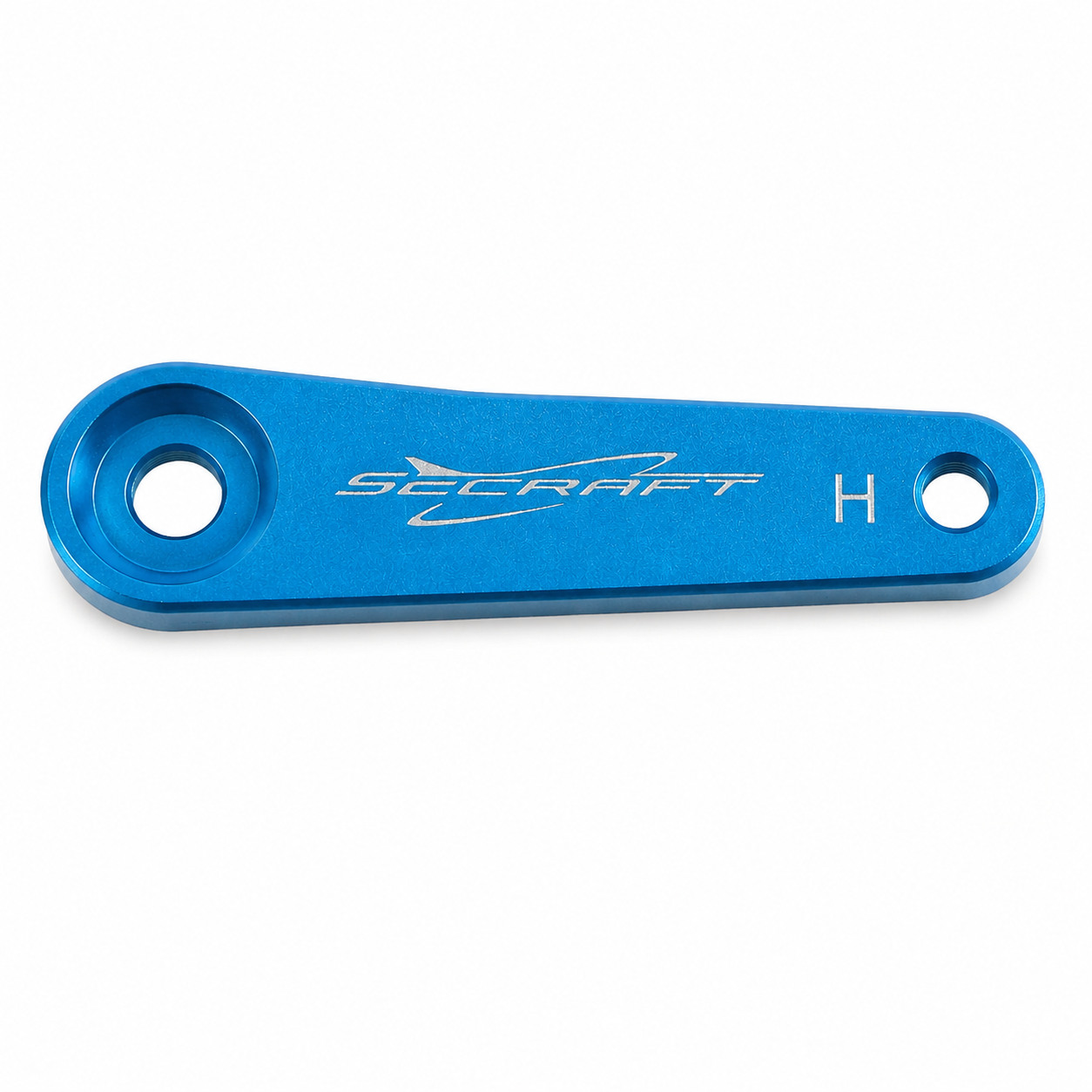

SECRAFT Servo Arm V1 – 1.25" (31.75mm) for Hitec 24T Servos

Upgrade your aircraft's control system with the precision and strength of the SECRAFT V1 Aluminum Servo Arm. CNC machined from aircraft-grade 6061-T6 aluminum and finished with a durable blue anodized coating, this servo arm delivers exceptional rigidity, accurate control geometry, and long-lasting durability for demanding RC aircraft.

Unlike molded plastic servo arms that can flex under heavy aerodynamic loads, the SECRAFT aluminum design maintains precise control input for giant scale, IMAC, aerobatic, turbine, and high-performance sport aircraft.

Features

• Precision CNC machined from 6061-T6 aircraft aluminum
• Blue anodized finish for corrosion resistance and durability
• Designed specifically for Hitec 24-tooth spline servos
• 1.25 inch (31.75mm) arm length for excellent control geometry
• Compatible with #4-40 pushrods and linkage hardware
• Lightweight design without sacrificing strength
• Excellent for giant scale, IMAC, aerobatic and turbine aircraft

Specifications

• Brand: SECRAFT
• Version: V1
• Length: 1.25 in (31.75 mm)
• Spline: Hitec 24 Tooth
• Pushrod Size: #4-40
• Material: CNC Machined 6061-T6 Aluminum
• Finish: Blue Anodized
• Weight: Approximately 2.1 g (0.07 oz)
• Quantity: 1 Servo Arm
• Mounting Bolt: Not Included

Installation Tips

• Install using the servo manufacturer's recommended center position.
• Apply removable thread locker to all metal-to-metal fasteners.
• Whenever possible, mount the ball link on the underside of the servo arm to improve linkage geometry.
• Select the servo arm length recommended by your aircraft manufacturer to avoid excessive servo loading.
