Servo Arm, 1" x 2mm Hitec/24T/Blue, V1 (Secraft)

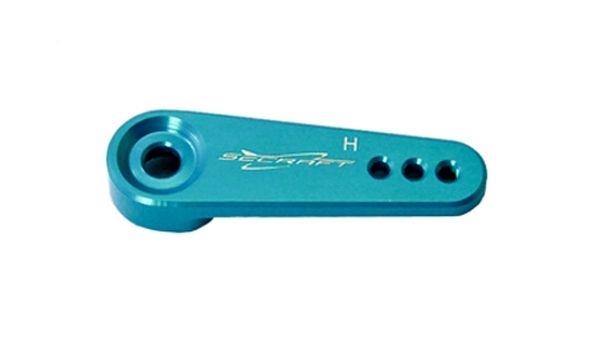

Servo Arm, 1" (25.4mm) x 2mm Hitec 24T Aluminum, Blue (Secraft V1)

Servo Arm, 1" (25.4mm) x 2mm Hitec 24T Aluminum, Blue (Secraft V1)

One of the greatest benefits of aluminum servo horns is the strength, rigidity & precision that aluminum has to offer.

Included: (1) Aluminum Servo Arm

Application:

Hitec 24 T Spline

Specifications:

Color: Blue
Horn Screw Size: 2mm

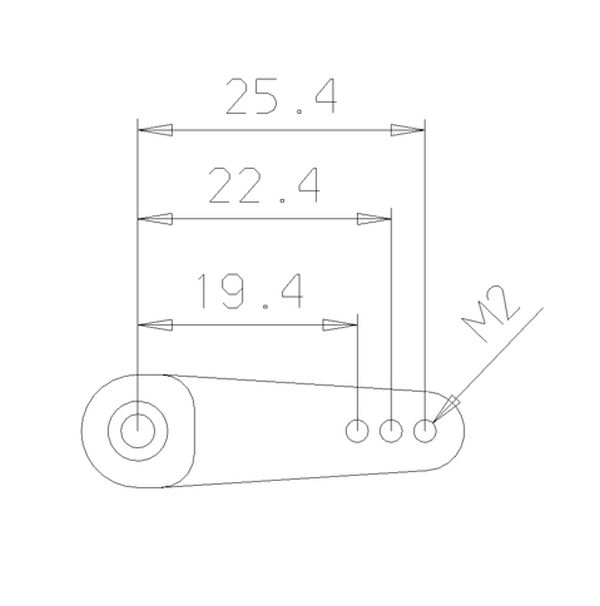

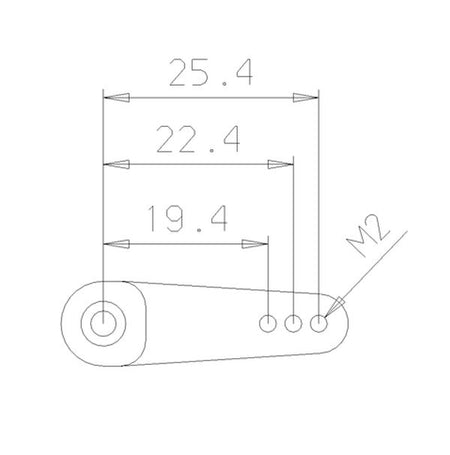

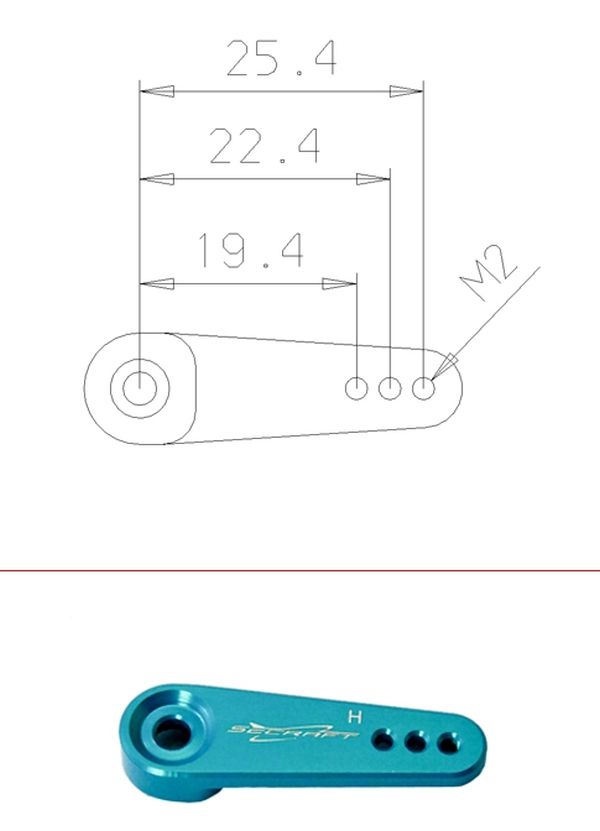

Width: 25.4mm
Weight: 2g
Material: 6061-T6 Anodized Aluminum

Installation Guide:

Follow aircraft manufacturer's recommendation for servo horn control setup
Use thread lock compound on all metal to metal screws
Install linkage ball on bottom of servo arm (when / where possible)

The Hitec 8XXX series servos use Futaba type, 25 tooth.
