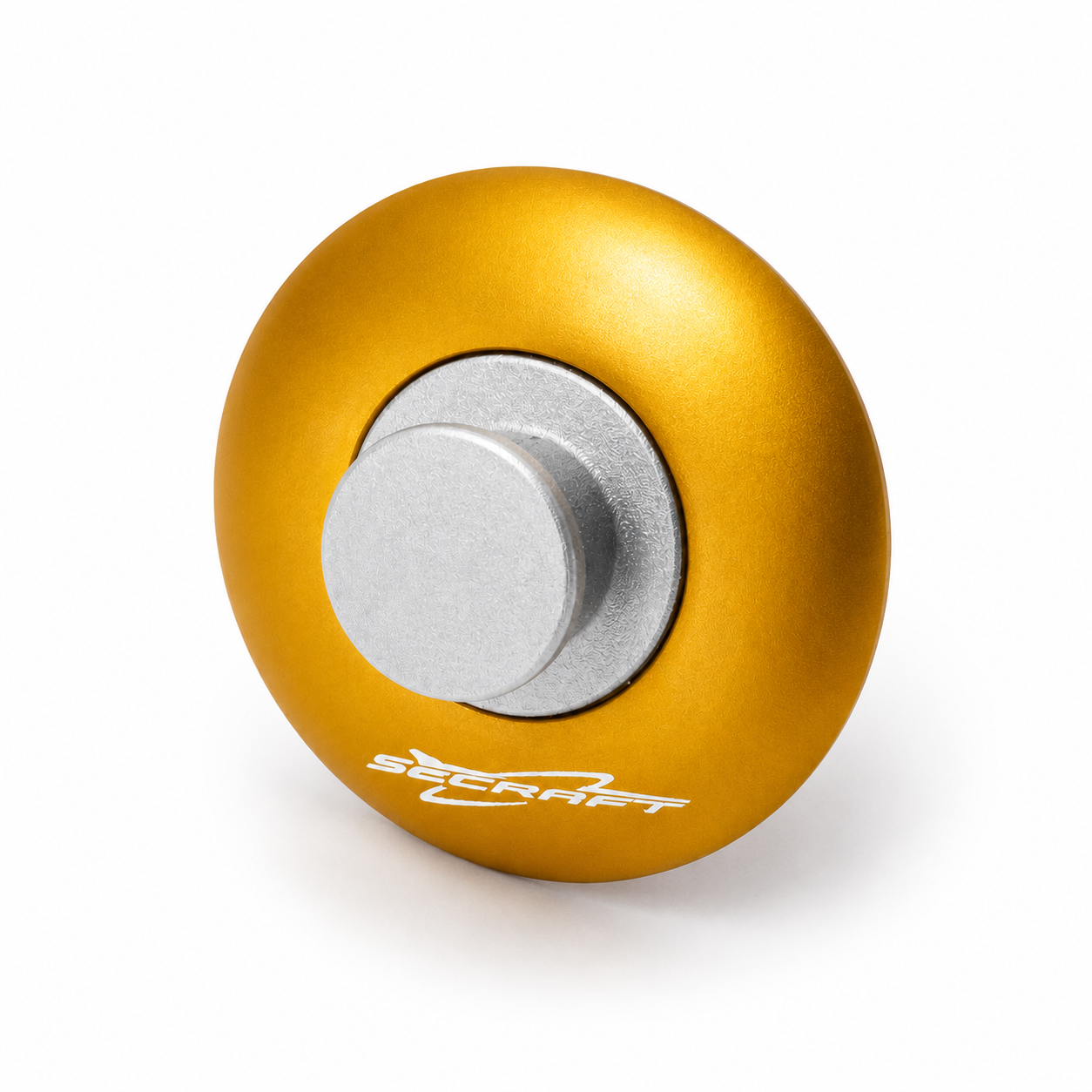

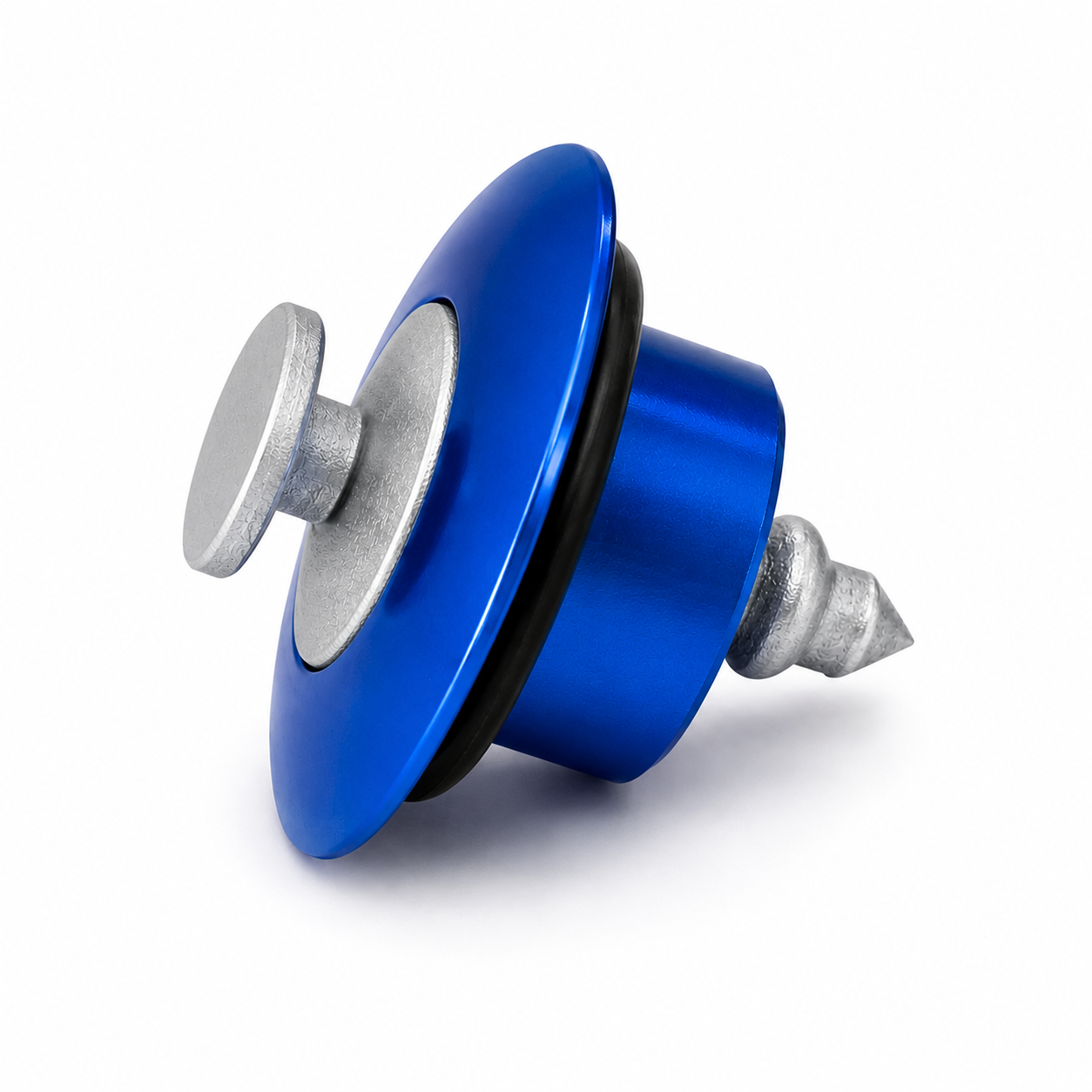

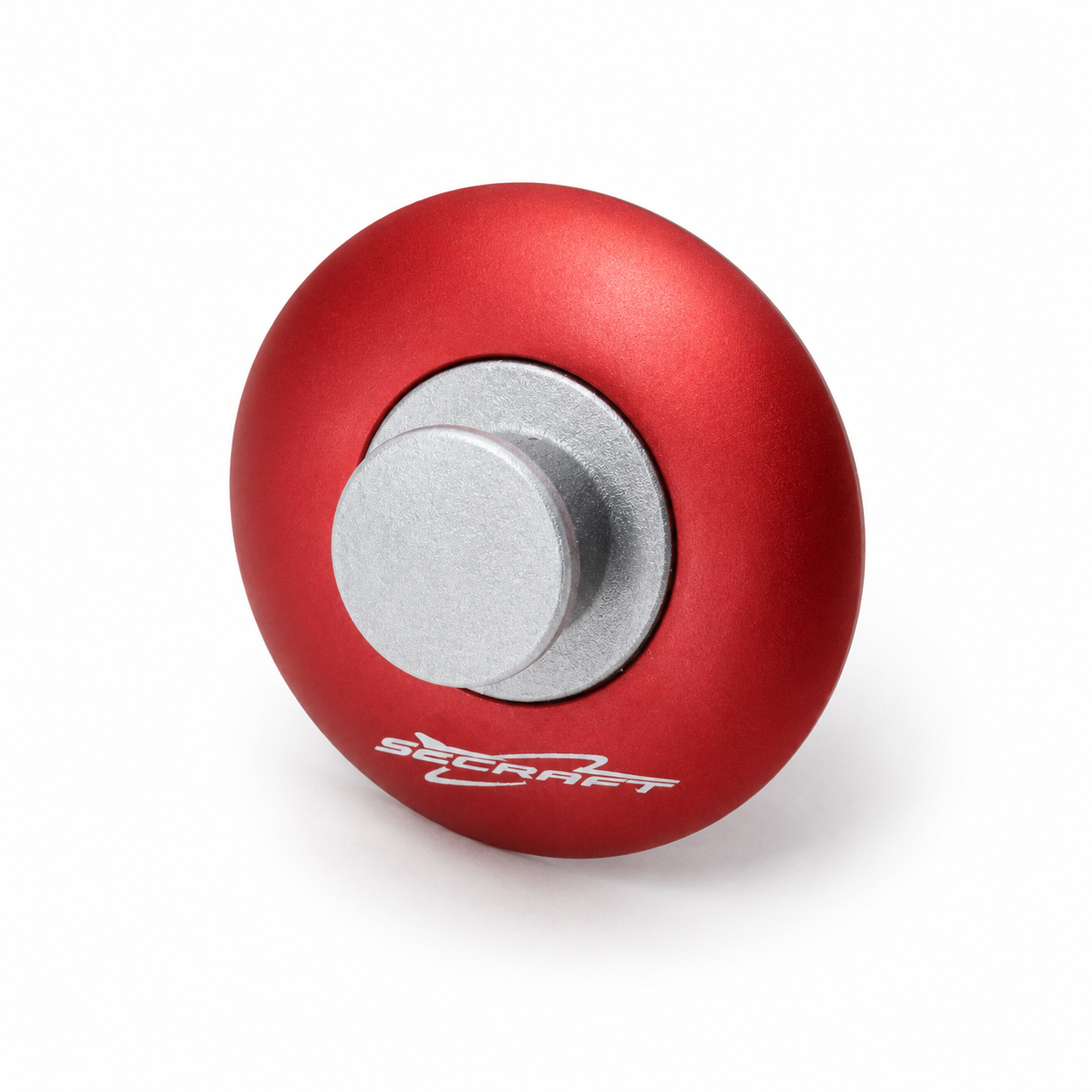

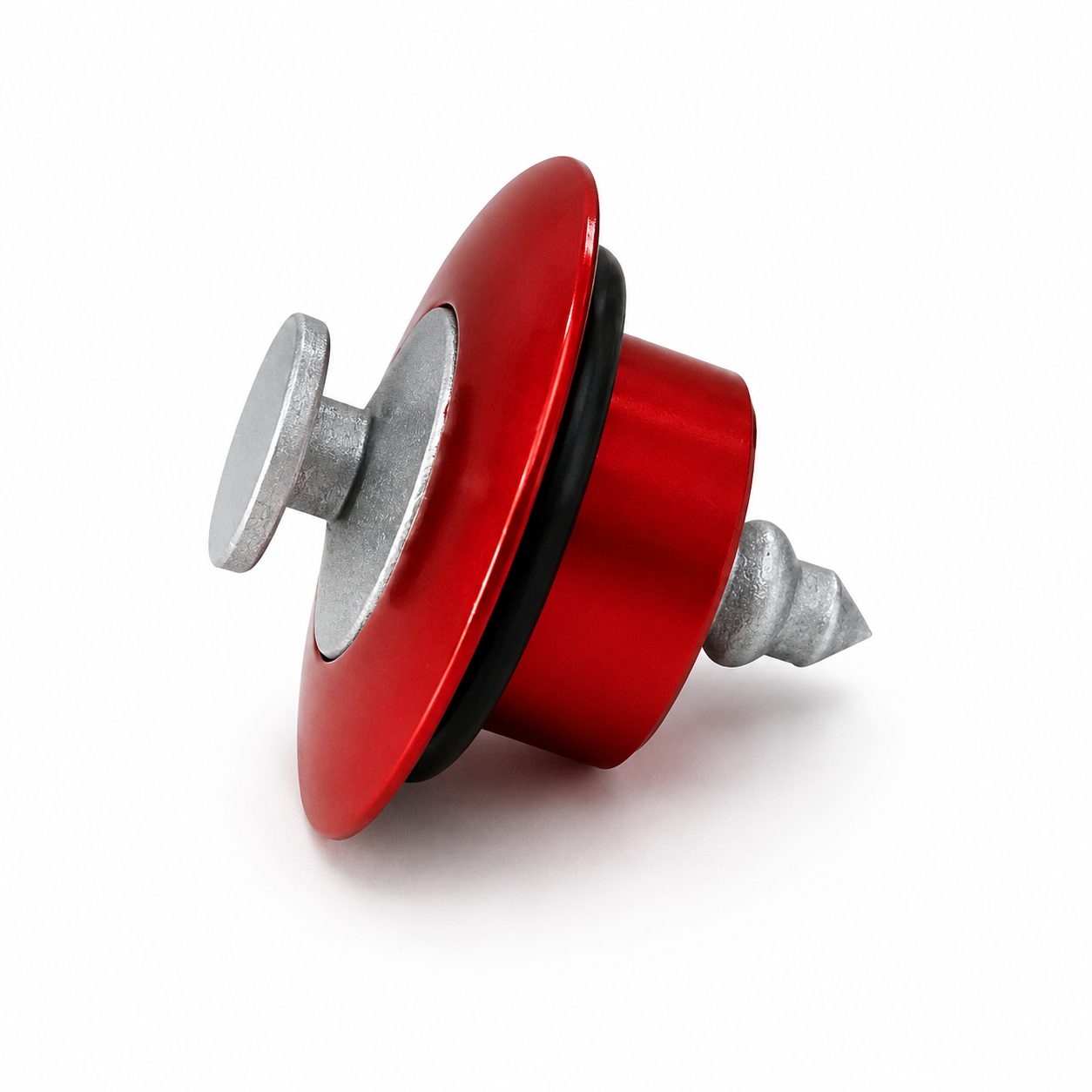

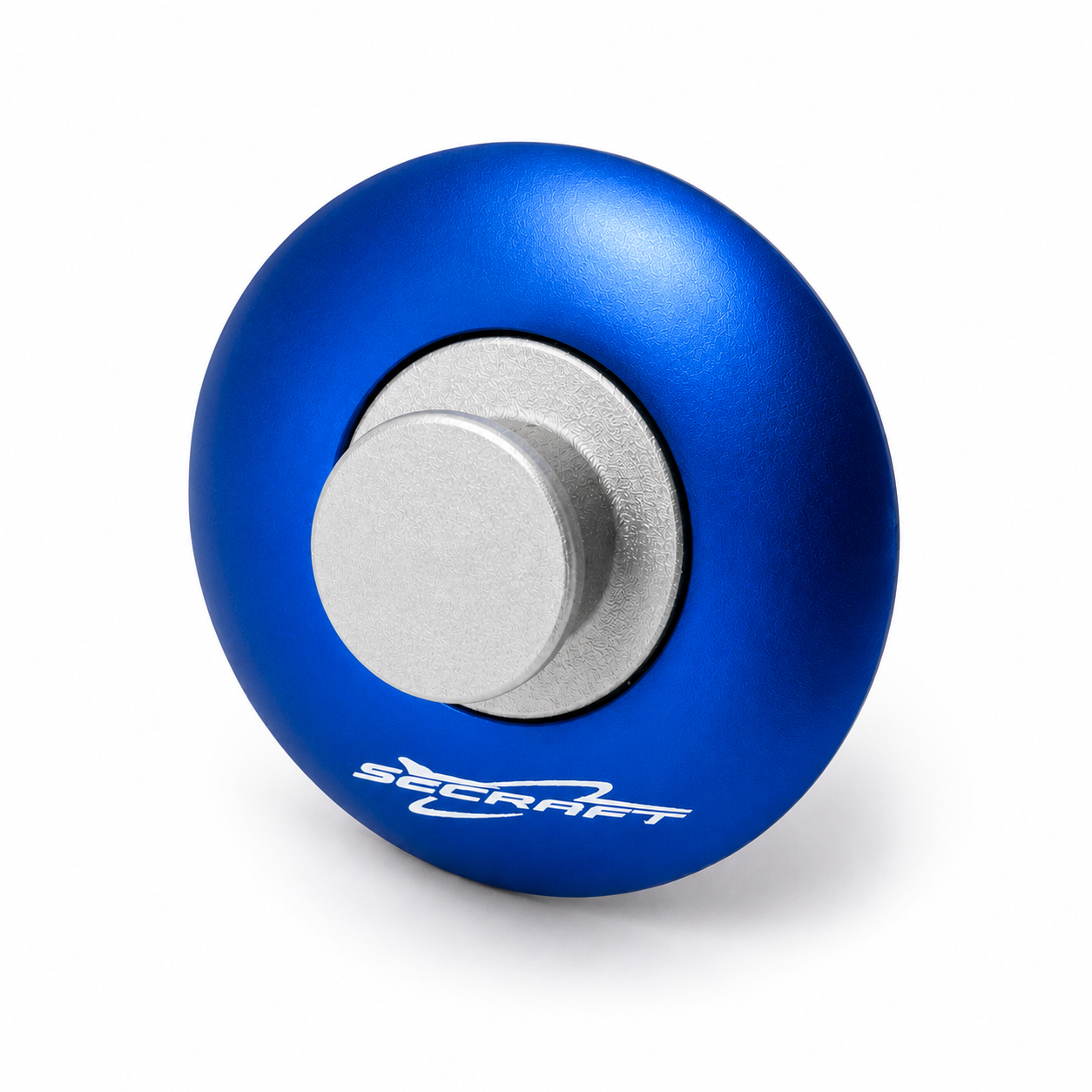

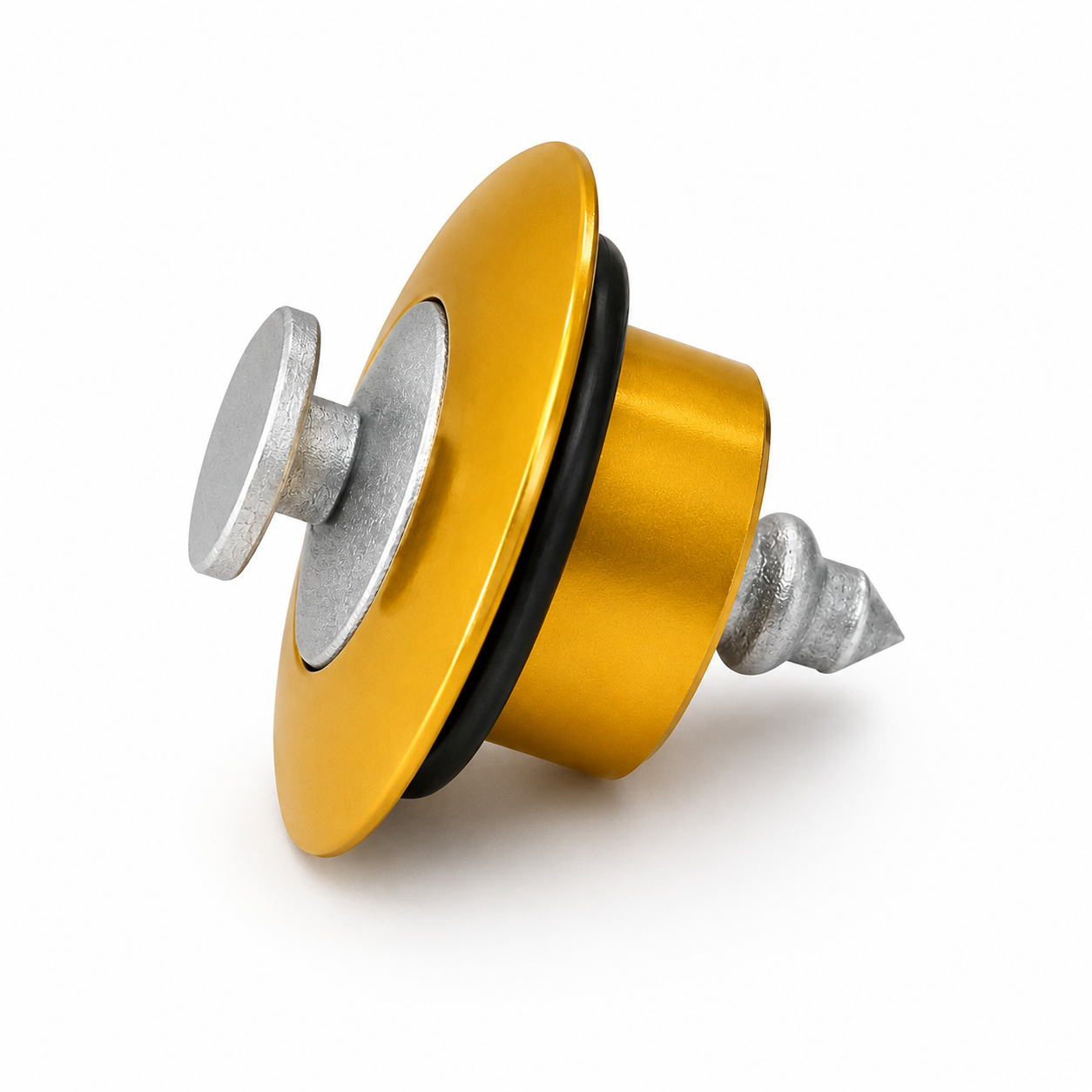

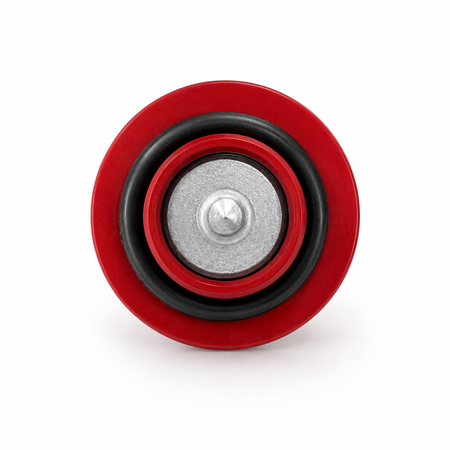

Secraft V1 Fuel Dot
Lightweight, clean fuel access for gas-powered RC aircraft.
The Secraft V1 Fuel Dot provides a simple, professional fueling access point for RC airplanes. It mounts cleanly into the fuselage side or cowl, allowing you to connect your fuel line without removing the cowl or reaching inside the aircraft.
CNC machined from aluminum and finished in durable anodized colors, the V1 Fuel Dot gives your airplane a clean scale appearance while helping keep your fuel system organized and easy to access. Available in Red, Blue, or Gold.
🚀 Target Applications:
- Gas-powered RC airplanes and giant scale aircraft
- Main fuel tank fueling access ports and smoke system fill ports
- Fuselage side mounting and structural engine cowl installations
Key Features
- Lightweight Fuel Dot Design: Provides clean external fuel access without adding unnecessary weight penalties to your aircraft.
- 6061-T6 CNC Machined Aluminum: Precision-milled aluminum construction finished with a durable anodized layer that resists raw gasoline and smoke oil.
- Flush, Professional Installation: Installs cleanly into the side of the fuselage or cowl to maintain a finished, scale-inspired profile.
- System Separator Capability: Available in Red, Blue, or Gold, allowing pilots to use different colors to easily differentiate gasoline from smoke oil entry lines.
💡 Gator RC System Tip
Many pilots use different colors to identify different lines. For example, use one color for gasoline and another color for smoke oil to help prevent critical fueling mistakes and cross-contamination at the flight line.
View Technical Specifications
| Material Core: | CNC Machined Aluminum |
| Finish: | Anodized Protective Layer |
| Fuel Tubing Compatibility: | 1/8" (3.2mm) ID Fuel Line Plumbing |
| Required Mounting Cutout: | 16mm (0.63 in) Diameter Hole |

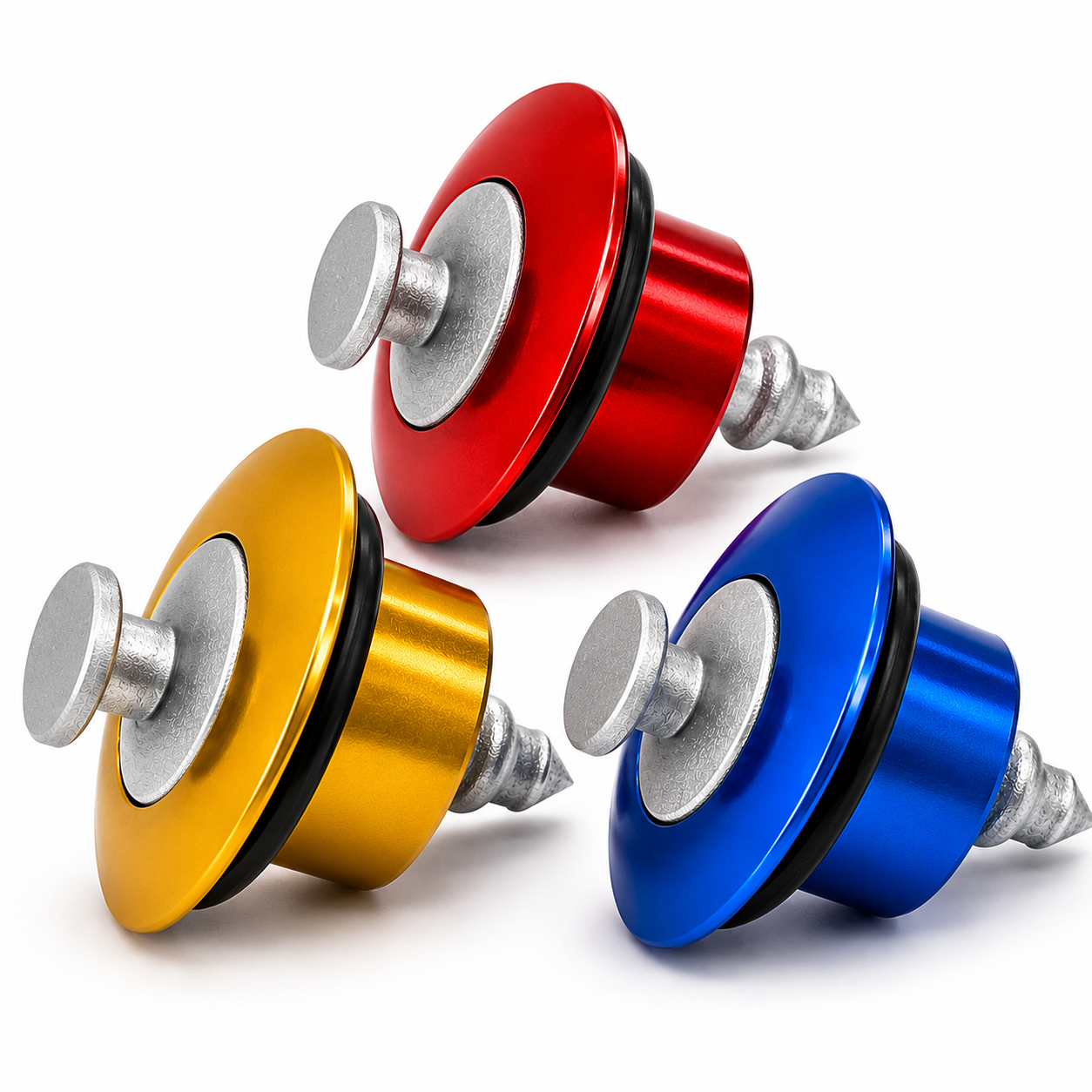

| Available Colors: | Red, Blue, Gold (Select variant option above) |
| Package Quantity: | 1 Fuel Dot assembly per retail pack |
| Physical Component Weight: | At only 5g (0.18 oz) Ultra-Low Mass |
📦 Package Includes:
- 1 × Secraft V1 Fuel Dot Base Body
- 1 × Matching Anodized Fuel Cap
- 1 × Sealing O-Ring

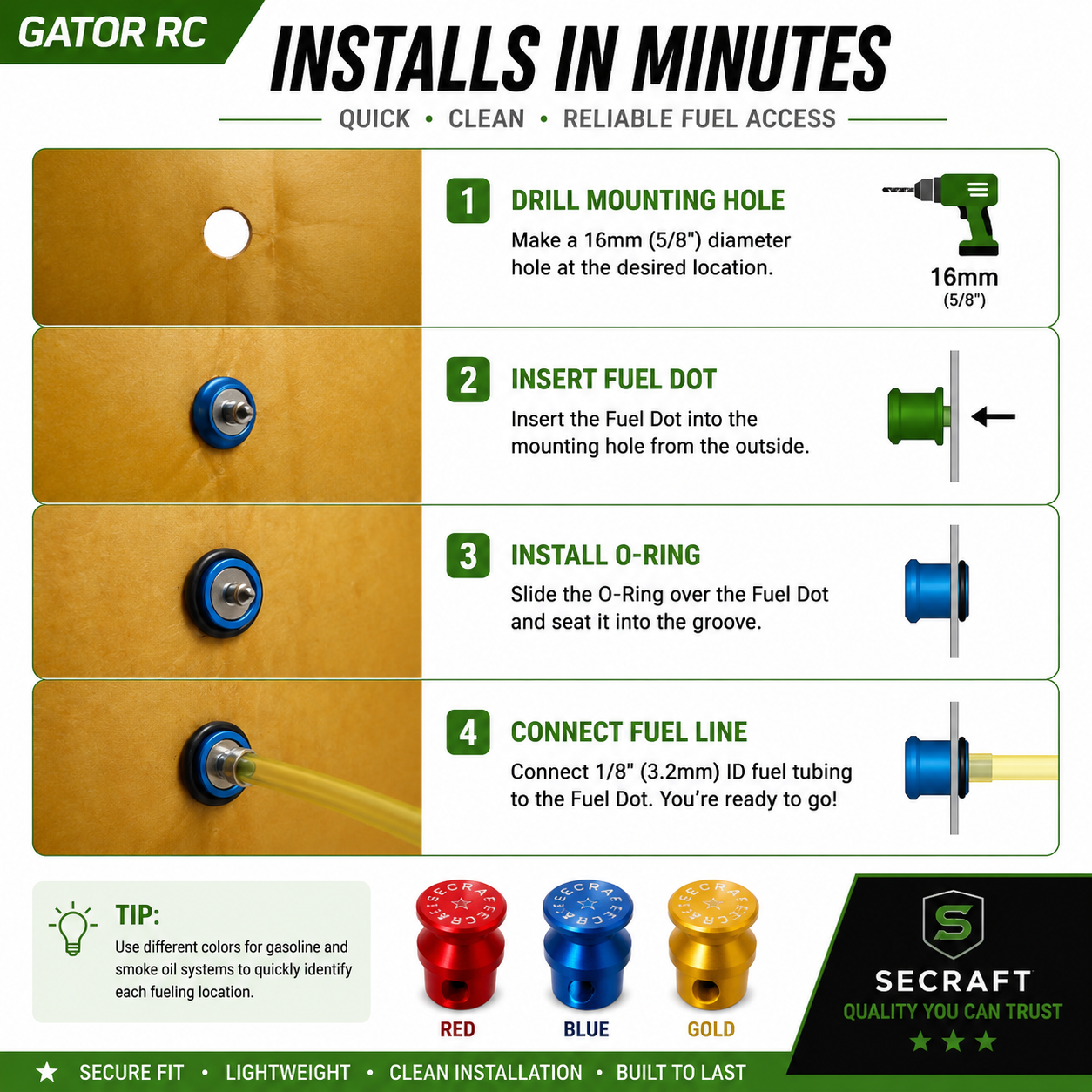

🔧 Installation Overview
- Select a convenient fueling location on the fuselage side or cowl.
- Drill a clean 16mm (0.63") mounting hole at your desired position.
- Insert the fuel dot base straight into the opening.

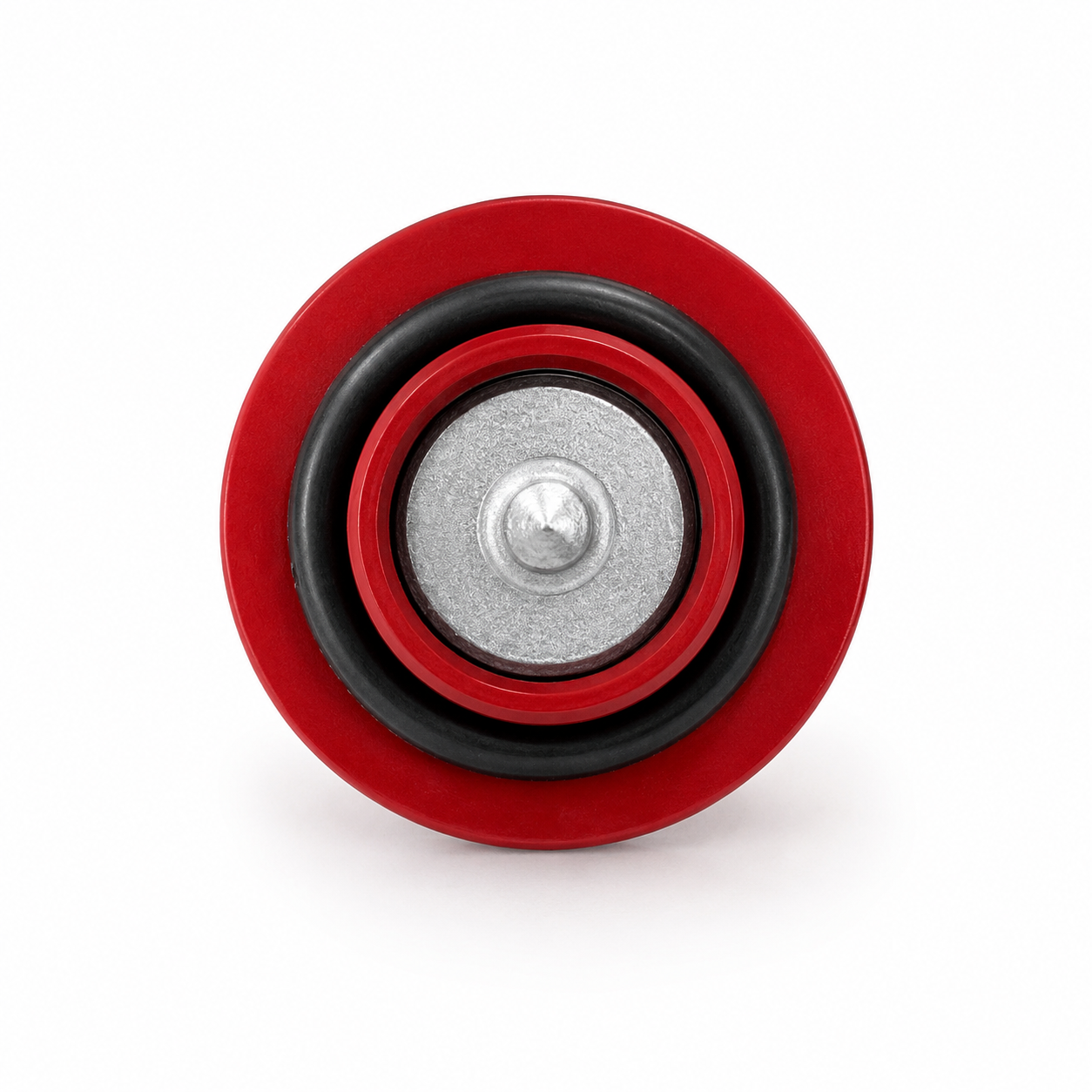

- Install the supplied O-ring onto the rear of the fuel dot body from inside the structure.
- Fix the O-ring securely into place using a small amount of thin CA adhesive.
- Connect your 1/8" (3.2mm) ID fuel tubing tightly to the rear barb fitting.
- Verify the complete fuel line track is secure and leak-free before engine operation.
