Secraft V2 Fuel Dot
Convenient external fueling access with a finished appearance for your RC airplane.
The Secraft V2 Fuel Dot provides an accessible location for your airplane’s dedicated fuel fill line. Installed in a suitable location on the fuselage or cowl, it brings the fueling connection to the outside of the aircraft, reducing the need to remove panels or reach inside during routine refueling.

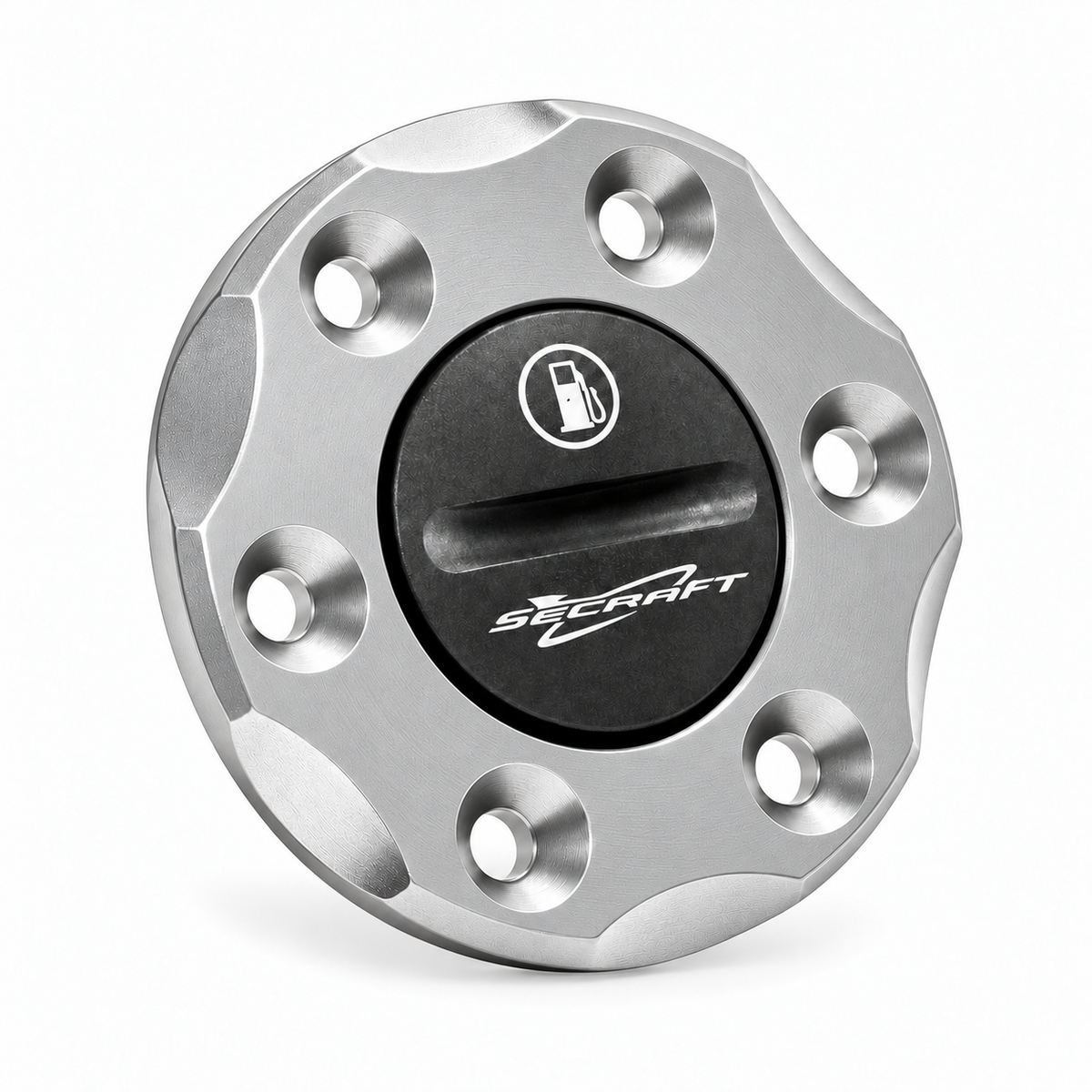

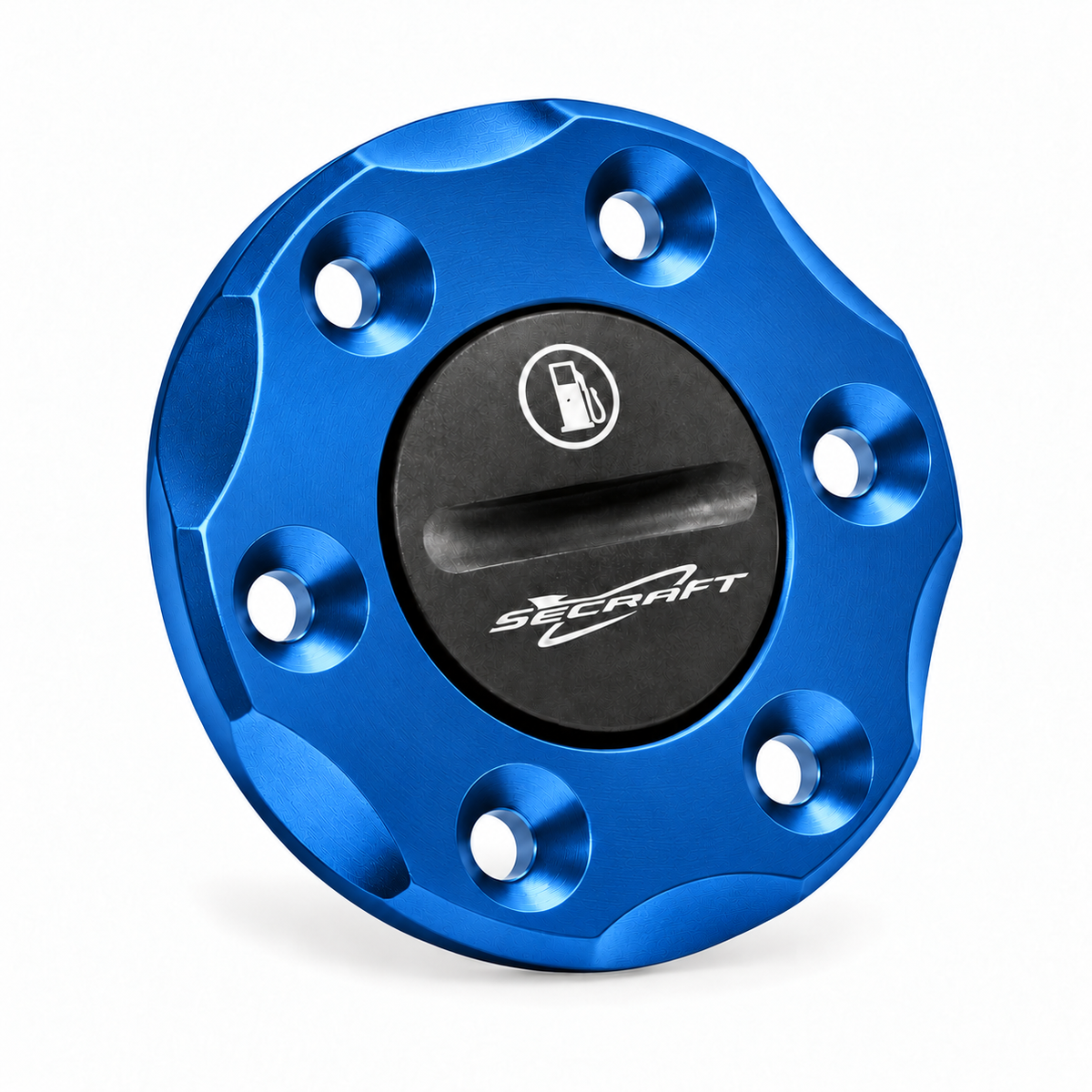

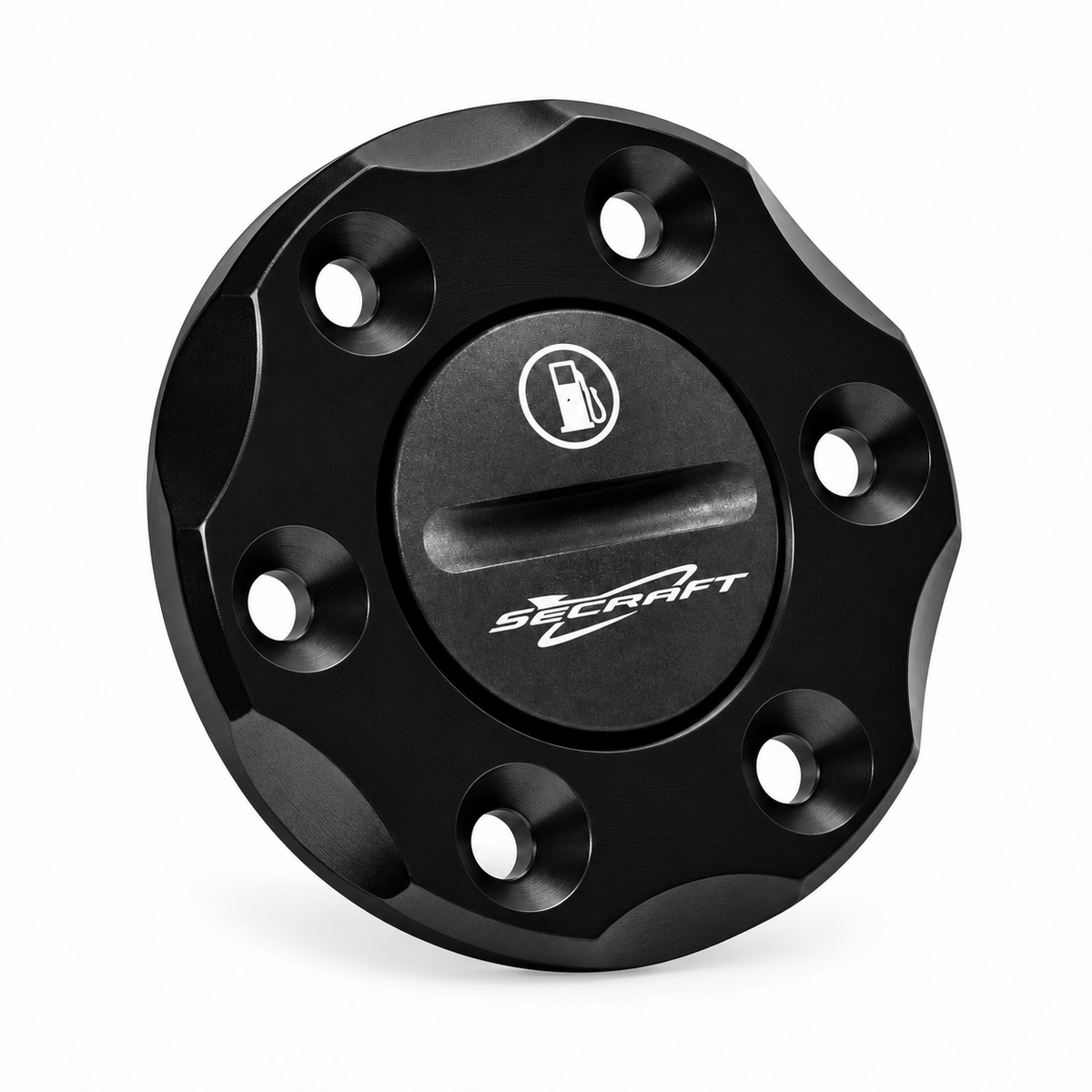

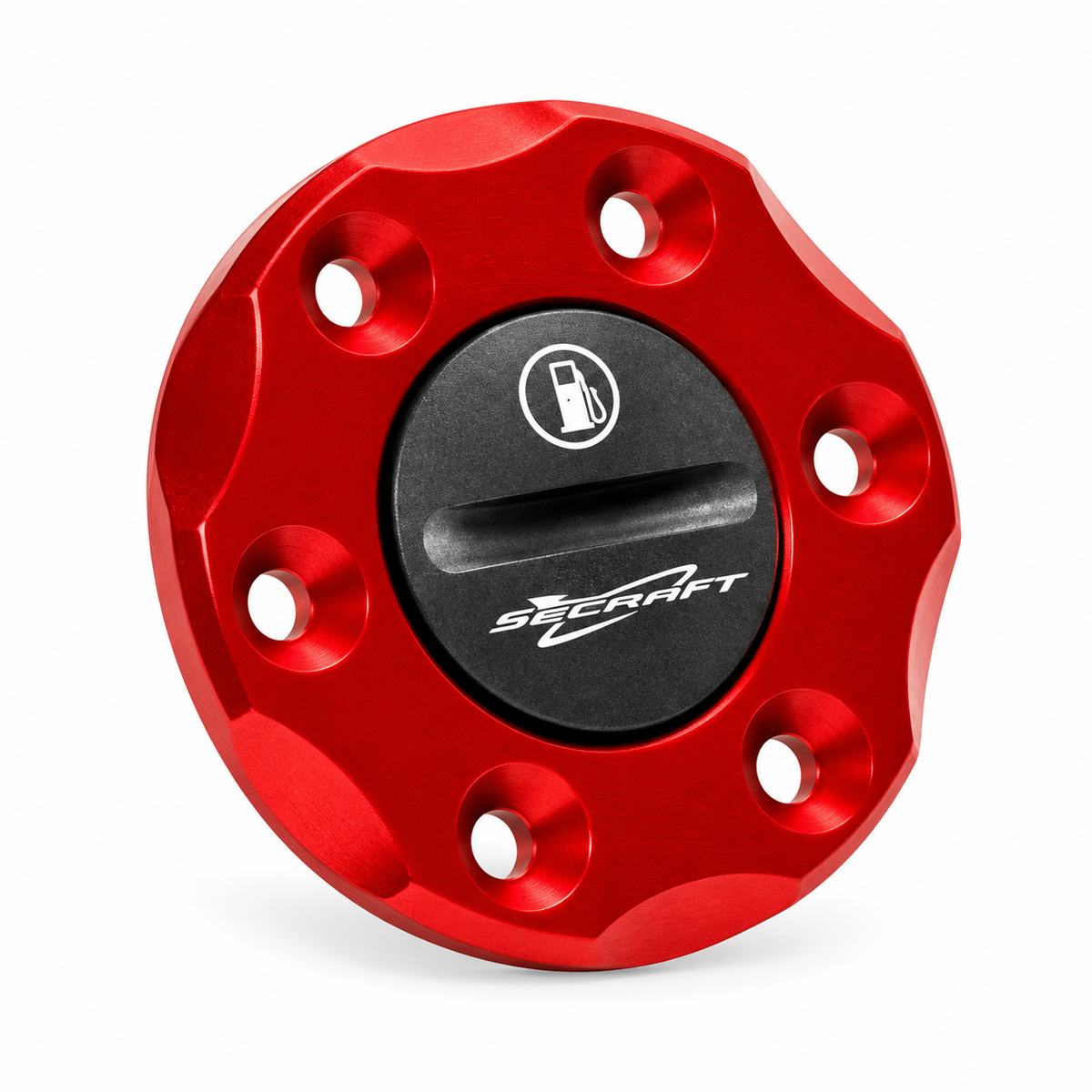

The V2 features a hard-coated swivel cap and a separate mounting bezel. The supplied backing ring and mounting hardware secure the holder to the aircraft structure, while the removable cap assembly provides access to the fill line. Choose Blue, Red, Silver or Black to complement your airplane’s color scheme.
Target Applications
- RC airplanes using a dedicated fuel tank fill line.
- Sport, aerobatic and giant scale models with suitable mounting space.
- Fuselage-side fueling access where the connection is easy to reach.
- Cowl installations with adequate structural support and clearance behind the panel.
Key Features
- Accessible Fueling Connection: Keeps your fill line accessible from outside the aircraft for a more convenient refueling routine.
- Swivel Cap Design: Incorporates a swivel fitting in the cap assembly to help accommodate movement of the attached tubing as the cap is handled.
- Hard-Coated Cap: A hard-coated finish is specified for the cap, a component handled repeatedly during fueling.
- Two Listed Tubing Sizes: Accommodates 1/8-inch and 3/32-inch fuel tubing. Check the fit of your particular tubing before completing the installation.
- Separate Mounting Bezel and Backing Ring: The exterior bezel and interior ring provide a mechanically fastened mounting arrangement.

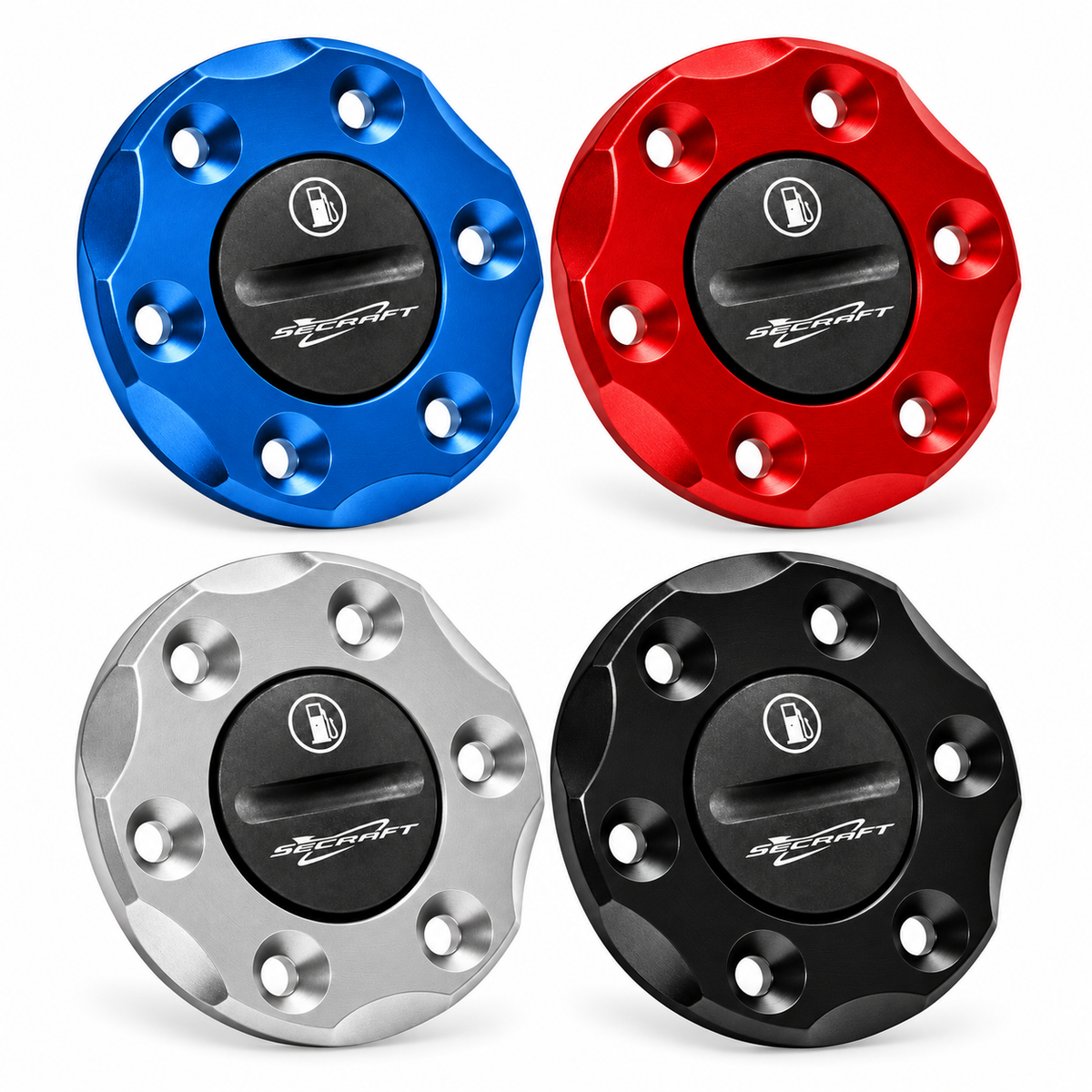

- Four Color Choices: Select Blue, Red, Silver or Black to coordinate with your model or distinguish between separately identified service points.
Gator RC Setup Tip
Before drilling, temporarily position the fuel dot and check access with the airplane fully assembled. Leave enough tubing movement to withdraw and handle the cap without pulling on the tank connection. Keep the line clear of exhaust components, sharp edges and moving linkages.
View Technical Specifications
| Brand: | Secraft |
| Version: | V2 single fuel dot |
| Application: | External access to a dedicated RC airplane fuel fill line |
| Cap Design: | Swivel cap with hard-coated finish |
| Listed Fuel Tubing Sizes: | 1/8 in (3.2mm) and 3/32 in (2.4mm) |
| Mounting Arrangement: | Exterior bezel, interior backing ring and mounting screws |
| Available Colors: | Blue, Red, Silver and Black — select above |
| Package Quantity: | 1 fuel dot assembly in the selected color |
| Listed Total Weight: | 0.81 oz (23g) |

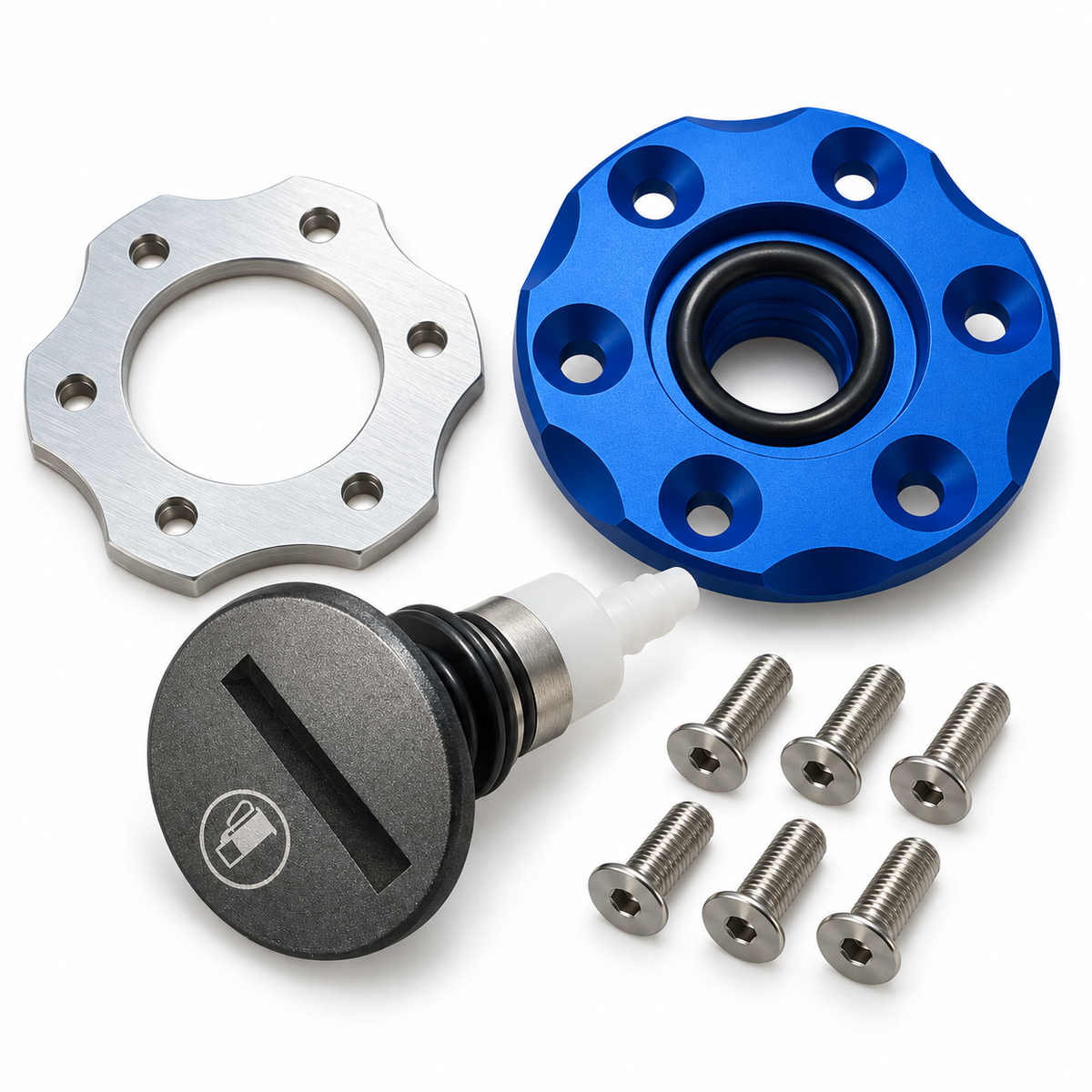

Package Includes
- 1 × Secraft V2 mounting bezel in the selected color.
- 1 × Removable swivel cap and fuel-line fitting assembly.
- 1 × Backing ring.
- Mounting hardware.
Installation Overview
- Select an accessible mounting location with sufficient clearance inside the aircraft.
- Check the bezel and backing ring against the mounting surface. Reinforce thin or unsupported panels as needed.
- Measure the supplied assembly and mark the center opening and mounting screw locations before drilling.
- Test-fit the bezel and backing ring, then secure them with the supplied mounting hardware without distorting the panel.
- Connect compatible fuel tubing to the cap assembly’s fitting and route it to the aircraft’s dedicated fill connection.
- Check that the cap can be removed and reseated without stretching, twisting or pinching the tubing.
- Inspect all connections and check for leaks before operating the aircraft.
Fuel System Reminder: Use tubing suitable for your fuel and follow your tank and engine manufacturer’s plumbing instructions. The fuel dot provides access to the fill line; it does not replace the tank’s required vent connection.
