Gator-RC

Gator RC 50mm (2") Full Width Aluminum Servo Arm Futaba 25T Blue

In stock
SKU: GRC-SA-150
(1)
$5.45

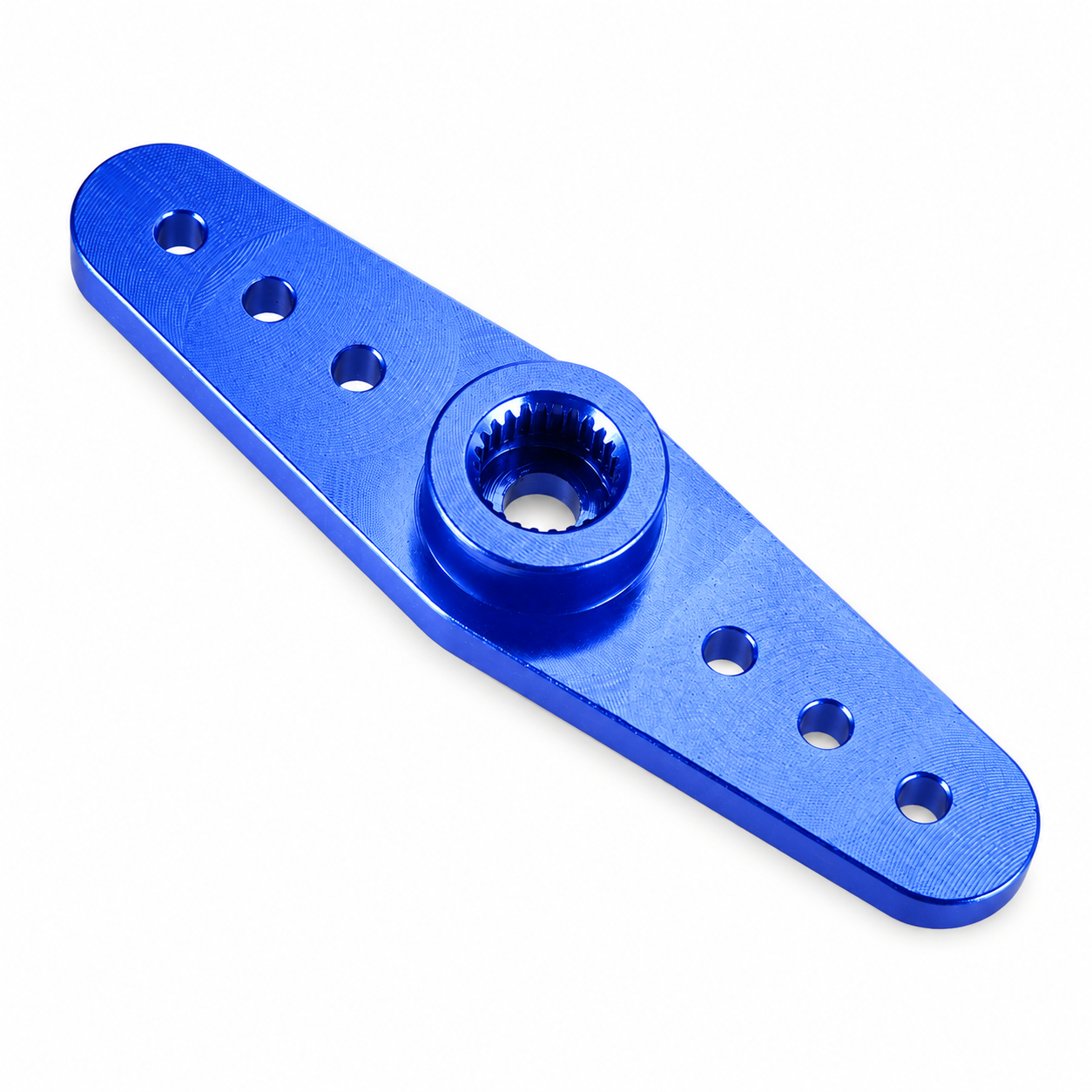

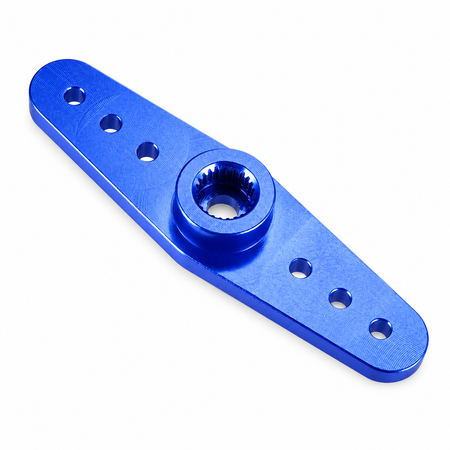

Gator RC 50mm (2") Full Width Aluminum Servo Arm – Futaba 25T Blue

The Gator RC 50mm (2") Full Width Aluminum Servo Arm is a heavy-duty servo arm designed for Futaba-style 25T spline servos. Its full-width construction provides increased rigidity for demanding control surface applications, making it an excellent choice for rudder installations on giant scale, IMAC, aerobatic, sport, and scale aircraft.

Manufactured from lightweight CNC-machined aluminum and finished in a durable blue anodized coating, this servo arm combines strength with low weight while providing multiple linkage mounting positions for setup flexibility.

Key Features

  • Heavy-duty full-width servo arm design
  • Fits Futaba-style 25T spline servos
  • 50mm (2") overall length
  • Multiple linkage mounting positions at 10mm, 15mm, and 20mm from center
  • Precision CNC-machined aluminum construction
  • Blue anodized finish
  • 3mm arm thickness
  • 7mm hub height
  • Excellent for rudder and high-load control surface applications
  • Compatible with KingMax, Futaba, Graupner, and MKS servos using a 25T spline

Why Choose a Full Width Servo Arm?

Full-width servo arms distribute loads evenly across both sides of the servo output spline, helping provide a rigid and reliable connection for larger control surfaces. This design is particularly beneficial on rudder installations where higher aerodynamic loads are common.

The multiple mounting positions allow pilots to fine-tune control throw and mechanical advantage to suit their aircraft and flying style.

Specifications

Brand Gator RC
Servo Spline Futaba Style 25T
Material CNC Aluminum
Color Blue
Overall Length 50mm (2")
Hub Diameter 13mm
Hub Height 7mm
Arm Thickness 3mm
Center Hole Diameter 3mm
Linkage Hole Diameter 2mm
Linkage Positions 10mm, 15mm, and 20mm from center

Multiple Linkage Positions

The servo arm includes multiple linkage mounting positions to allow adjustment of control throw and mechanical advantage.

  • 10mm from center
  • 15mm from center
  • 20mm from center

The linkage holes measure approximately 2mm in diameter and are suitable for a variety of common RC aircraft linkage setups.

Compatible Servo Brands

  • Futaba
  • KingMax
  • Graupner
  • MKS
  • Other servos utilizing a Futaba-style 25T spline

Ideal Applications

  • Rudder Installations
  • Giant Scale Aircraft
  • IMAC Aircraft
  • Precision Aerobatic Aircraft
  • Sport Aircraft
  • Scale Aircraft
  • Gas-Powered Aircraft
  • Turbine Aircraft

Installation Tips

  • Verify your servo uses a Futaba-style 25T spline before installation.
  • Select the linkage hole position that provides the desired control throw and geometry.
  • Use quality linkage hardware appropriate for your aircraft size and application.
  • Apply threadlocker where appropriate on metal-to-metal fasteners.
  • Verify full control surface movement before flight.
  • Inspect linkage geometry after installation and during routine maintenance.

Package Includes

  • 1 × Gator RC 50mm (2") Full Width Aluminum Servo Arm
