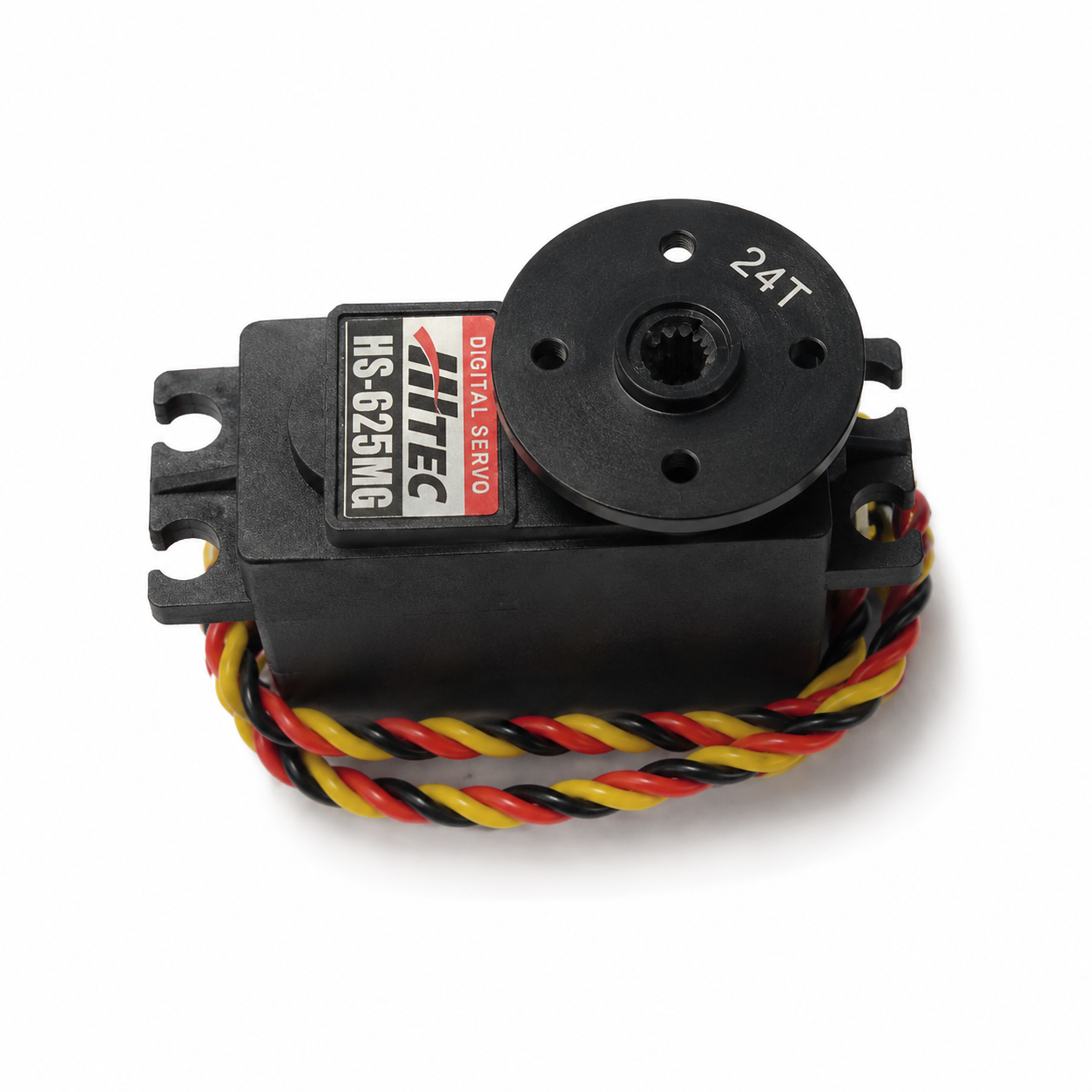

Hitec servo motor on a white background
Gator RC Round Aluminum Servo Arm 9mm
Gator RC Round Aluminum Servo Arm 9mm
Hitec servo motor on a white background
Gator RC Round Aluminum Servo Arm 9mm
Gator-RC

Gator RC Round Aluminum Servo Arm 9mm (0.35") 4-40 Hitec 24T Black or Blue

In stock
SKU: GRC-SA-164-Black
(0)
$4.35
color

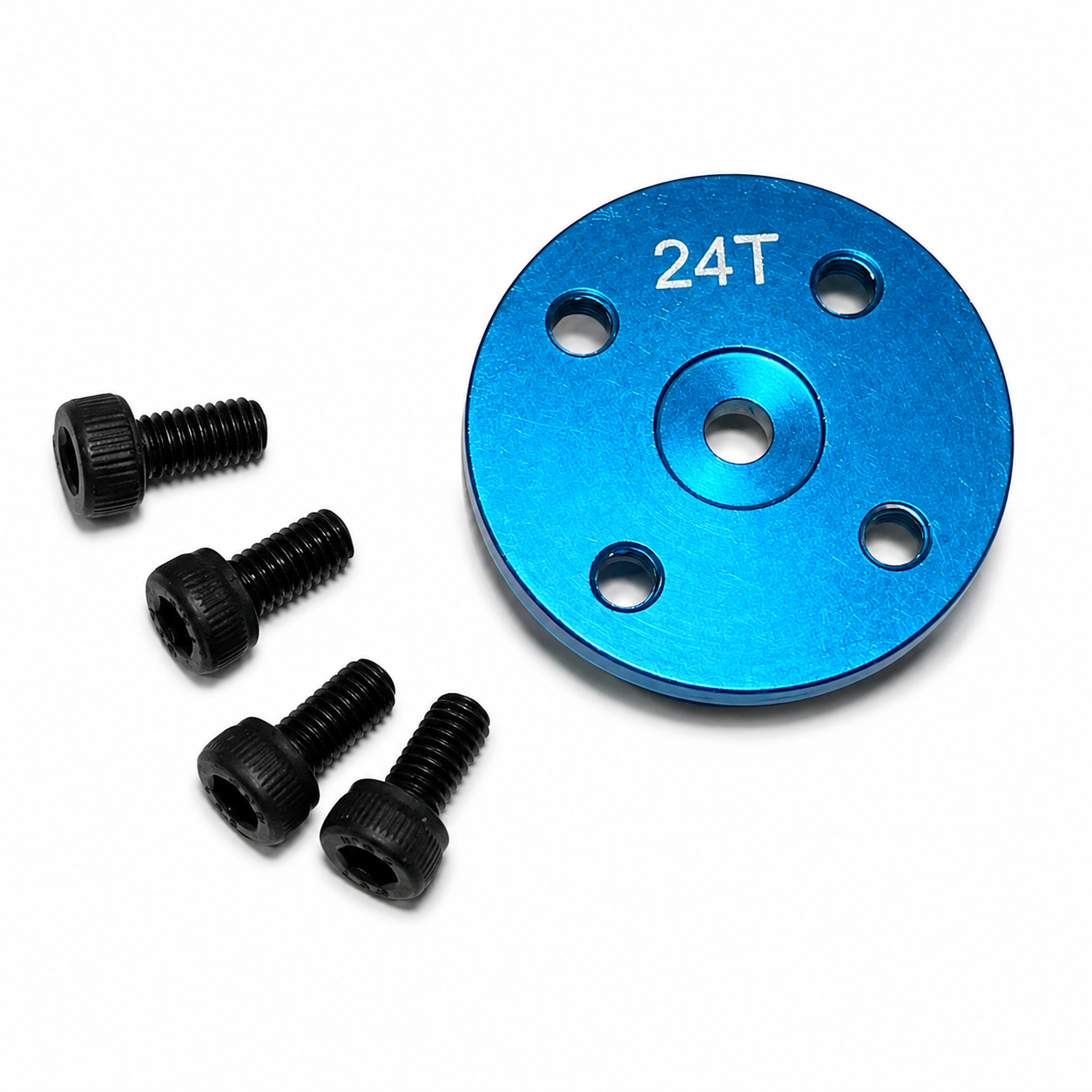

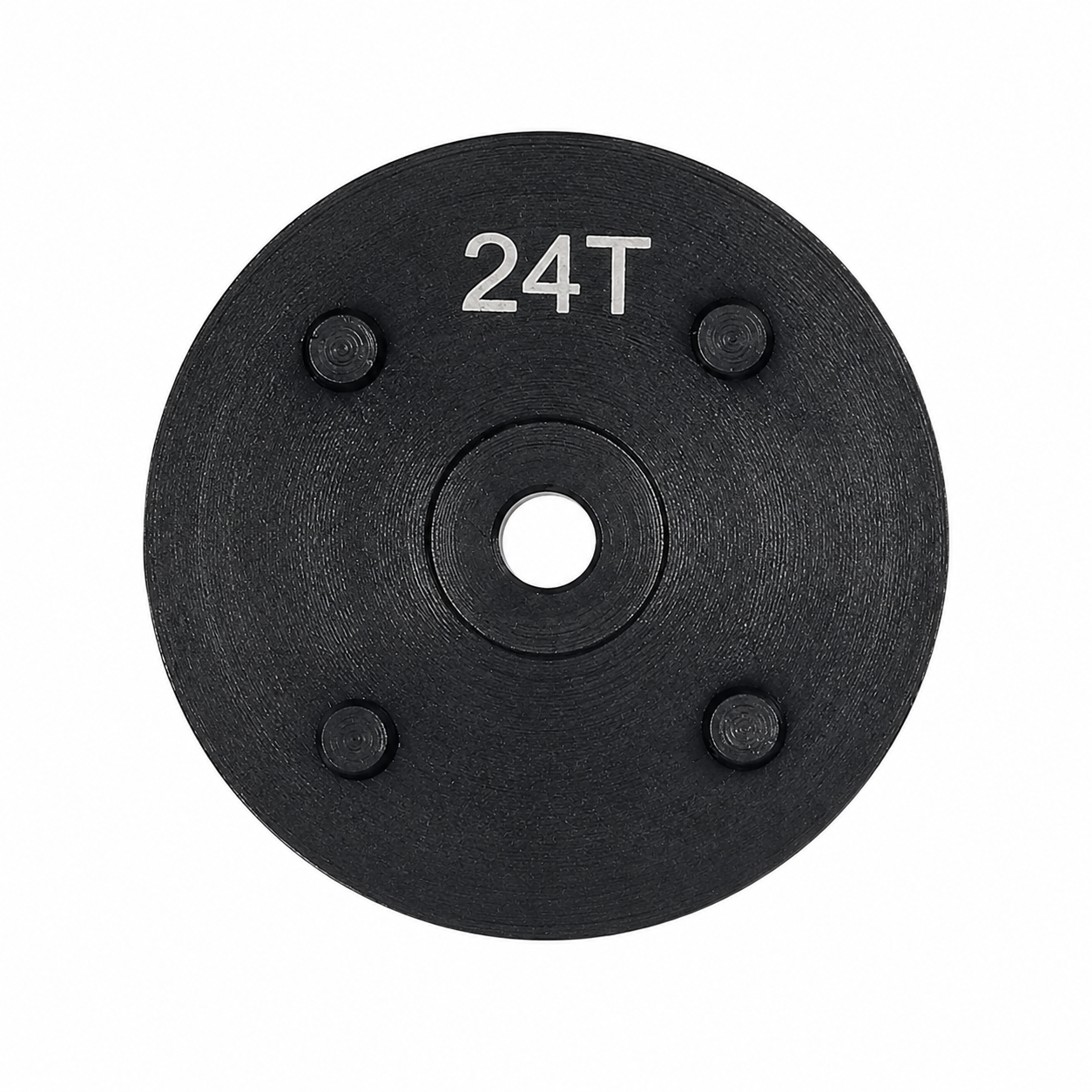

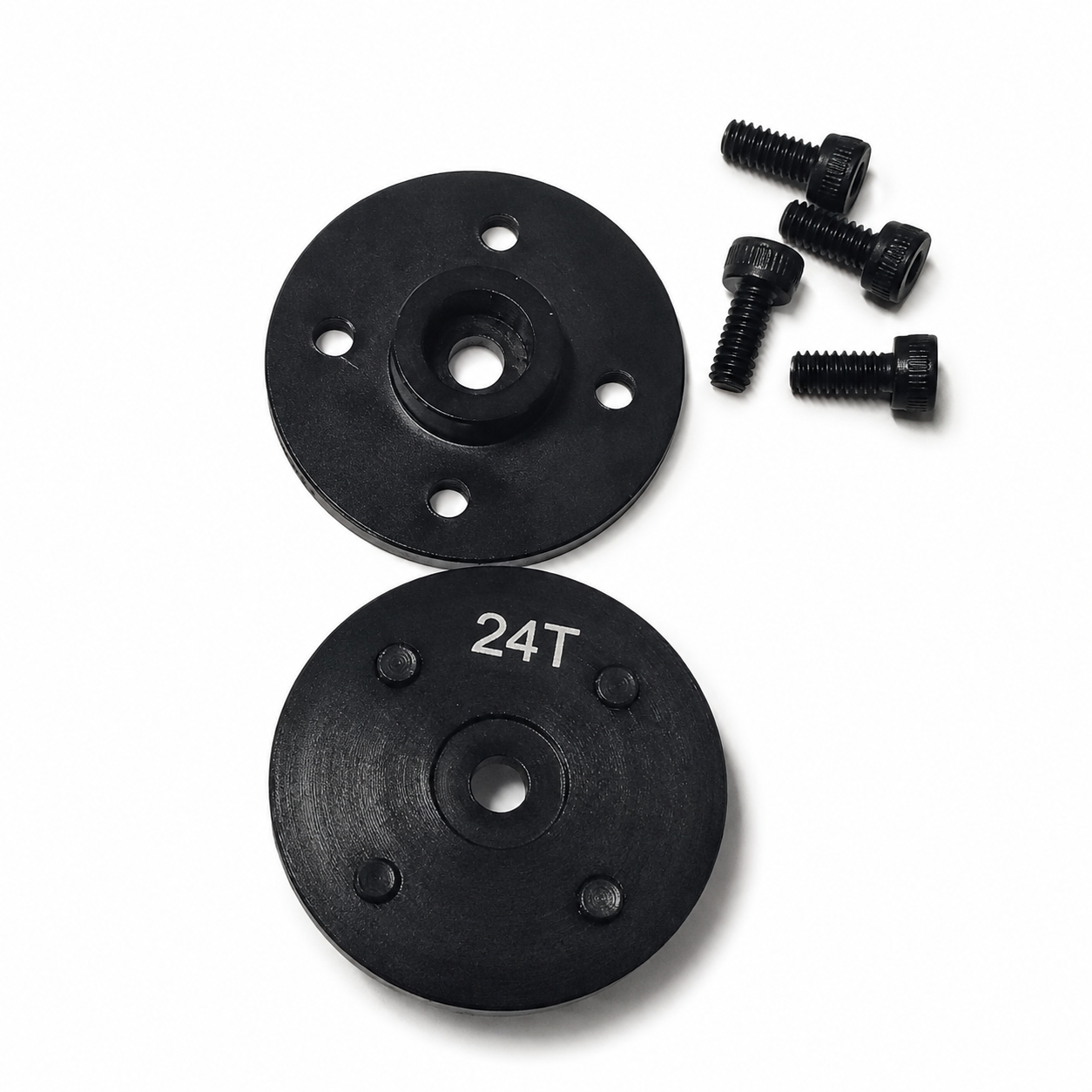

Gator RC Round Aluminum Servo Arm 9mm (0.35") 24T

The Gator RC Round Aluminum Servo Arm is precision machined from aluminum for strength, durability, and reliable control performance. Designed to fit 24T spline servos, this compact round arm provides multiple linkage mounting positions while maintaining an extremely lightweight design.

The linkage holes are drilled and tapped to accept 2.5mm and 4-40 hardware, making installation of ball links and control linkages quick and secure. Available in black or blue anodized finishes.

⚙️ Linkage Mounting Flexibility:

The round layout offers highly versatile geometric tracking and multi-link pull options for your setup:

  • Dual-Thread Ready: Factory drilled and tapped to accept both 2.5mm and 4-40 hardware configurations.
  • Compact Center-to-Hole Sizing: Sized with a precise 9mm (0.35") center-to-outer hole throw distance.
  • Multi-Position Array: Multiple linkage mounting positions distributed evenly across a clean 24mm round diameter.
⚠ Spline Compatibility Note: This component is engineered strictly to fit 24T spline servo outputs. Always verify your specific servo manufacturer's output spline count before assembly to ensure a perfect match with zero mechanical slop.

Key Features

  • Rigid Control Geometry: Precision machined aluminum construction delivers immense structural rigidity compared to flexible standard plastic horns.

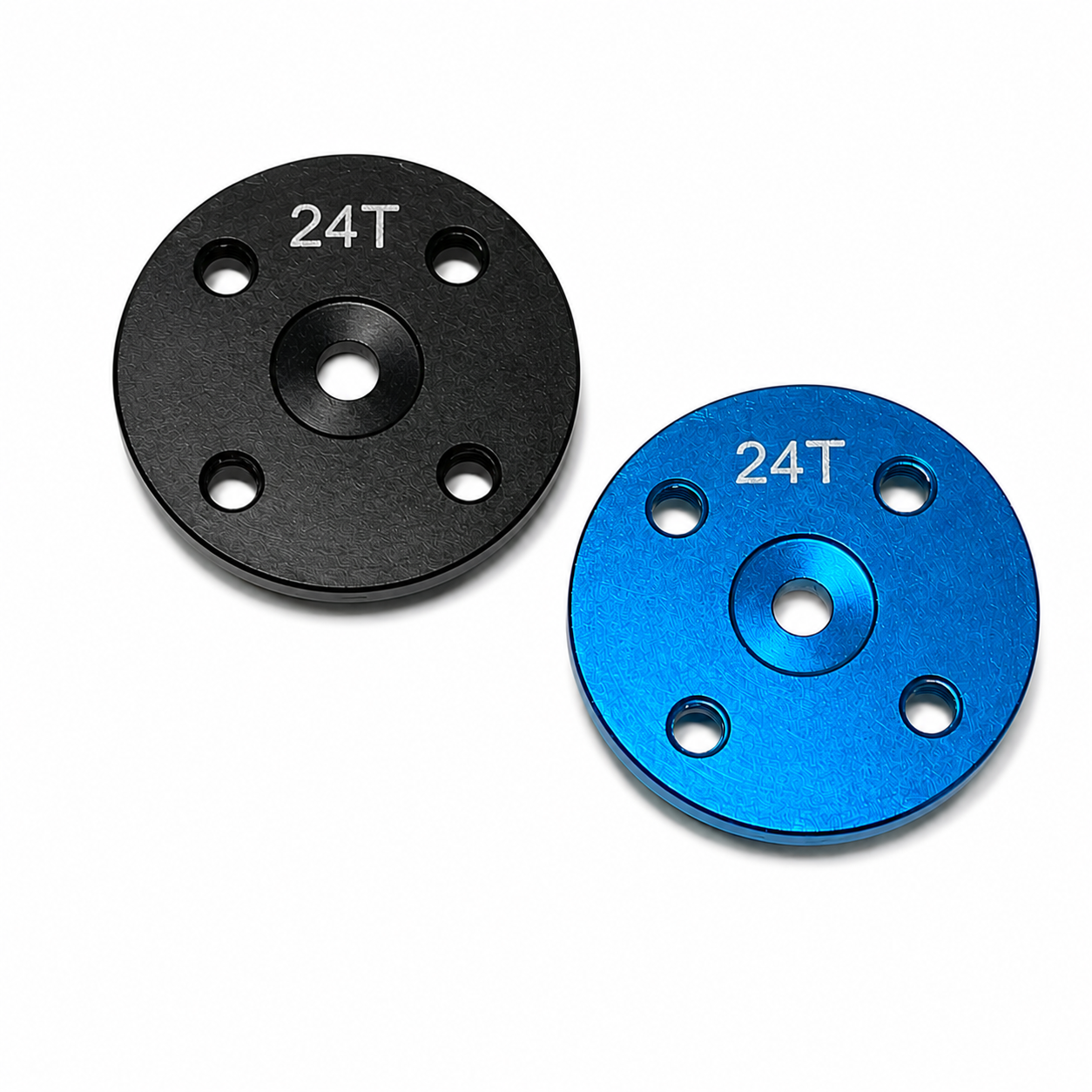

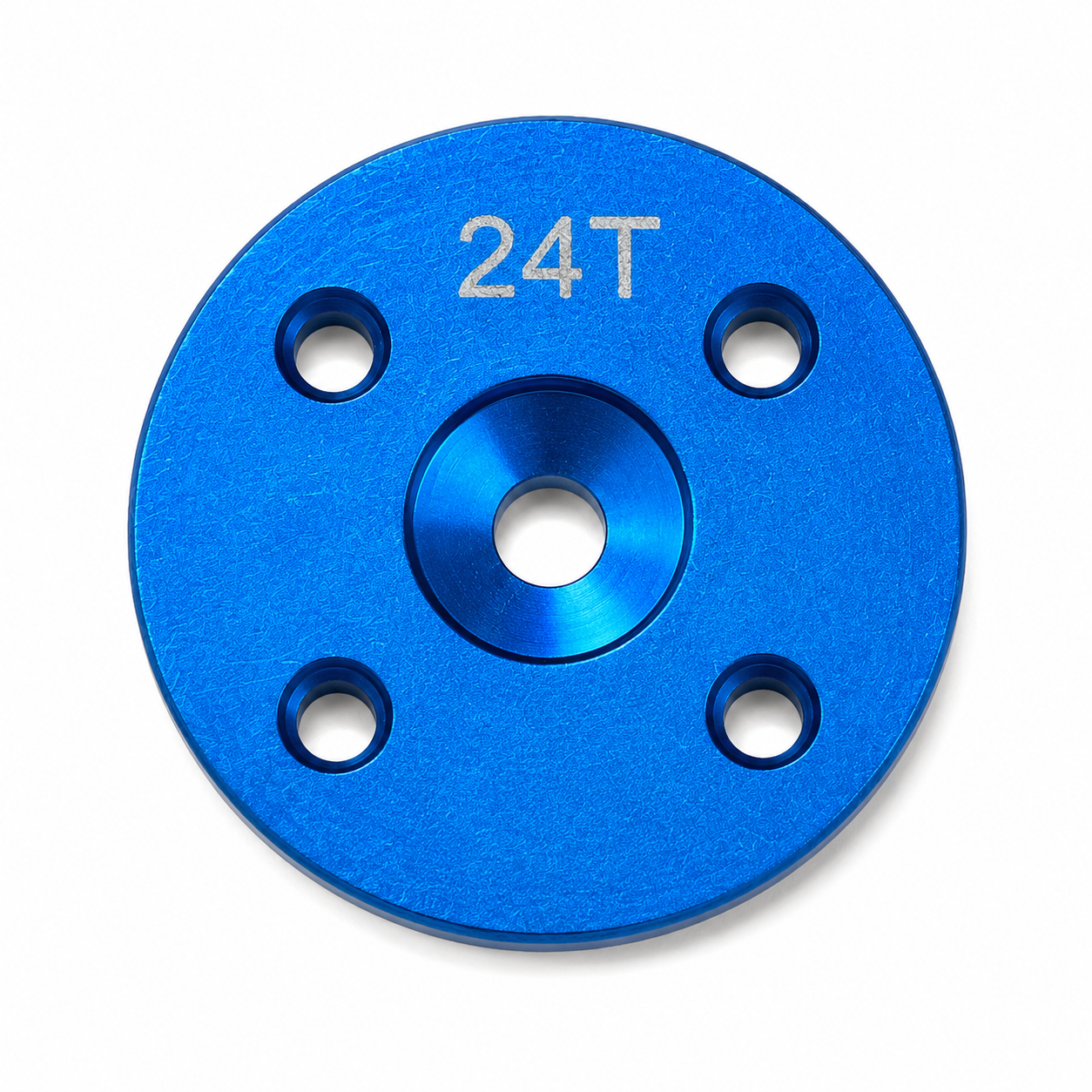

  • Vibrant Finish Options: Treated with a high-quality protective anodized layer, available in your choice of a Black or Blue finish.
  • Advanced Weight Control: Light but exceptionally strong design places a negligible 2.6g (0.09oz) footprint on your servo gears.
  • Hardware Adaptation: Clean internal threading makes it ideal for rapid, secure installation of ball links and heavy-duty control linkages.
  • Compact Profile: Circular design with an overall diameter of 24mm (0.94") fits neatly into restricted structural spaces.
View Technical Specifications
Brand: Gator RC
Spline Compatibility: 24T Spline Only
Center to Outer Hole: 9mm (0.35")
Overall Diameter: 24mm (0.94")
Hardware Size: 2.5mm / 4-40
Material: Aluminum
Available Colors: Black, Blue
Weight: 2.6g (0.09oz)

📦 Package Includes:

  • 1 × Gator RC Round Aluminum Servo Arm

💡 Modeler’s Tips

Round servo arms are ideal for setups that require uniform cable or pushrod tracking tension through the full range of deflection, such as pull-pull rudder configurations, throttle linkages, or specialty choke assemblies. When mating metal screws into these tapped holes, always apply a tiny drop of blue threadlock to prevent hardware backing out from airframe vibrations.
