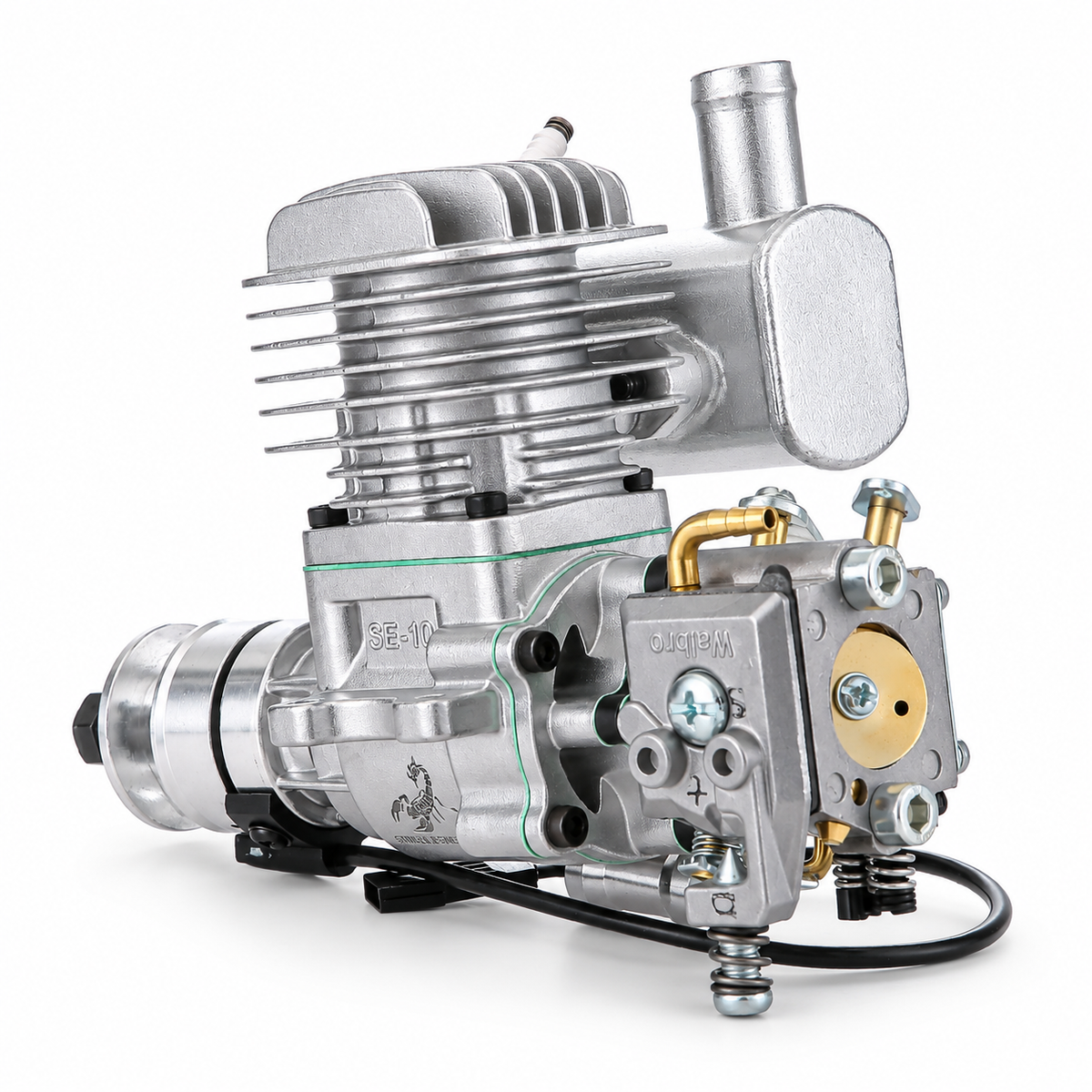

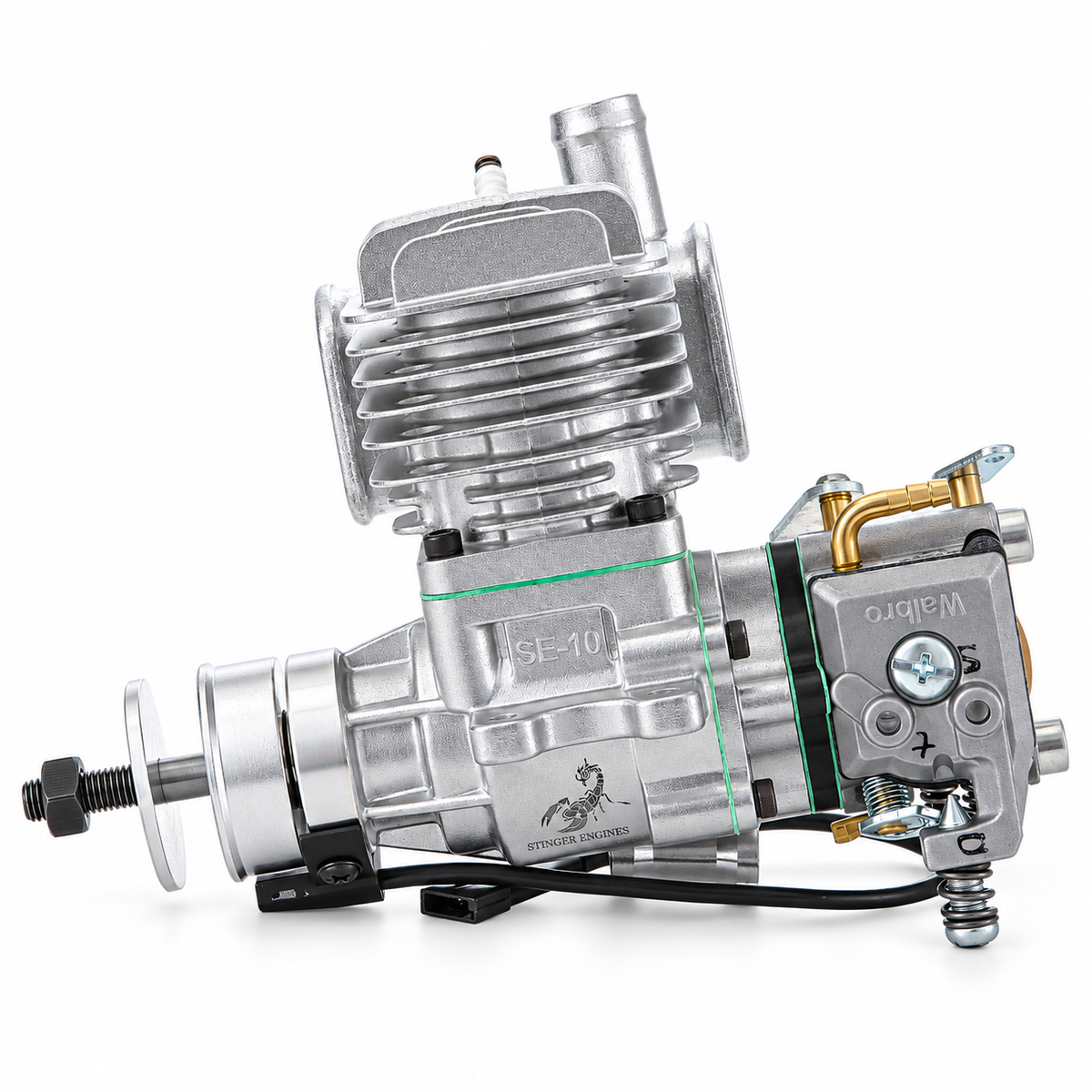

RCGF Stinger 10cc SE Side Exhaust Gas Engine

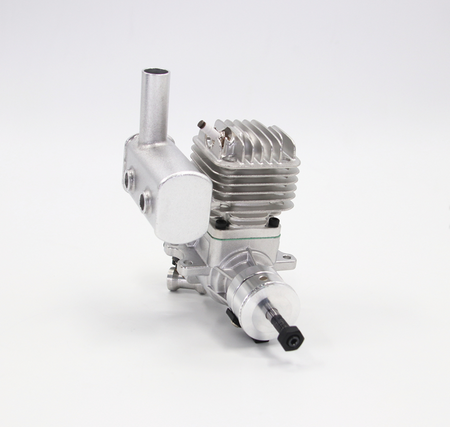

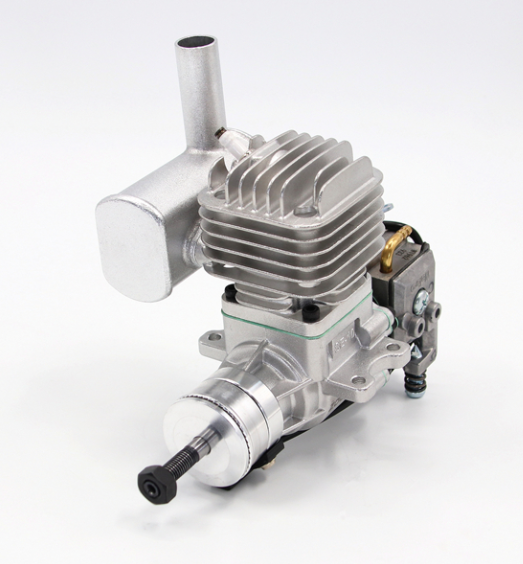

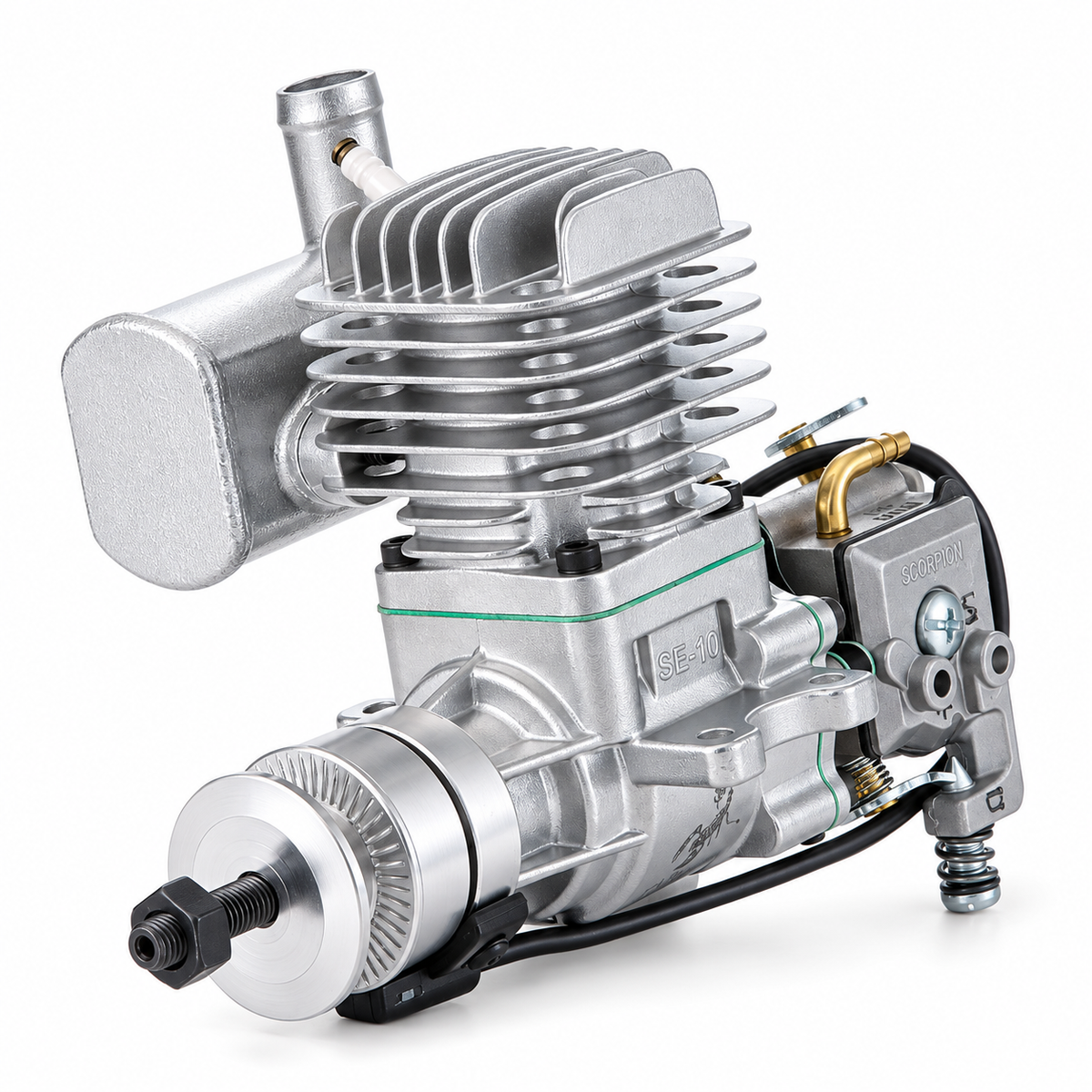

The RCGF Stinger 10cc SE is a compact, single-cylinder gasoline engine for compatible RC sport and scale airplanes. Its side-exhaust configuration gives builders a distinct exhaust layout to consider when planning engine and muffler clearance.
This two-stroke engine features a Walbro carburetor and DC-CDI electronic ignition with automatic timing advance. A muffler, spark plug, ignition module, and installation hardware are included.
🚀 Target Applications:
- RC sport airplanes and scale models requiring a compact 10cc gasoline engine
- Aircraft designs optimized for a traditional side-exhaust routing path
Key Features
- 10cc Gasoline Power: Compact displacement for compatible RC airplanes.
- Side Exhaust: SE configuration with an included muffler.
- Walbro Carburetor: Gasoline fuel metering.
- Electronic Ignition: DC-CDI system with automatic timing advance.
- Air-Cooled Cylinder: Finned construction requires adequate cooling airflow.
📋 Technical Specifications
| Engine Type | Single-cylinder, two-stroke gasoline |
| Displacement | 0.61 cu in (10cc) |
| Exhaust Configuration | Side exhaust |
| Bore × Stroke | 1.09 × 0.67 in (27.6 × 17 mm) |
| Manufacturer-Rated Output | 1.9 hp at 12,000 rpm |
| Carburetor | Walbro |
| Ignition | DC-CDI electronic ignition with automatic advance |
| Recommended Propellers | 13 × 6, 13 × 7, 13 × 8, 14 × 6 in |
| Break-In Propellers | 13 × 7 or 14 × 6 in, two-blade |
| Cooling | Air cooled |
| Engine Weight | 16.5 oz (468 g) |
| Muffler Weight | 1.4 oz (40 g) |
| Ignition Module Weight | 4.1 oz (115 g) |
| Combined Listed Weight | 22.0 oz (623 g) |

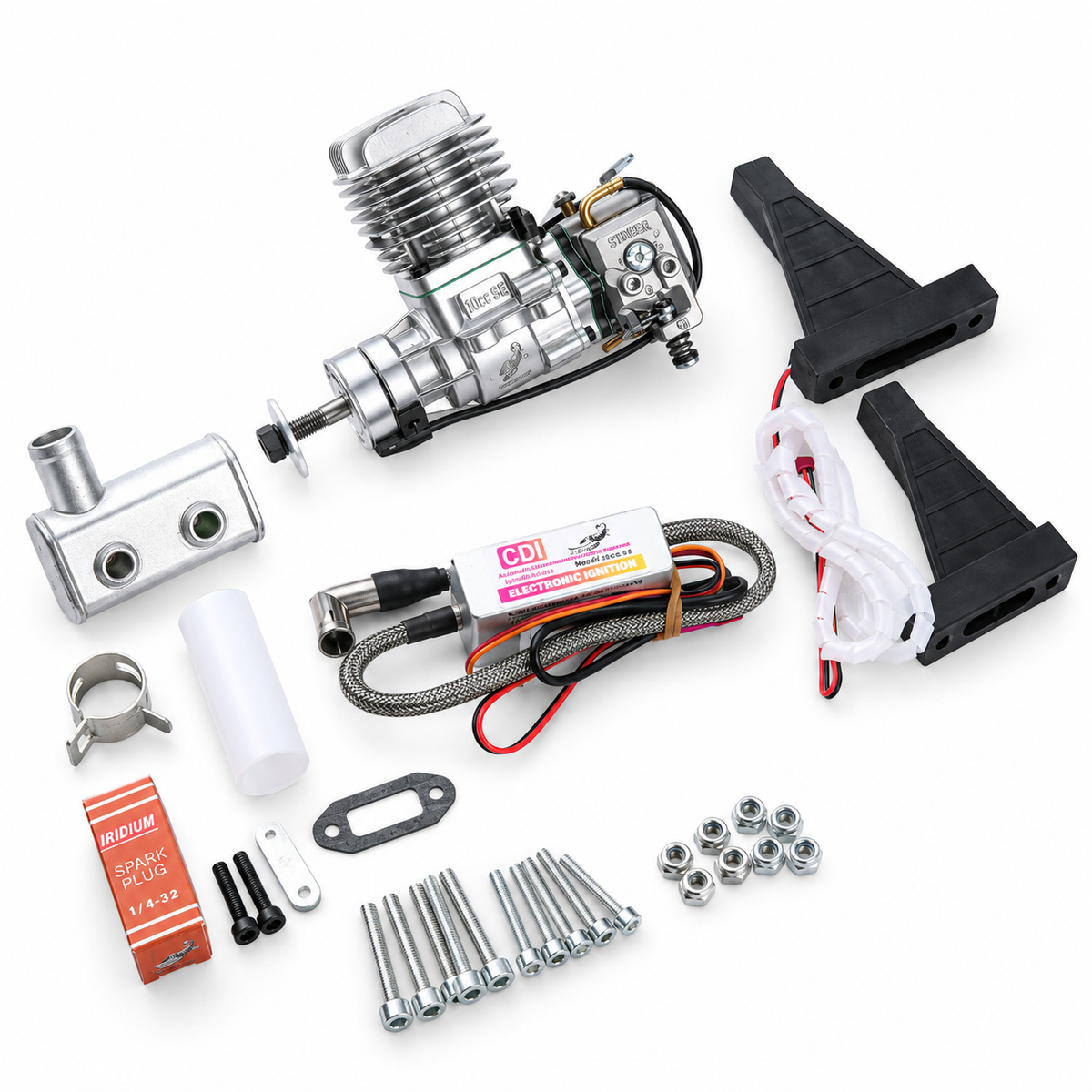

📦 Package Includes:
- 1 × Stinger 10cc SE engine
- 1 × Electronic CDI ignition module
- 1 × Muffler
- 1 × Spark plug
- Gaskets and bolts
- 1 × Throttle arm extension
- 1 × Instruction manual
💡 Installation and Operation

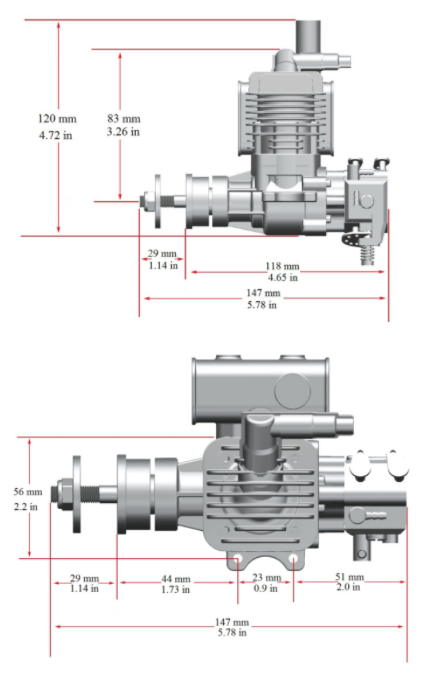

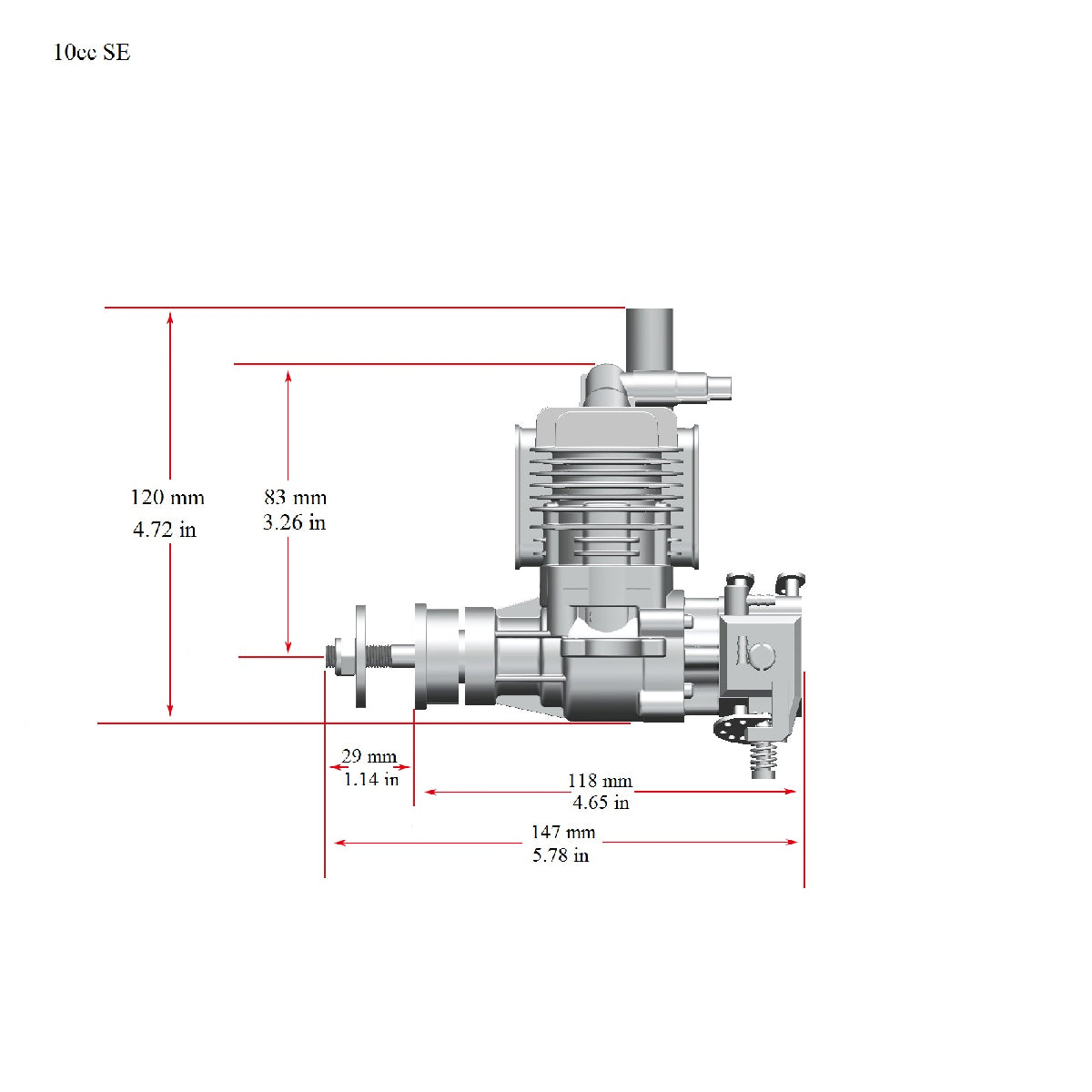

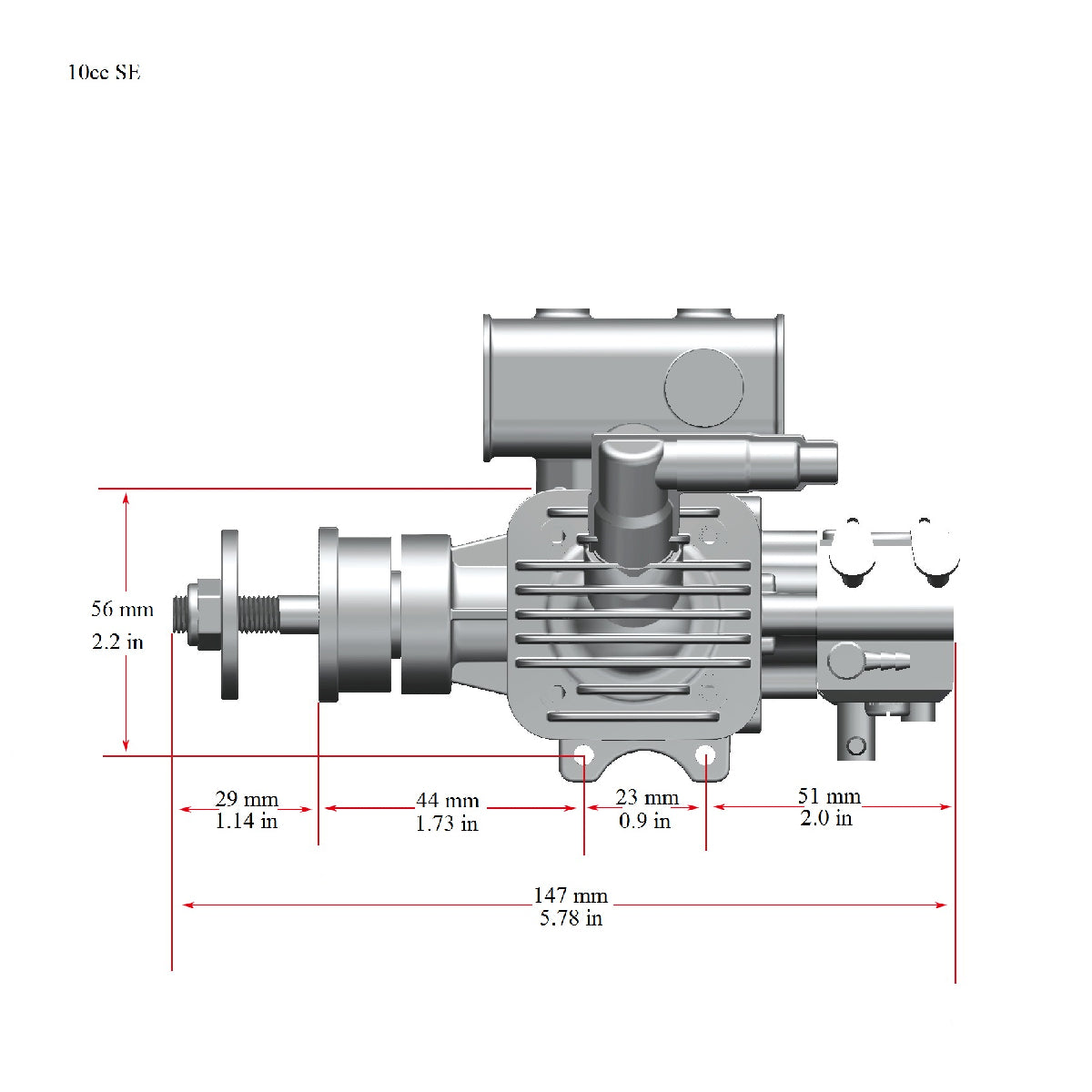

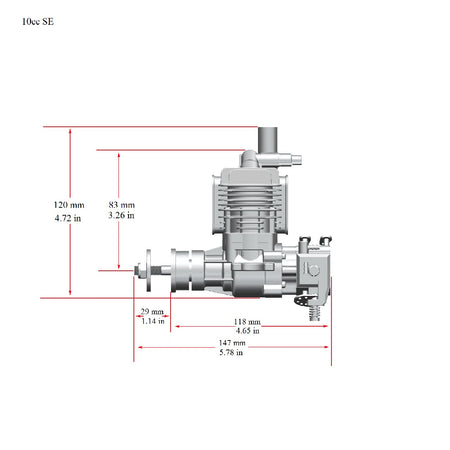

Check your aircraft’s engine requirements, mounting dimensions, propeller clearance, and side-muffler clearance before installation. Follow the supplied manual and ignition-module labeling for battery voltage, fuel mixture, break-in procedures, and replacement spark-plug requirements.
Prefer rear exhaust? See the absolute path Stinger 10cc RE Rear Exhaust Gas Engine.
