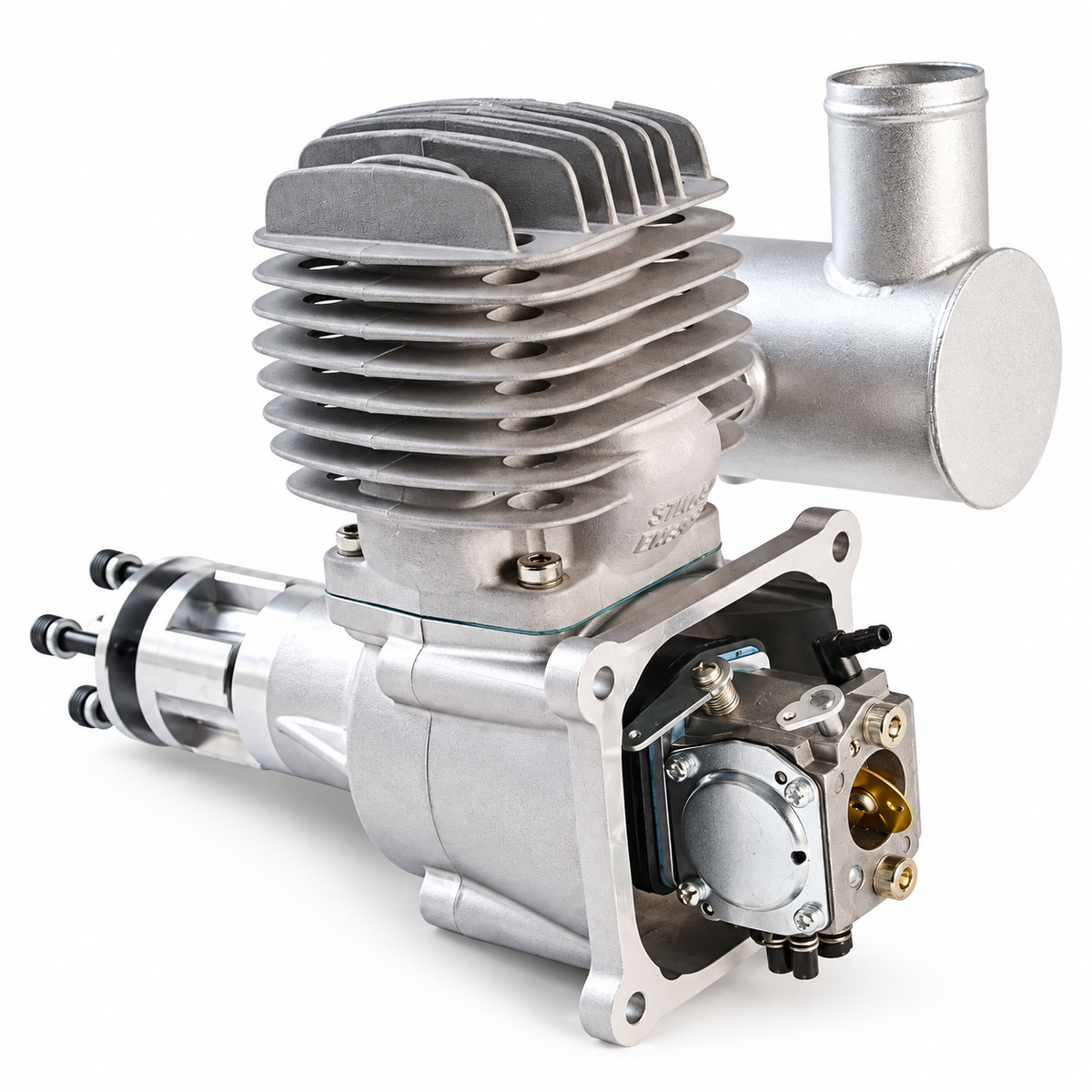

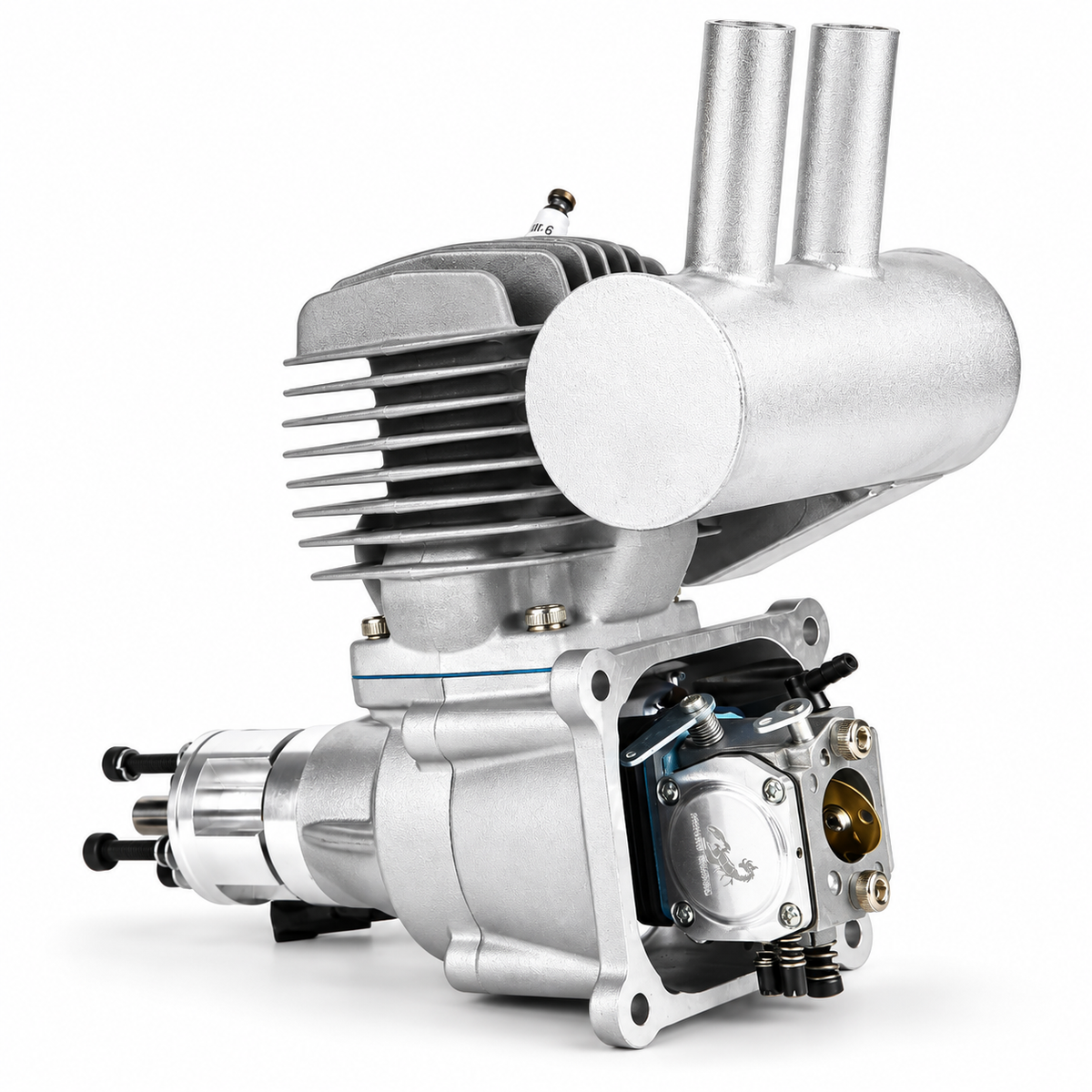

RCGF Stinger Pro 63cc SE Gas Engine with Stock Muffler
Couldn't load pickup availability
RCGF Stinger Pro 63cc SE Gas Engine with Stock Muffler
The RCGF Stinger Pro 63cc SE is a single-cylinder, two-stroke gasoline engine for large-scale RC airplanes. With a manufacturer-rated maximum output of 6.5 horsepower, it combines a ceramic-plated cylinder, Walbro carburetor, and electronic ignition in a side-exhaust configuration.
This version includes the stock muffler, electronic CDI ignition, spark plug, and installation hardware listed below. It is designed for aircraft calling for a 63cc gasoline engine, subject to the airframe manufacturer's engine, weight, and installation requirements.
Key Features
- 63cc displacement: Gasoline power for compatible large-scale RC aircraft.
- Side exhaust: Supplied with the standard stock muffler.
- Ceramic-plated cylinder: A feature of the Stinger Pro engine design.
- Walbro carburetor: Provides fuel metering and mixture adjustment.
- Electronic ignition: Stinger DC-CDI system with computer-controlled automatic ignition advance.
- Angled spark plug: Uses an NGK CM6 spark plug or equivalent.
- Air cooling: Finned cylinder for cooling airflow.
Specifications
| Model | RCGF Stinger Pro 63cc SE |
|---|---|
| Gator RC SKU | STNG-63-SE |
| Engine Type | Single-cylinder, two-stroke gasoline engine |
| Displacement | 3.84 cu in (63cc) |
| Bore | 1.85 in (47 mm) |
| Maximum Output | 6.5 hp, manufacturer rated |
| Operating Speed | 1,500–7,500 rpm |
| Exhaust Configuration | Side exhaust with stock muffler |
| Carburetor | Walbro |
| Ignition | Stinger DC-CDI electronic ignition with automatic advance |
| Spark Plug | NGK CM6 or equivalent |
| Listed Ignition Supply Range | 7.4–14V; verify the requirements of the supplied ignition module before connecting a battery |
| Recommended Propellers | 23 × 10, 24 × 8, 24 × 9, or 24 × 10 in |
| Listed Break-In Propeller | 24 × 9 in, two-blade |
| Cooling | Air cooled |
| Engine Weight | Approximately 49.4 oz (1,400 g) |
| Listed Muffler Weight | Approximately 6.0 oz (170 g) |
| Listed Ignition Weight | Approximately 4.6 oz (131 g) |
| Combined Listed Weight | Approximately 60.0 oz (1,701 g), engine, muffler, and ignition |
What's Included
- RCGF Stinger Pro 63cc SE engine
- Stock muffler
- Electronic CDI ignition module
- Spark plug
- Gaskets and bolts
- Throttle arm extension
- Instruction manual
Required to Operate
- Gasoline mixed with suitable two-stroke engine oil
- Ignition battery compatible with the supplied ignition module
- Appropriate gasoline-engine propeller
- Compatible aircraft fuel system and installation equipment
Fuel, Break-In, and Installation
Follow the instruction manual supplied with your engine for fuel-to-oil ratio, break-in procedure, carburetor adjustment, and ignition battery selection. Use high-quality two-stroke engine oil suitable for the manufacturer's requirements.
RCGF's stock-muffler product page specifies a dedicated ignition battery and advises against using a BEC, iBEC, or uBEC. Confirm the instructions for the ignition module supplied with your engine.

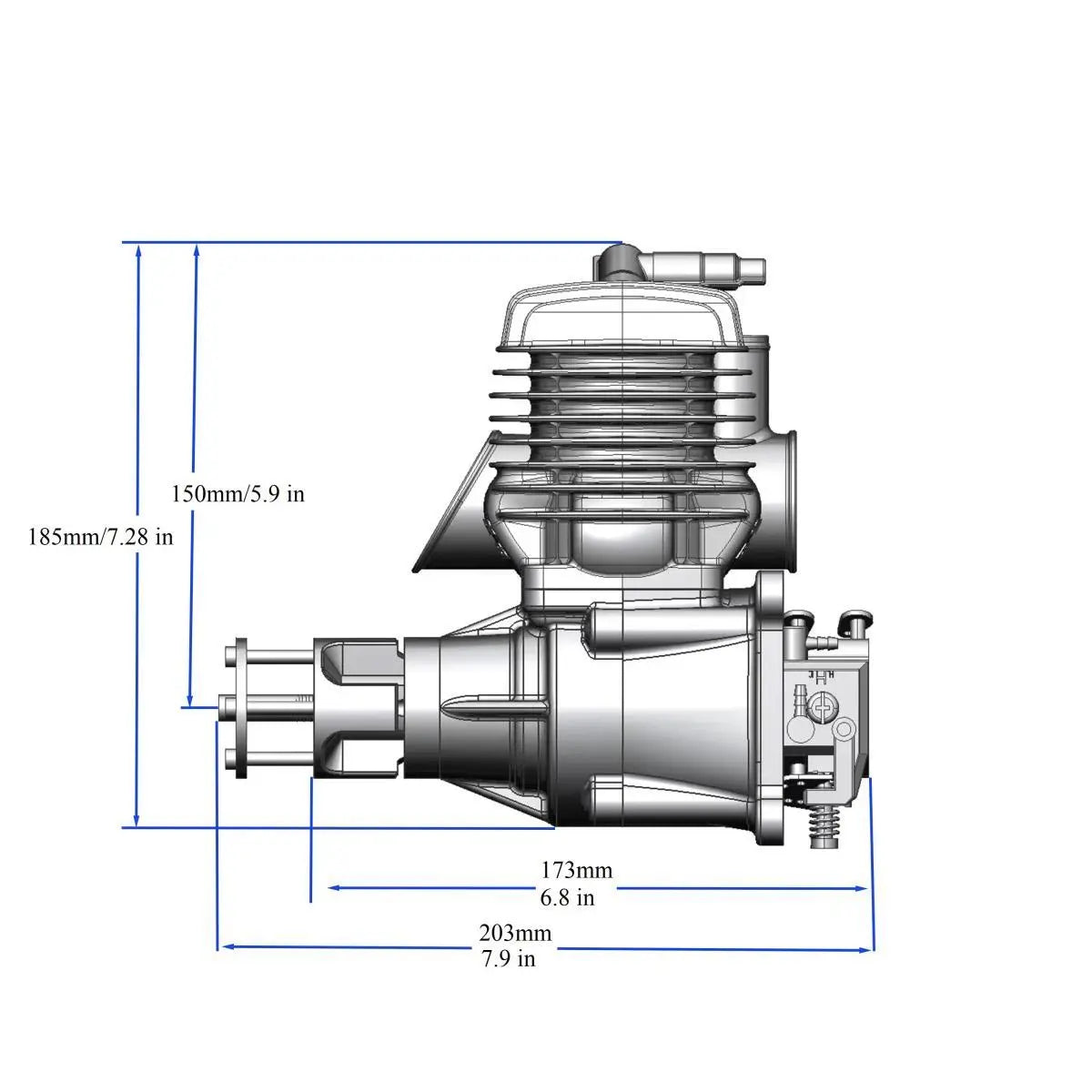

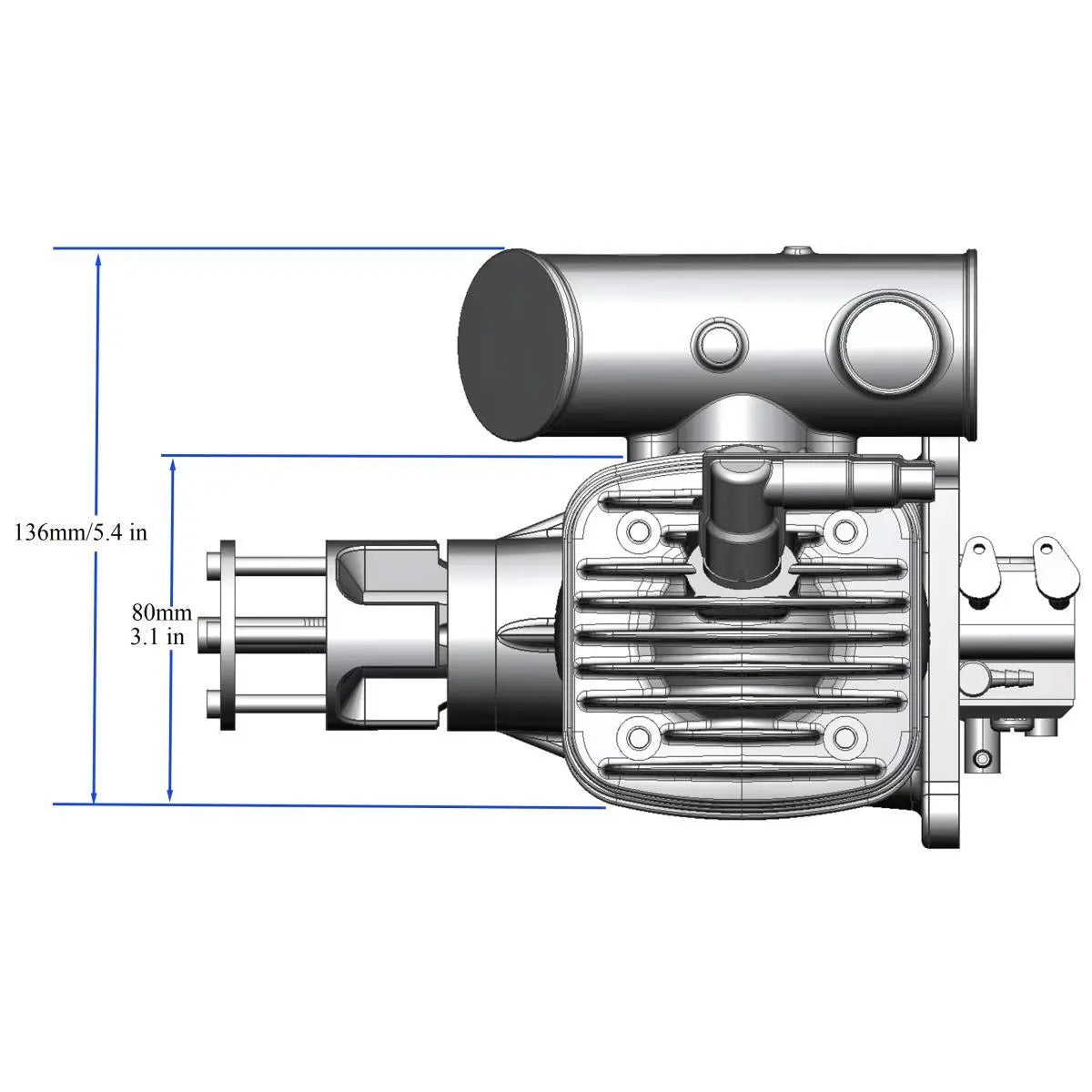

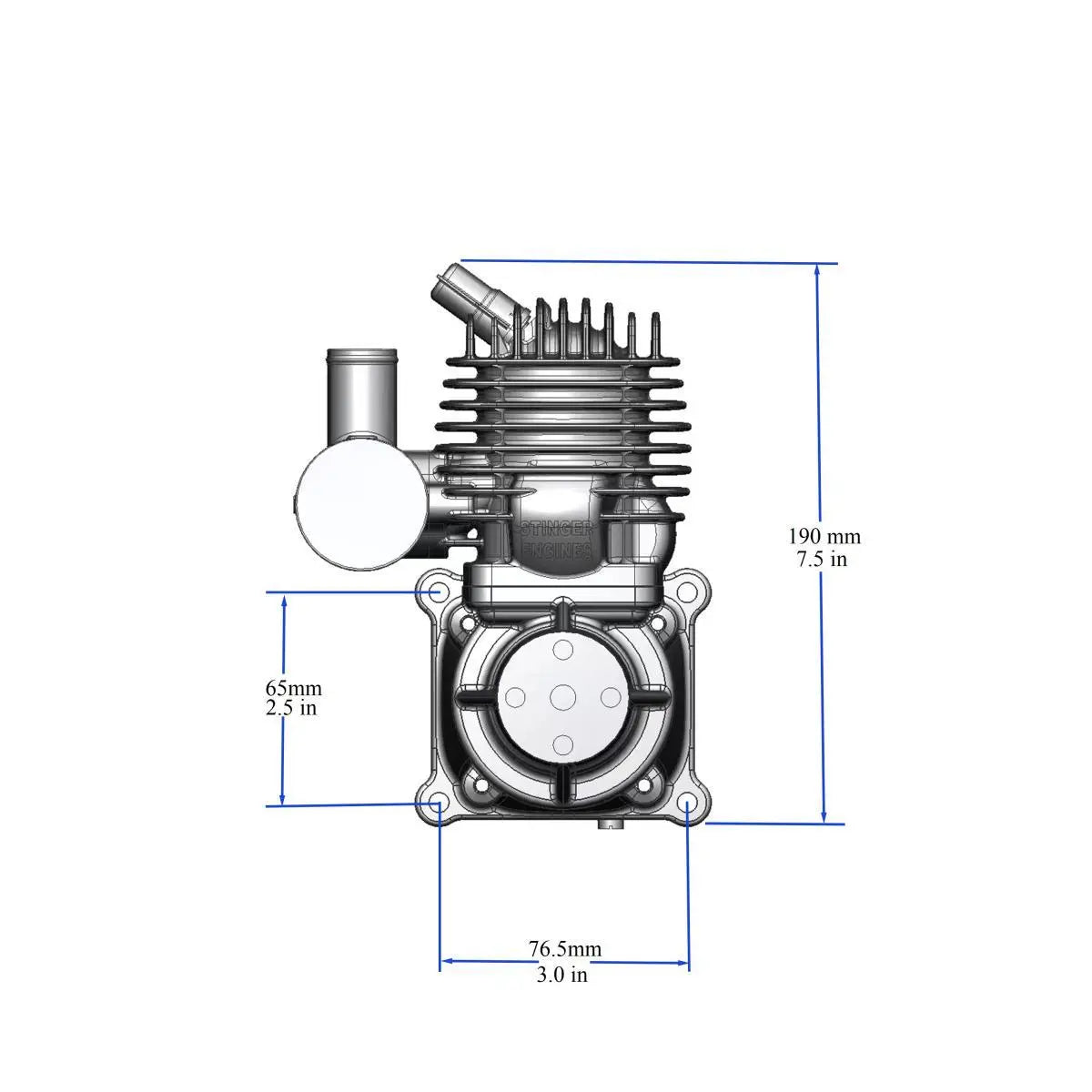

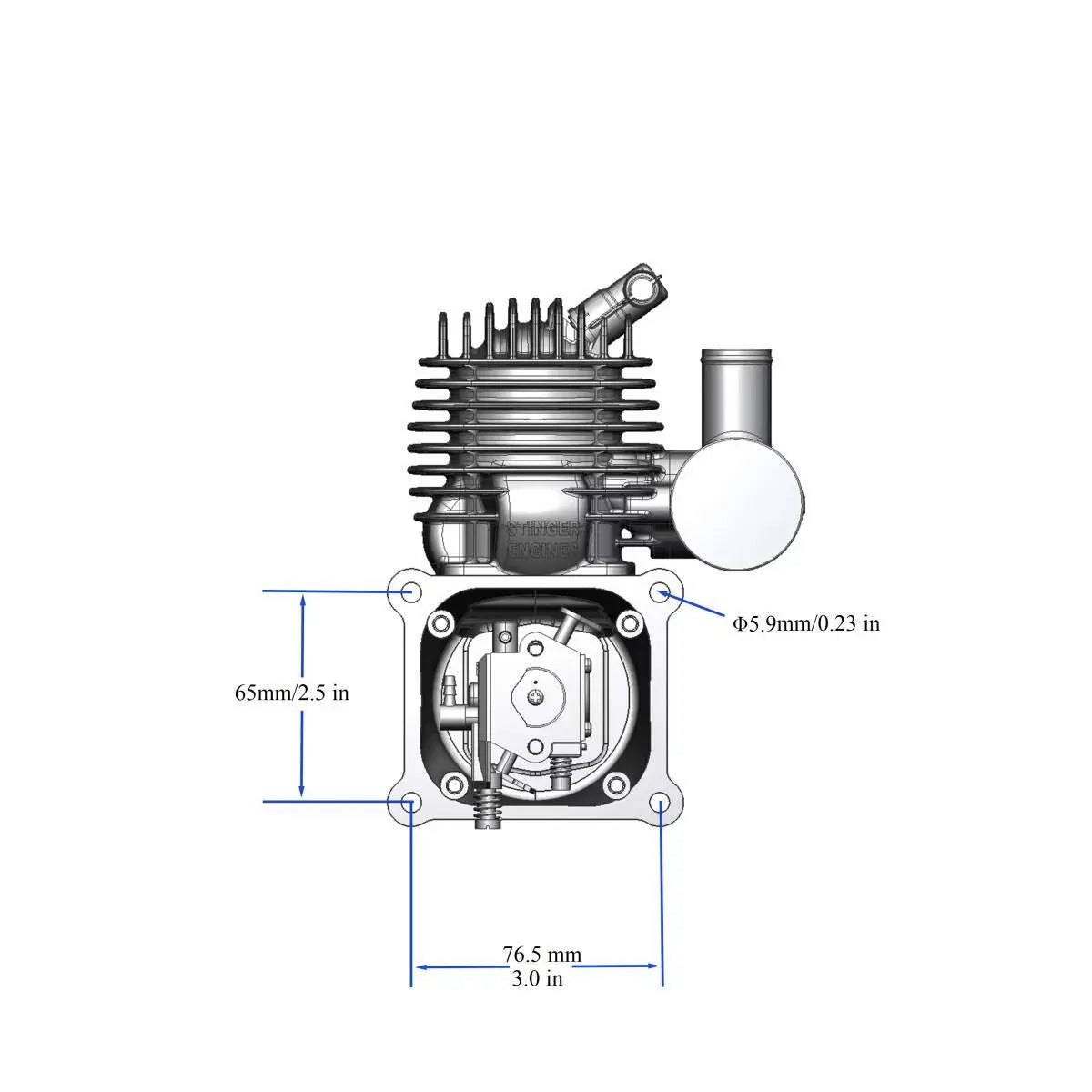

Before installation, check engine mounting dimensions, propeller clearance, muffler clearance, cooling airflow, and the aircraft's center of gravity. Choose a propeller within the manufacturer's recommendations and the airframe's operating limits.
