SwiWin SW240B - 52.9lb/24kg output Turbine engine (Special Order)

Out of stock
SKU: SW240B
(0)
$3,350.00

Note: These are custom-ordered items. We bring them in and they are bench tested by Swiwin USA. The normal turnaround time for delivery is 2 to 3 weeks.

 We find this is the best way to provide the motors so you get the very newest upgrades all the time.

 If you have questions about availability please inquire first.



SwiWin SW240B - 52.9lb/24kg output Turbine engine (Special Order)


Product Description

Swiwin SW240B 24KG w/ Brushless Pump

  • Compact and Lightweight

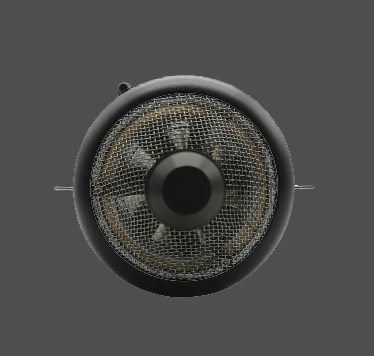

  • Built-in FOD Screen
  • Brushless Starter
  • Color Screen GSU
  • 32Bit Auto Restart ECU
  • Brushless Fuel Pump

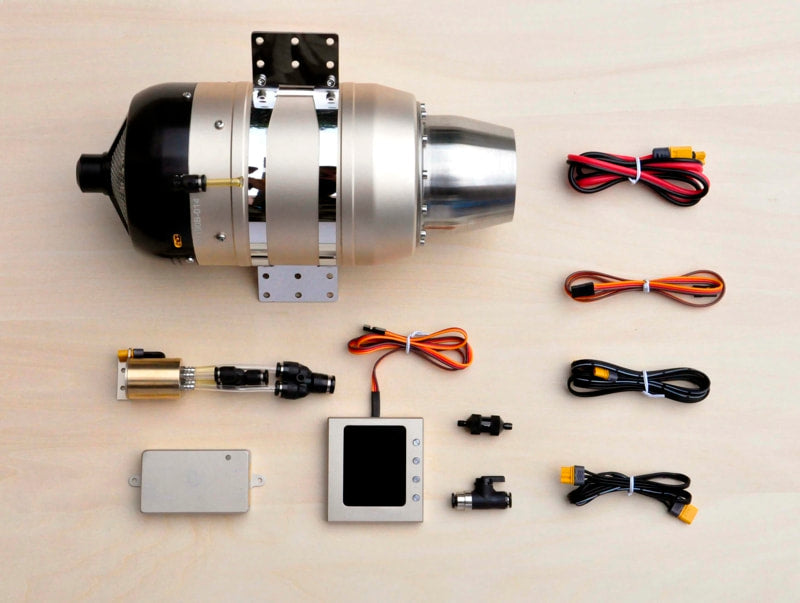

Package Includes

  • 1x Engine
  • 1x ECU (Engine Control Unit)
  • 1x GSU (Ground Station Unit)
  • 1x Fuel Pump (Brushless)
  • 1x On/Off Fuel Valve Festo Fitting
  • 1x Inline Fuel filter
  • 1x Fuel Line
  • 1x Turbine to ECU Cable
  • 1x Power Cable
   Specifications

Thrust 24 kg / 53 lb
RPM Range 38,000 r/min ～ 118,000 r/min
Rated Exhaust Temperature 760℃ / 760~1400℉
Fuel Consumption 20 oz/min @ 90% Power 110,000 RPM
Fuel Kerosene, Jet-A, or diesel
Lubrication 5% kerosene, Jet-A, or 3% diesel
Start Full auto-start
Restart Auto-restart
Weight 1700 g / 60 oz / 3.75 lbs

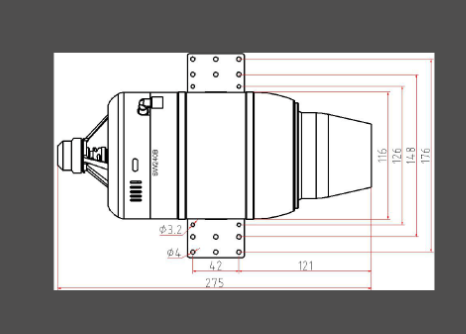

Diameter 116mm / 4.57 in
Length 280mm / 11.02 in
Maintenance Interval Every 25 hours
ECU Supply 3 cell lipo
Total Weight 2000 g / 70.5 oz / 4.4 lbs
