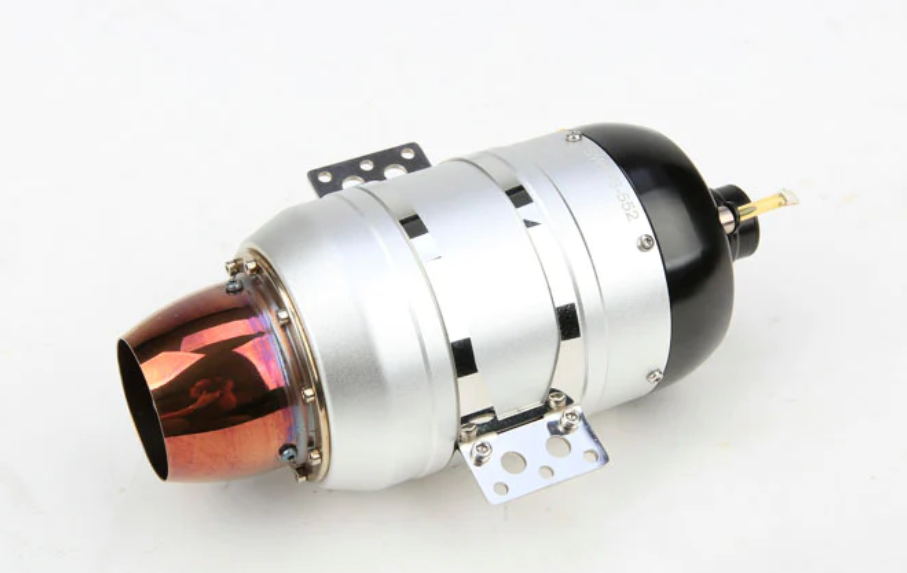

SWIWIN TURBINE MOTOR SW80B - 17.98lb/8kg output (Special Order)

Note: These are custom-ordered items. We bring them in and they are bench tested by Swiwin USA. The normal turnaround time for delivery is 2 to 3 weeks.

 We find this is the best way to provide the motors so you get the very newest upgrades all the time.

 If you have questions about availability please inquire first.

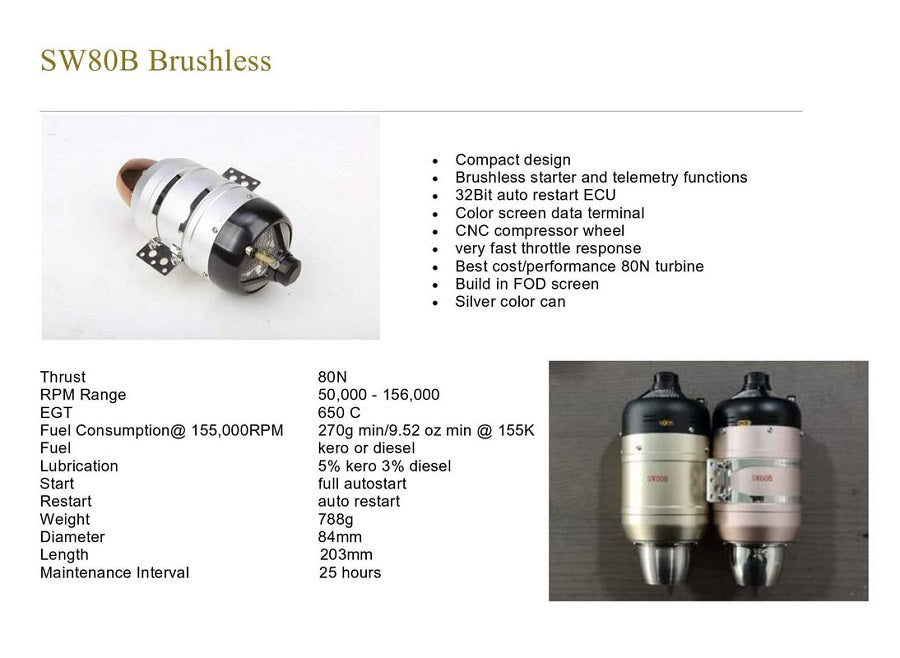

• DESCRIPTION
  • Compact design
  • Brushless starter
  • Brushless pump
  • telemetry functions
  • 32Bit auto restart ECU
  • Color screen data terminal
  • CNC compressor wheel
  • very fast throttle response
  • Best cost/performance 80N turbine
  • Build in FOD screen
  • Silver/Rose Gold color can

  Thrust                                                   80N
  RPM Range                                          50,000 - 155,000
  EGT                                                       650 C
  Fuel Consumption                               270g/min
  Fuel                                                        kero or diesel
  Lubrication                                            5% kero 3% diesel
  Start                                                       full autostart
  Restart                                                   auto restart
  Weight                                                   765g

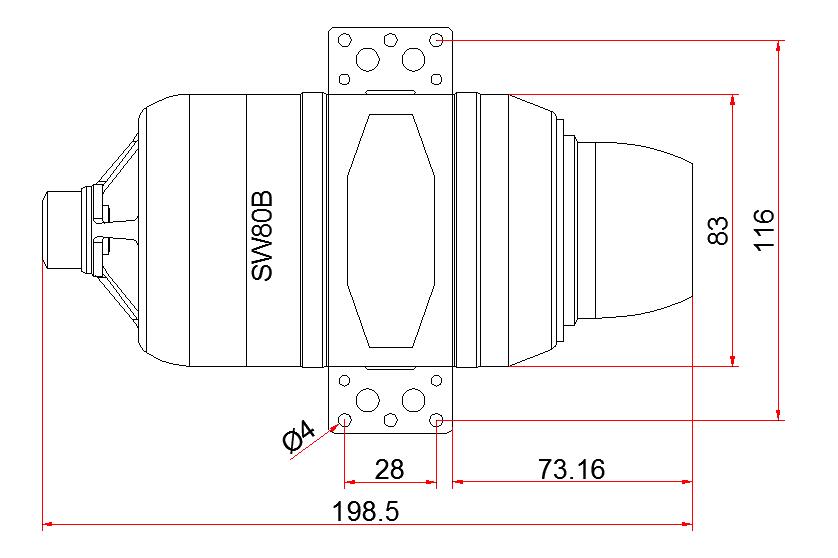

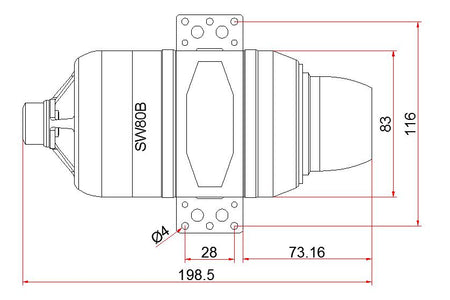

  Diameter                                               83mm
  Length                                                    198mm
  Maintenance Interval                            25 hours

 Warranty and all repair work are performed in Buffalo New York by a very responsible company.

First Year Warranty

First-year warranty coverage begins the day you receive your motor.  1st-year warranty is stem to stern with the exception of exclusions which are covered in our manual.  Examples of non-covered damage are crashes, water damage (flood), FOD, Damage, etc.

SWIWIN 25 hour service (with warranty or maintenance)

In order to maintain lifetime coverage, please maintain 25-hour service intervals. The cost of the service is $300.00.  During this service, the motor is examined for any sign of wear.  Bearings are changed and the unit is re-balanced.  Any needed, warranted parts are replaced with the service.  For items not covered under warranty, the owner will be contacted before any work is commenced in order to discuss any estimated costs.    Please refer to our manual for more warranty and service interval details and exclusions.

Motors that are not maintained at regular 25-hour maintenance will be serviced at standard CRX Time and Materials rates.

Optional Replacement of Glowplug - A glow plug is equivalent to a light bulb.  We know that sooner or later that the plug will begin to fail and will later burn out.  Unfortunately, a glow plug requires more work to get to and to re-balance the engine than does a bearing change so it is recommended to change the glow-plug at the time of service.  Talk to us about having your glow plug changed when your motor is in for service.
​
Exclusions to Warranty

Warranty and/or extended coverage does not apply under the following circumstances:
​

1. The turbine is used for commercial or institutional (school) use
2. The turbine was submerged in water
3. The turbine has been modified in any fashion, i.e., mechanical or electrical
4. Any attempt to repair
5. Any dismantling of the turbine
6. Any crash regardless of the cause
7. The turbine was not cooled properly
8. Improper electrical connections
9. The Turbine serial number has been removed or altered.
10. The turbine is found to have been operated with 2 cycle oil
