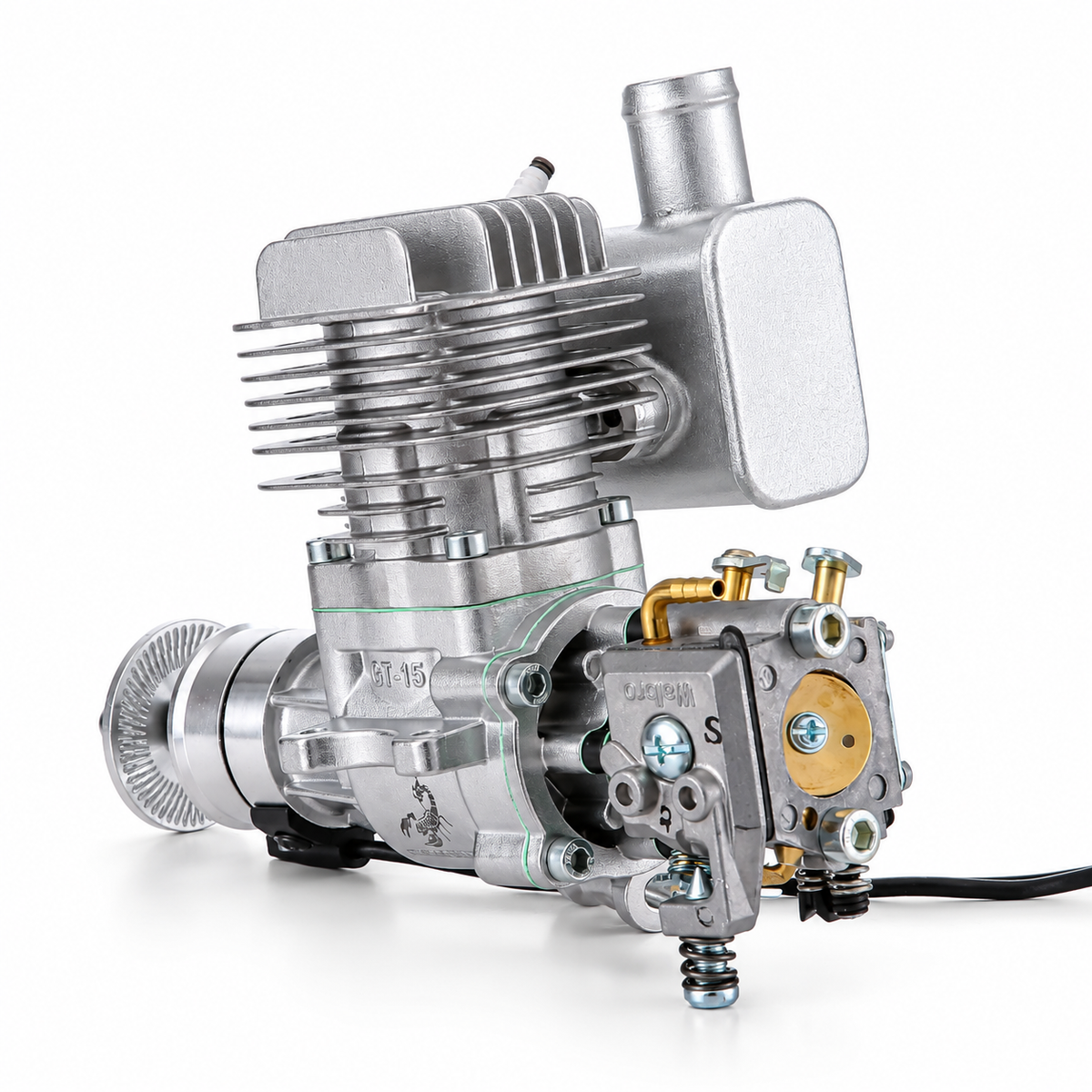

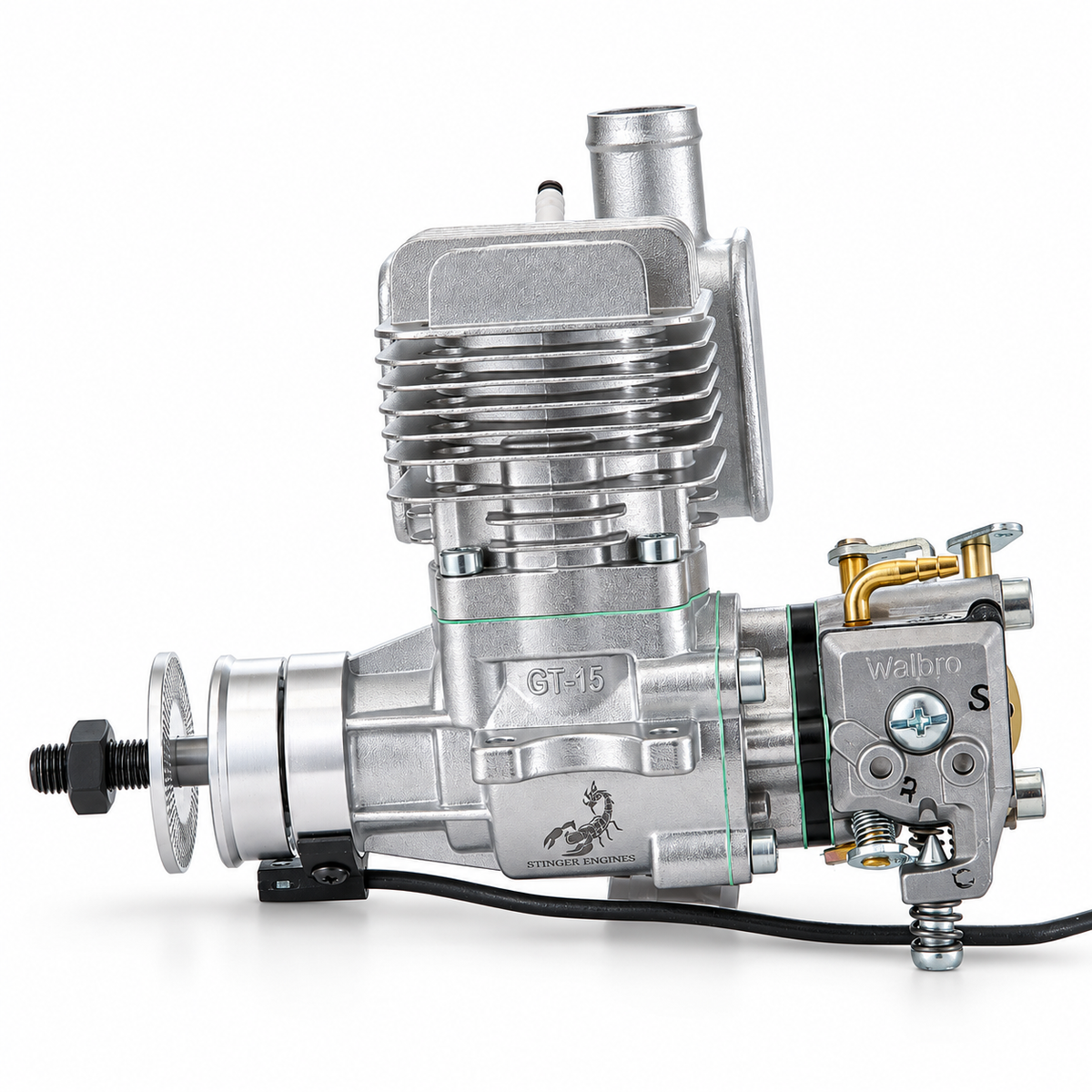

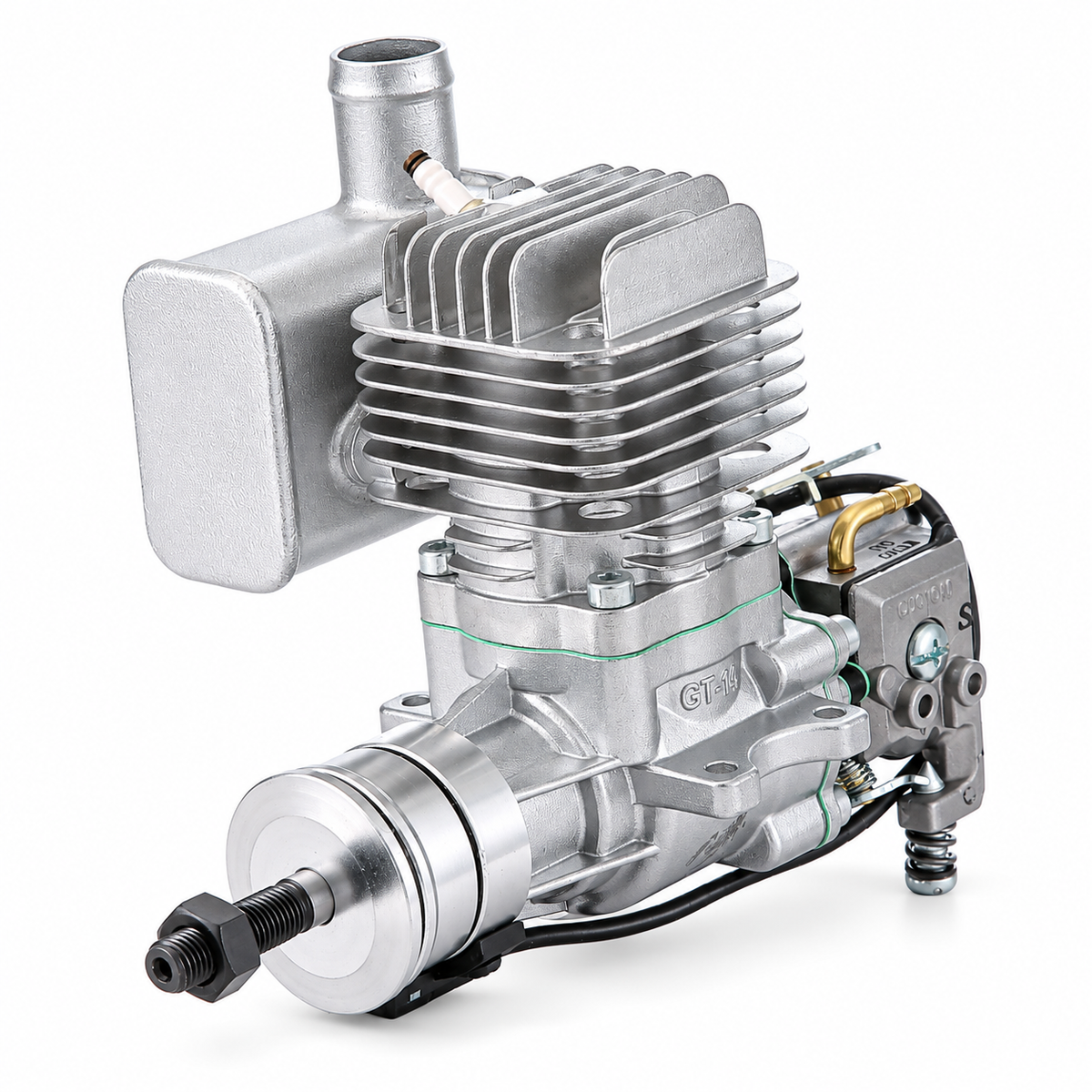

Stinger 15cc SE Side Exhaust Gas Engine

The Stinger 15cc SE is a single-cylinder, two-stroke gasoline engine for RC airplanes. Its side-exhaust configuration, Walbro carburetor, and electronic ignition provide a compact gasoline power option for compatible sport and scale aircraft.

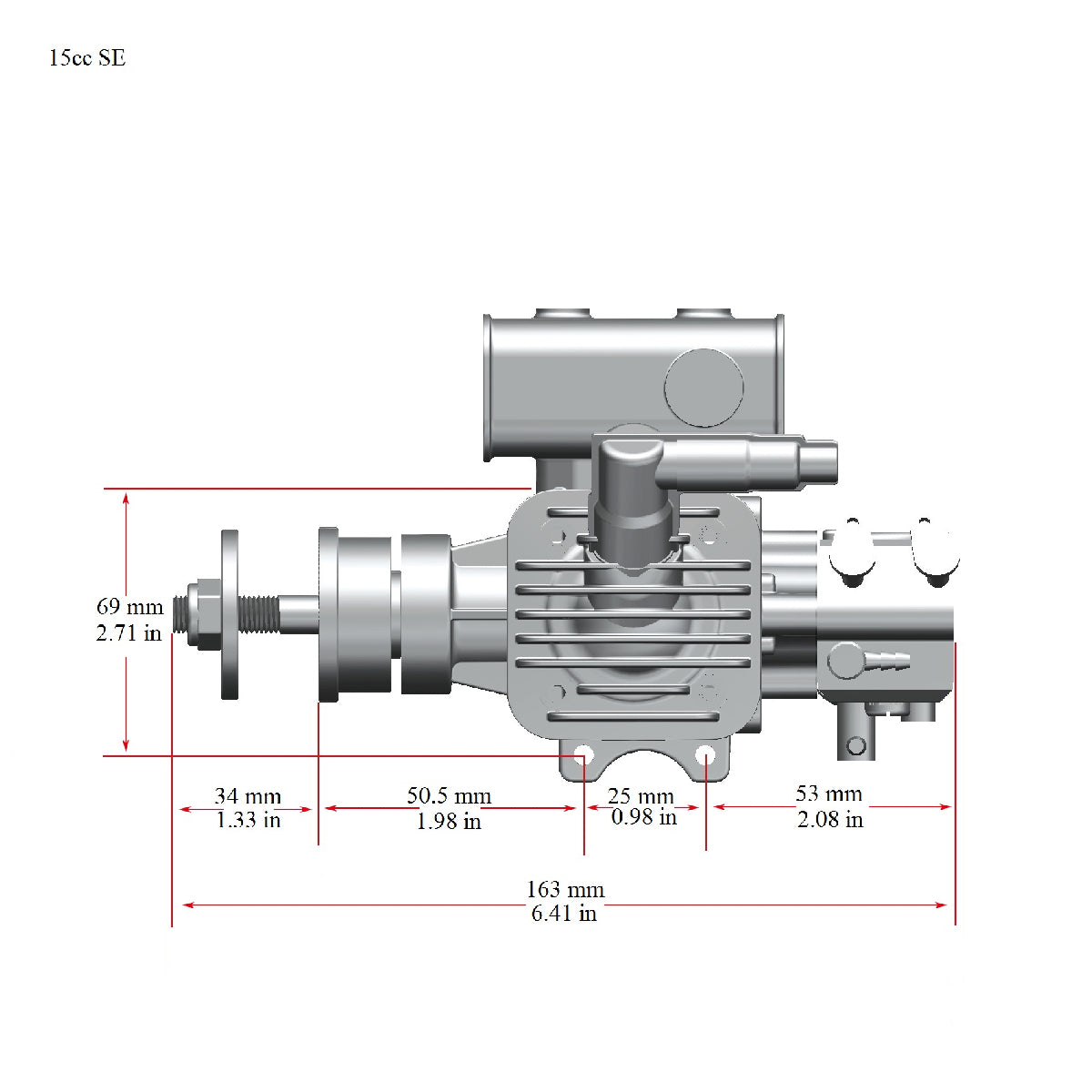

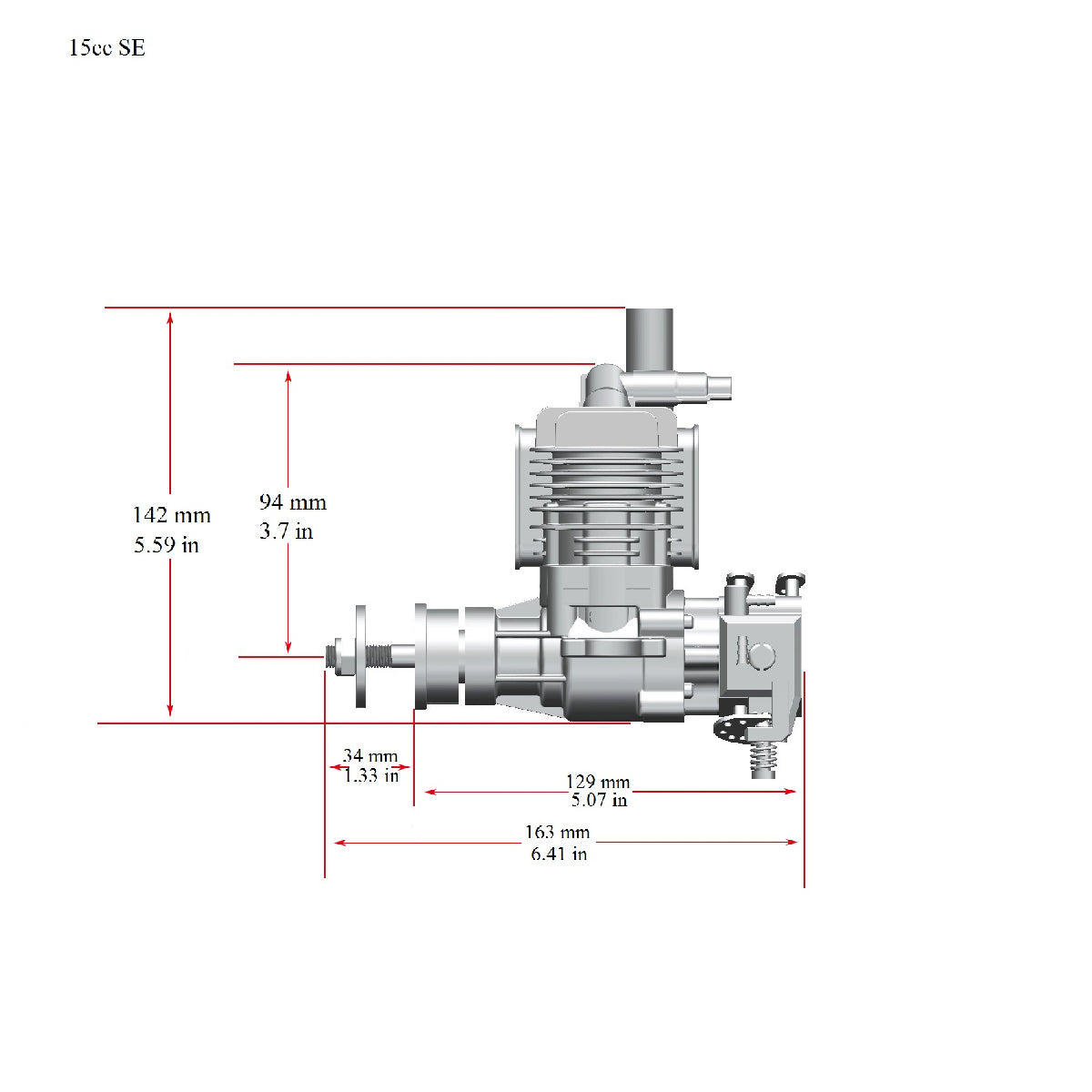

Rated at 2.4 horsepower, this air-cooled engine includes a muffler and CDI ignition system. Check your aircraft’s engine requirements, mounting dimensions, propeller clearance, and exhaust clearance before installation.

Key Features

  • Side exhaust: SE configuration with an included muffler.
  • Walbro carburetor: Gasoline fuel metering.
  • Electronic ignition: DC-CDI system with automatic timing advance.
  • Air-cooled design: Requires adequate cooling airflow through the cowling.

Specifications

Engine Type Single-cylinder, two-stroke gasoline
Displacement 0.92 cu in (15cc)
Exhaust Configuration Side exhaust
Bore × Stroke 1.26 × 0.77 in (32 × 19.6 mm)
Maximum Output 2.4 hp (1.76 kW)
Operating Speed Range 1,500–15,000 rpm
Listed Idle Speed 1,800 rpm
Carburetor Walbro
Ignition DC-CDI electronic ignition with automatic advance
Recommended Propellers 13 × 6, 13 × 8, 14 × 6, 15 × 6, 15 × 8 in
Break-In Propeller 15 × 6 in, two-blade
Cooling Air cooled
Engine Weight 21.0 oz (594 g)
Muffler Weight 1.8 oz (51 g)
Ignition Module Weight 4.4 oz (125 g)
Combined Listed Weight 27.2 oz (770 g)

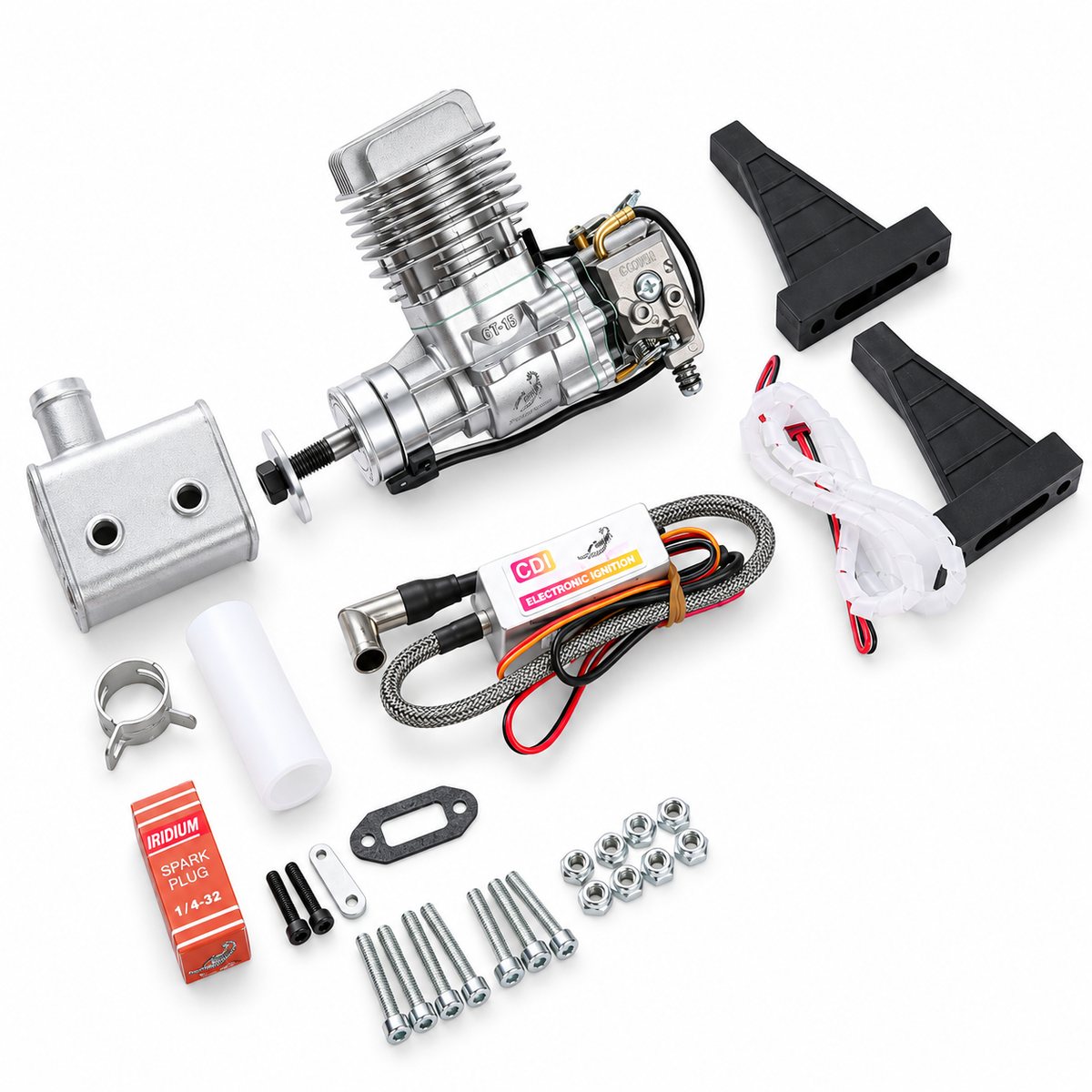

Included

  • Stinger 15cc SE engine
  • Electronic CDI ignition module
  • Muffler and spark plug
  • Gaskets and bolts
  • Throttle arm extension
  • Instruction manual

Required Separately

  • Gasoline and suitable two-stroke oil
  • Compatible ignition battery
  • Appropriate propeller

Follow the supplied manual and ignition-module labeling for battery requirements, fuel mixture, break-in procedures, and spark-plug replacement.

Need a different exhaust layout? See the Stinger 15cc RE Rear Exhaust Gas Engine.
