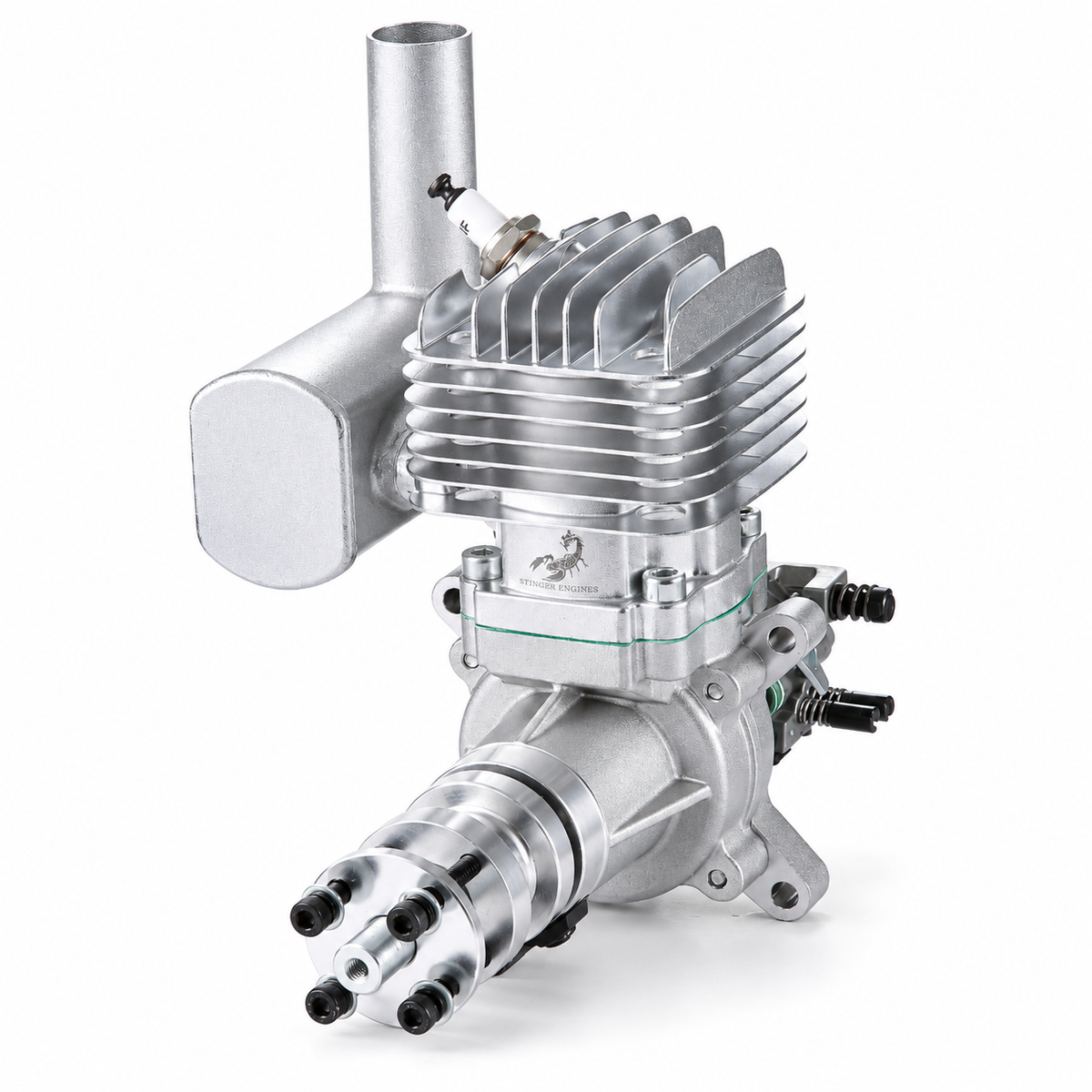

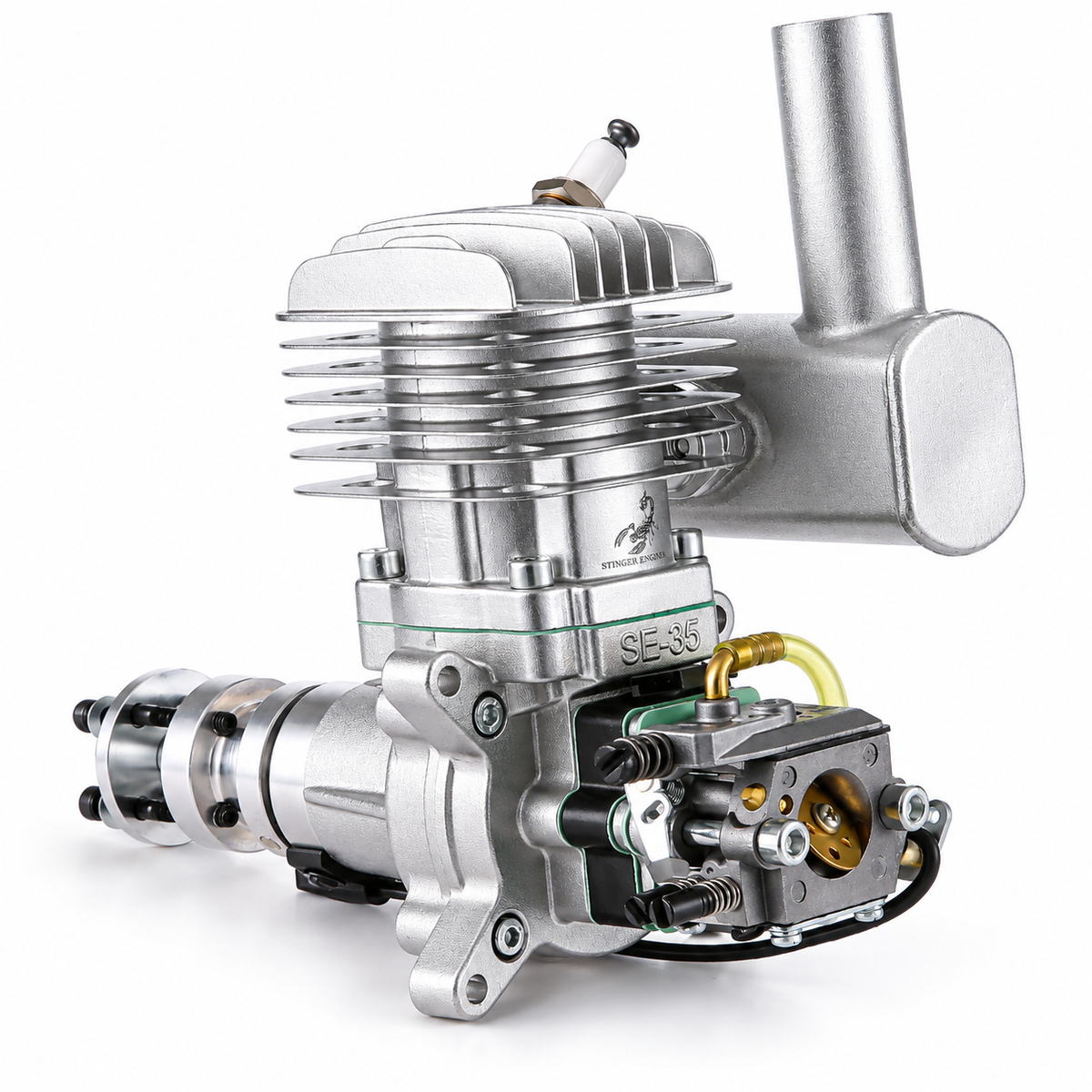

Stinger 35cc SE Gas Engine – Side Exhaust
Couldn't load pickup availability

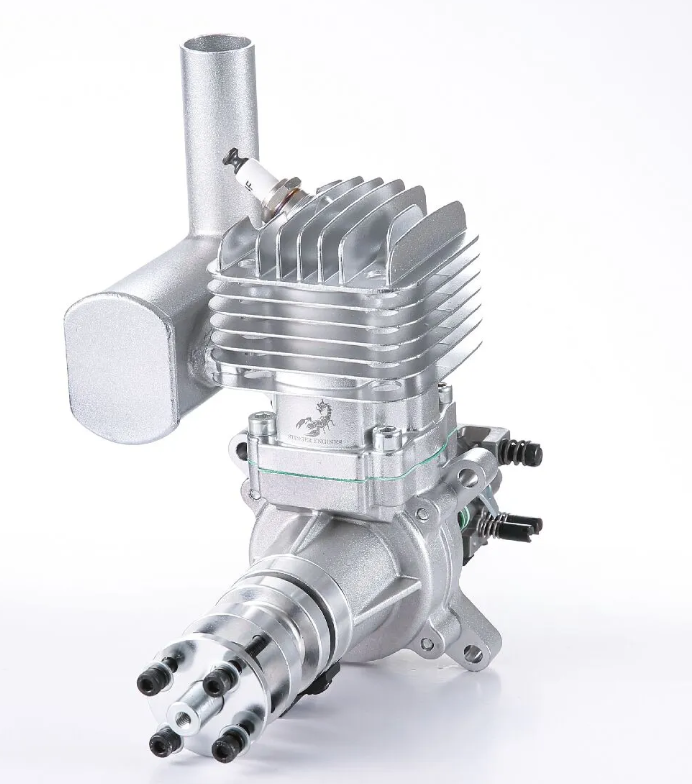

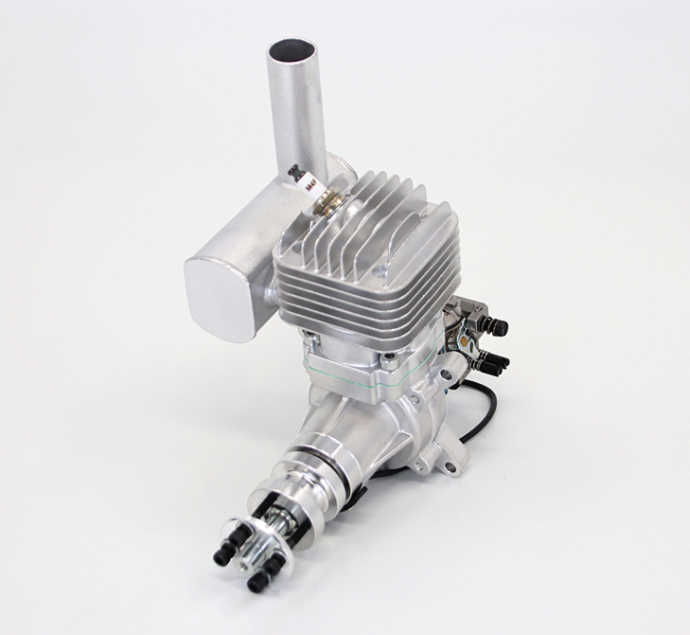

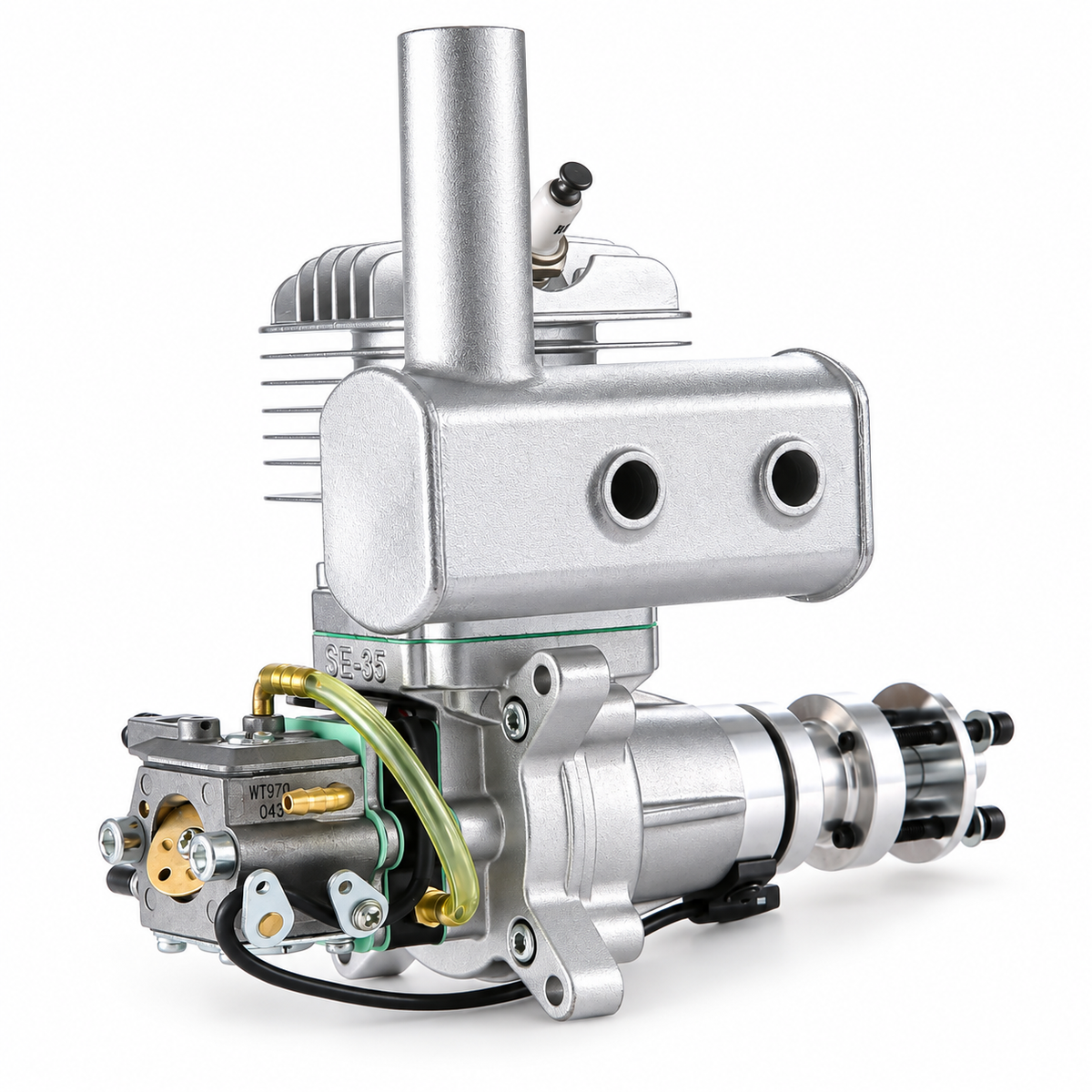

RCGF Stinger 35cc SE Side Exhaust Gas Engine
The RCGF Stinger 35cc SE is a single-cylinder, two-stroke gasoline engine for RC airplanes designed for a 35cc powerplant. Its side exhaust configuration, Walbro carburetor, and electronic ignition make it a practical choice for compatible sport, scale, and aerobatic aircraft.
Rated at 4.1 horsepower at 9,000 RPM, the RCGF Stinger 35cc SE includes a muffler, CDI ignition, spark plug, mounting standoffs, and installation hardware. SE means side exhaust, distinguishing this engine from the rear exhaust RE version.
🚀 Target Applications:
- RC sport airplanes, scale models, and aerobatic aircraft designed for a 35cc gasoline engine
- Aircraft installations designed for a side exhaust engine, with suitable engine and muffler clearance
Key Features
- 35cc Gasoline Power: Single-cylinder, air-cooled, two-stroke design.
- Side Exhaust Configuration: Exhaust outlet positioned on the side of the cylinder.
- Walbro Carburetor: Adjustable fuel delivery for engine setup and tuning.
- Electronic Ignition: DC-CDI system with computer-controlled automatic timing advance.
- NGK CM6 Spark Plug: Included with the engine package to support dependable operation.
- Included Installation Accessories: Muffler, mounting standoffs, gaskets, bolts, and throttle arm extension.
📋 Technical Specifications
| Engine Type | Single-cylinder, two-stroke gasoline airplane engine |
|---|---|
| Displacement | 2.13 cu in (35cc) |
| Exhaust Configuration | Side exhaust (SE) |
| Bore × Stroke | 1.54 × 1.18 in (39 × 30 mm) |
| Rated Maximum Output | 4.1 hp at 9,000 RPM |
| Operating Speed Range | 1,500–9,000 RPM |
| Listed Idle Speed | 1,800 RPM |
| Carburetor | Walbro |
| Ignition | DC-CDI electronic ignition with automatic timing advance |
| Spark Plug | NGK CM6 or equivalent |
| Cooling | Air cooled |
| Recommended Propellers | 19 × 8, 20 × 8, or 20 × 10 in |
| Suggested Break-In Propeller | 19 × 8 in, two-blade |
| Engine Weight | 2.03 lb (923 g) |
| Muffler Weight | 3.4 oz (97 g) |
| Ignition Module Weight | 4.4 oz (125 g) |
| Combined Listed Weight | 2.52 lb (1,145 g), engine, muffler, and ignition |
| Gator RC SKU | STNG-35-SE |

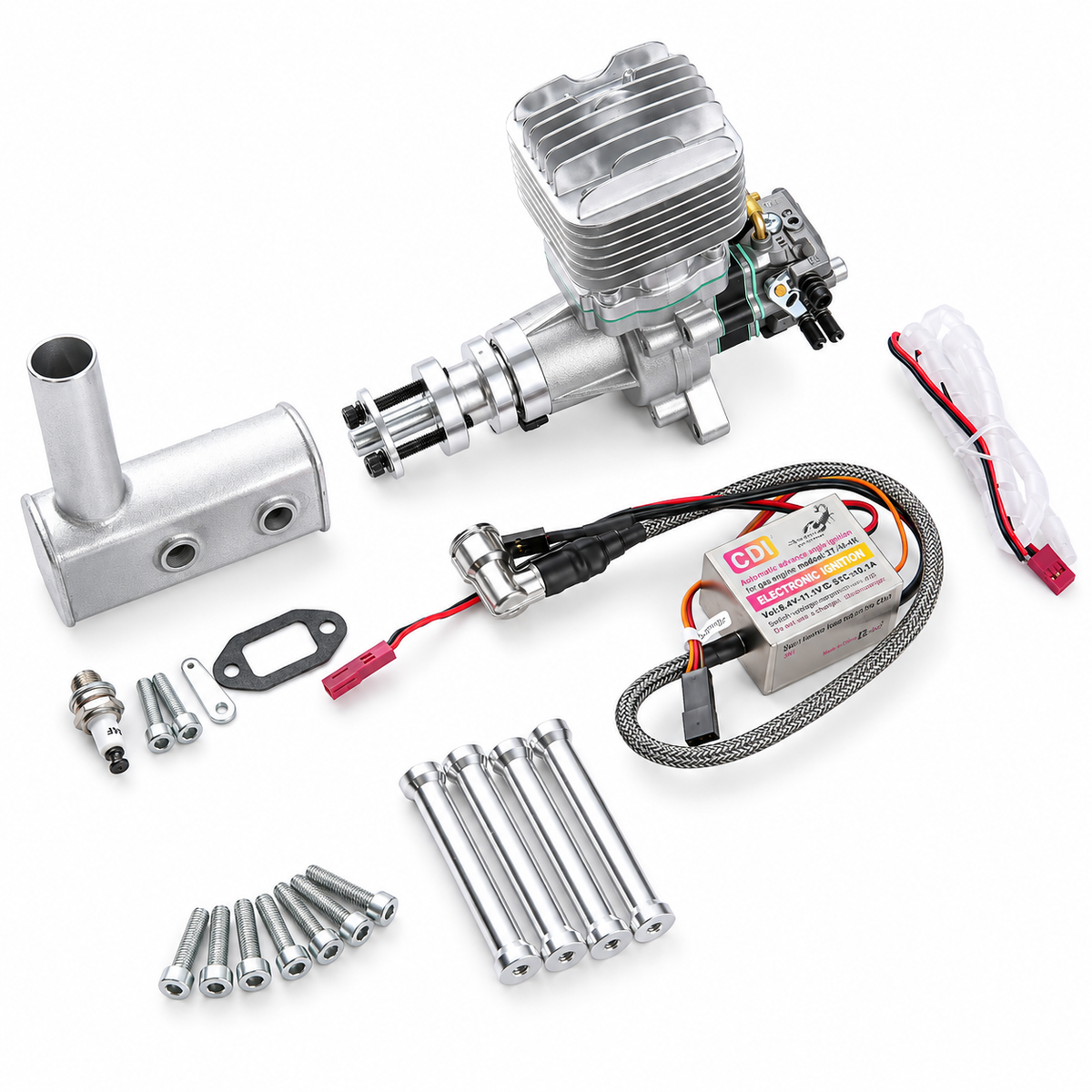

📦 What's Included:
- 1 × RCGF Stinger 35cc SE engine
- 1 × Electronic CDI ignition module
- 1 × Muffler
- 1 × Spark plug
- Gaskets and bolts
- Mounting standoffs
- 1 × Throttle arm extension
- 1 × Instruction manual
Note: Gasoline, two-stroke engine oil, an ignition battery, an appropriate propeller, and a gasoline-compatible fuel system are required separately and sold separately.
🛠 Aircraft Compatibility & Setup

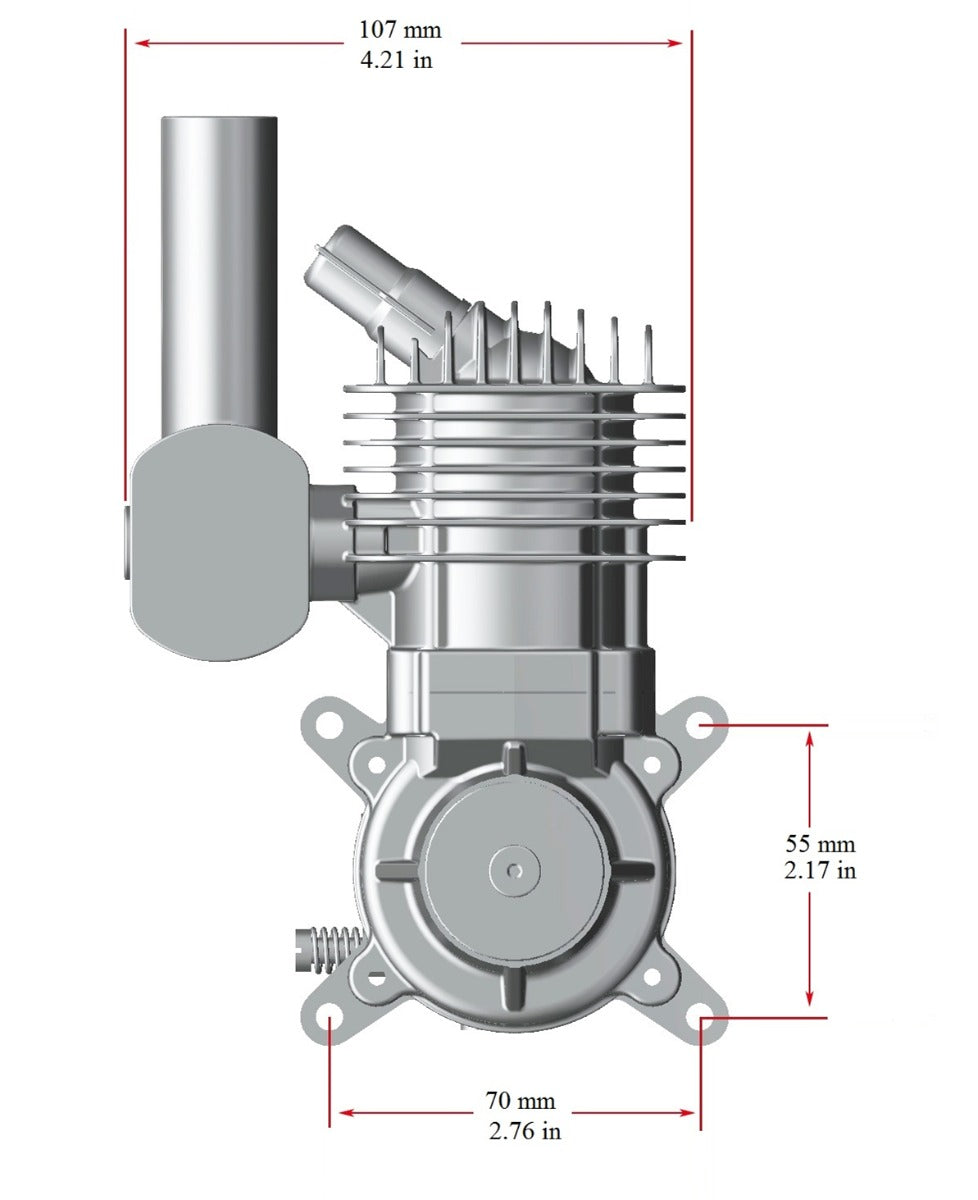

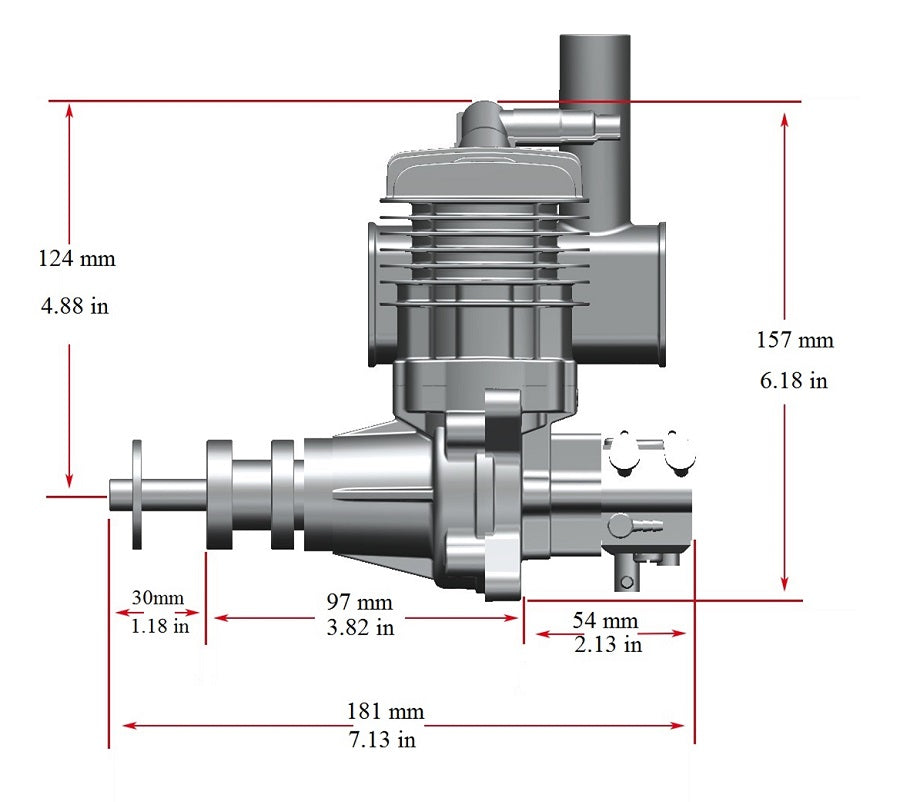

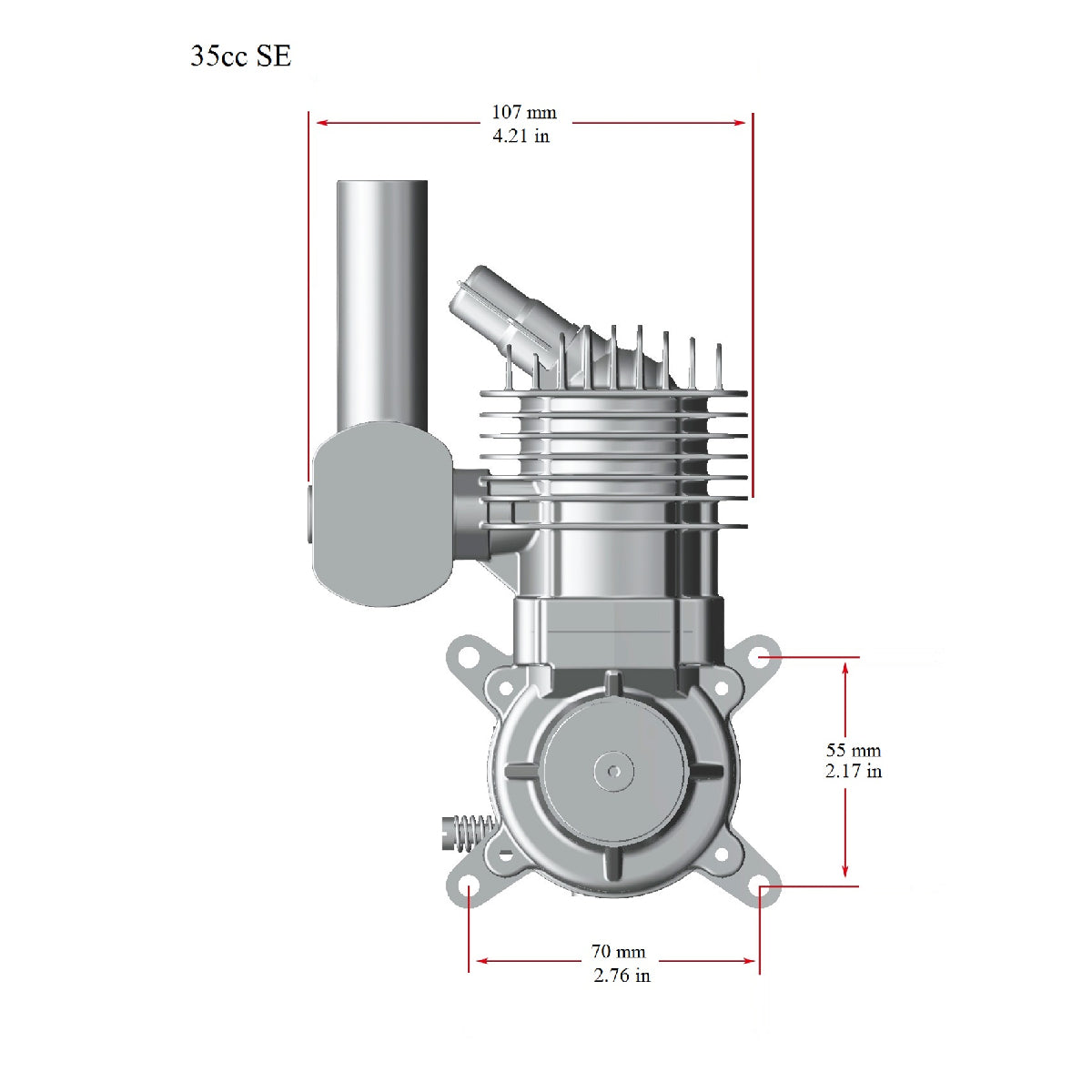

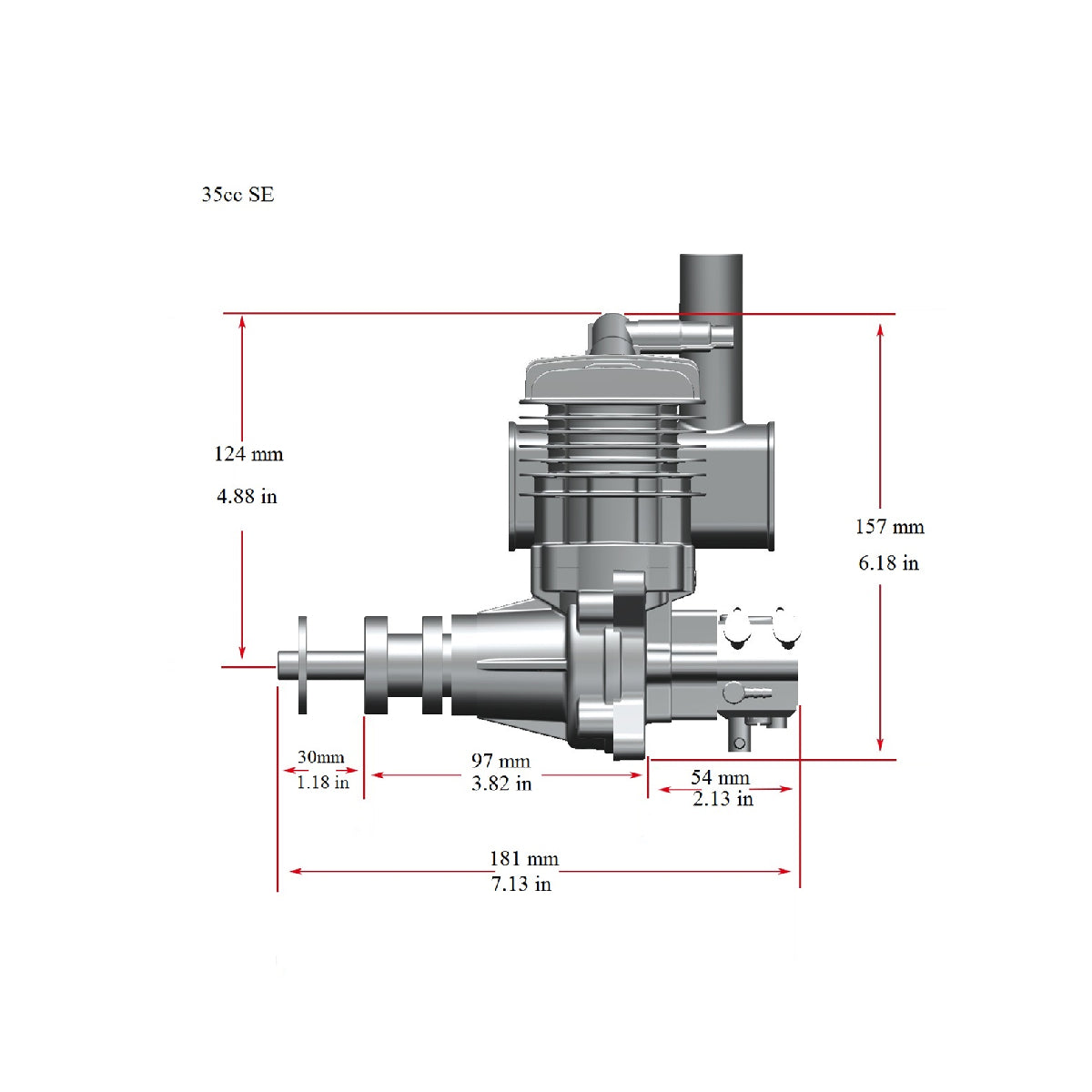

Use the RCGF Stinger 35cc SE in aircraft whose manufacturer recommends a compatible 35cc gasoline engine. Confirm mounting dimensions, cowl clearance, side muffler clearance, propeller clearance, and aircraft balance before installation.
Need rear exhaust? See the RCGF Stinger 35cc RE Rear Exhaust Gas Engine for the alternative exhaust configuration.
Replacement parts: Browse our RCGF Stinger 35cc Engine Parts and confirm compatibility with the side exhaust version before ordering.
