Gator RC .98" (25mm) x 33.46" (850mm) Carbon Fiber Wing Tube & Sleeve – GC1002
Couldn't load pickup availability
Gator RC .98" (25mm) x 33.46" (850mm) Carbon Fiber Wing Tube & Sleeve – GC1002

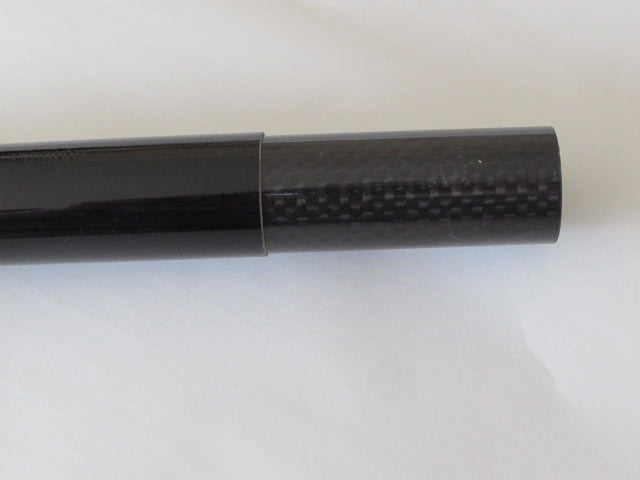

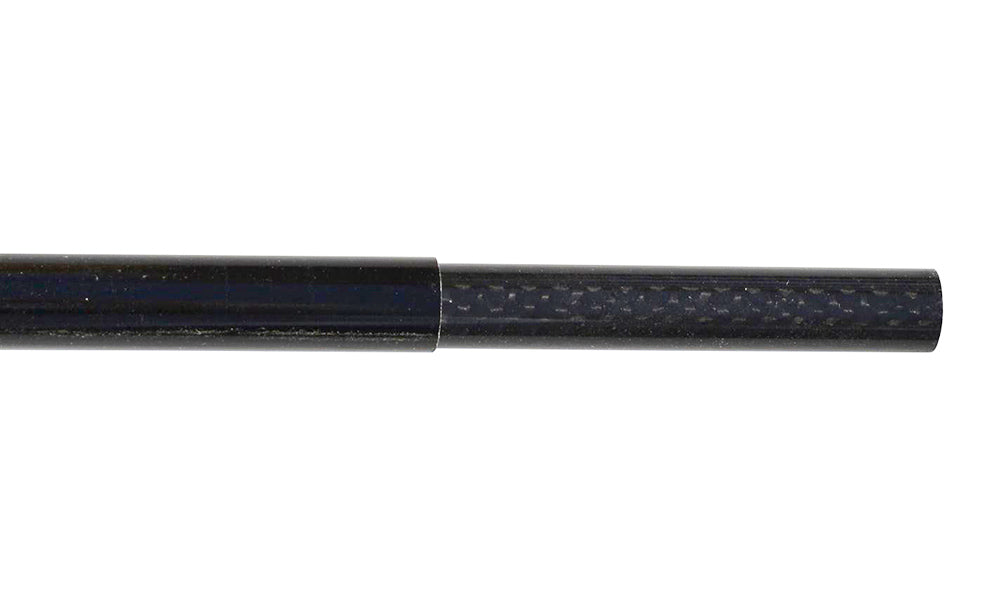

The Gator RC 25mm (.98") Carbon Fiber Wing Tube & Sleeve is engineered for strength, precision fit, and lightweight performance in RC aircraft. Manufactured to Gator RC specifications using a cross-weave carbon fiber construction, this system provides excellent rigidity while minimizing weight.
This matched tube and sleeve setup ensures proper wing alignment and structural integrity, making it ideal for replacements, upgrades, or custom aircraft builds.
Key Features
- High-strength cross-weave carbon fiber construction
- Lightweight design for improved flight performance
- Matched tube and sleeve for precise fit and support
- Excellent rigidity and resistance to flex
- Ideal for mid to large RC airplanes

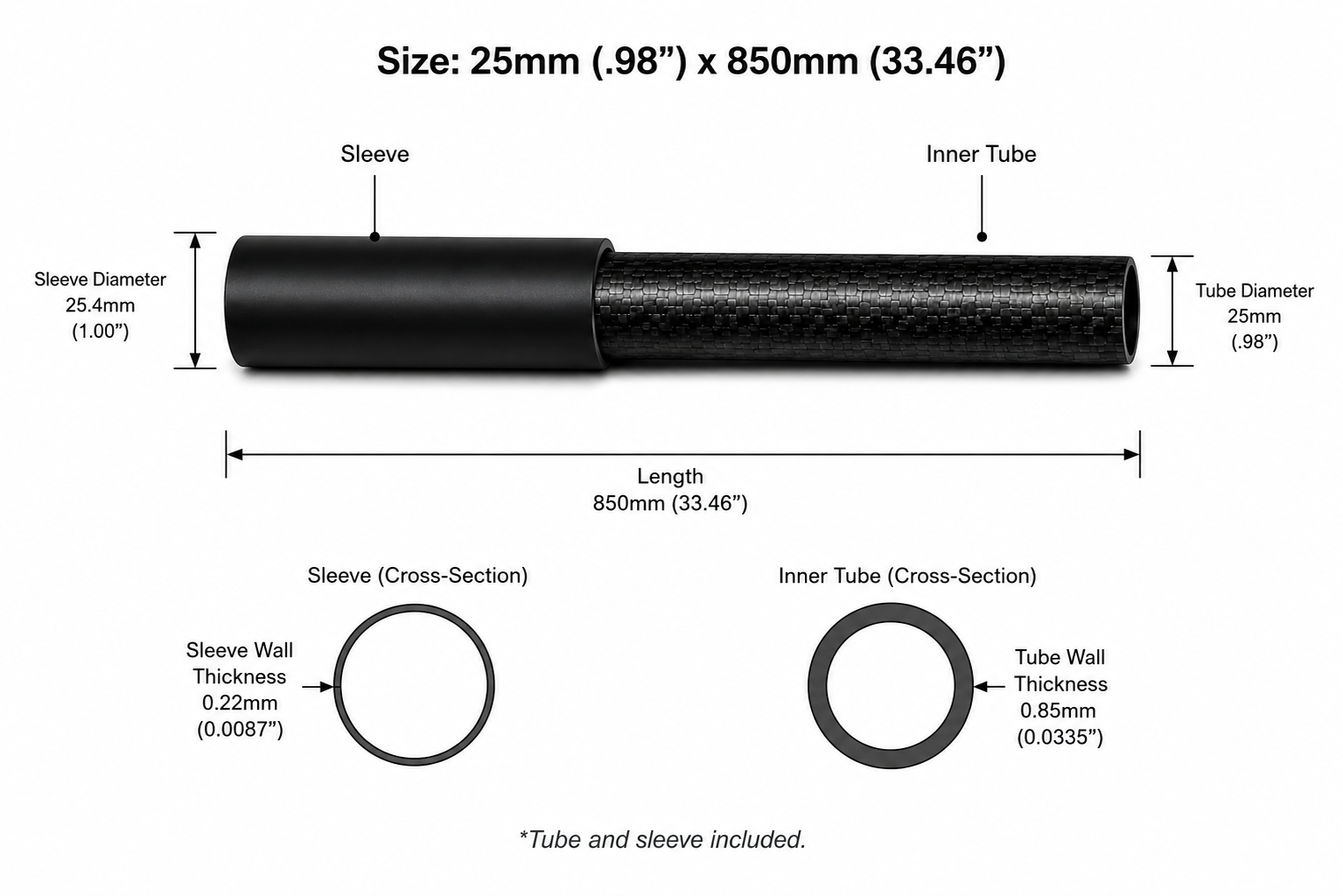

Specifications
- Size: 25mm (.98") x 850mm (33.46")
- Tube Diameter: 25mm (.98")
- Length: 850mm (33.46")
- Tube Wall Thickness: 0.85mm
- Sleeve Diameter: 25.4mm
- Sleeve Wall Thickness: 0.22mm
- Material: Carbon Fiber Tube with Sleeve
- Tube Weight: 93g (3.3 oz)
- Total Weight: 277g (9.8 oz)
- SKU: GC1002
Includes
- 1x 25mm (.98") Carbon Fiber Wing Tube
- 1x Matching Sleeve
Best For
- Mid to large RC airplanes
- Scale and sport aircraft
- Wing joiner replacements
- Custom aircraft builds
Modeler’s Tip
Wing Tube Size Chart & Selection Guide
Choosing the correct wing tube size is critical for proper fit and structural integrity. Always match your existing tube diameter exactly.
| Size (Inch) | Metric | Typical Use |
|---|---|---|
| 7/16" | 11mm | Small stabilizers / micro aircraft |
| 1/2" | 12.7mm | Stabilizers / small sport models |
| 5/8" | 15.9mm | Small aircraft / light loads |
| 3/4" | 19mm | Small to mid-size RC airplanes |
| 7/8" | 22mm | Mid to large-scale aircraft |
| 1" | 25.4mm | Large sport / scale models |
| 1-3/16" | 30mm | 50cc class aircraft |
| 1.25" | 31.75mm | Large-scale aircraft |
| 1.5" | 38.1mm | Giant-scale aircraft |
| 2" | 50.8mm | Extreme giant-scale models |
Shop Nearby Sizes
Wing Tube FAQs
What size aircraft is this wing tube for?
This 25mm wing tube is typically used in mid to large RC airplanes, including many sport, scale, and warbird models.
Can I substitute a different size?
No. Wing tubes must match your aircraft exactly. Even small differences will result in improper fit and structural issues.
What does a wing tube do?
A wing tube (wing joiner) connects both wing panels and provides the structural strength needed during flight.
Why use carbon fiber?
Carbon fiber provides excellent strength-to-weight ratio, reducing flex while keeping your aircraft lightweight and stable.
- SKU GC1002
