Stinger Pro 63cc SE With Pitts Muffler and O ring Seal
Couldn't load pickup availability

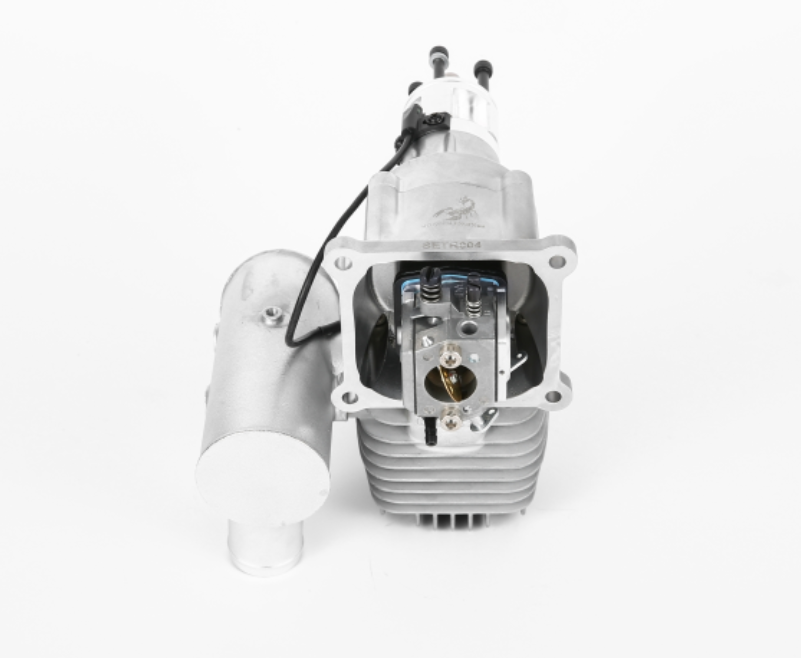

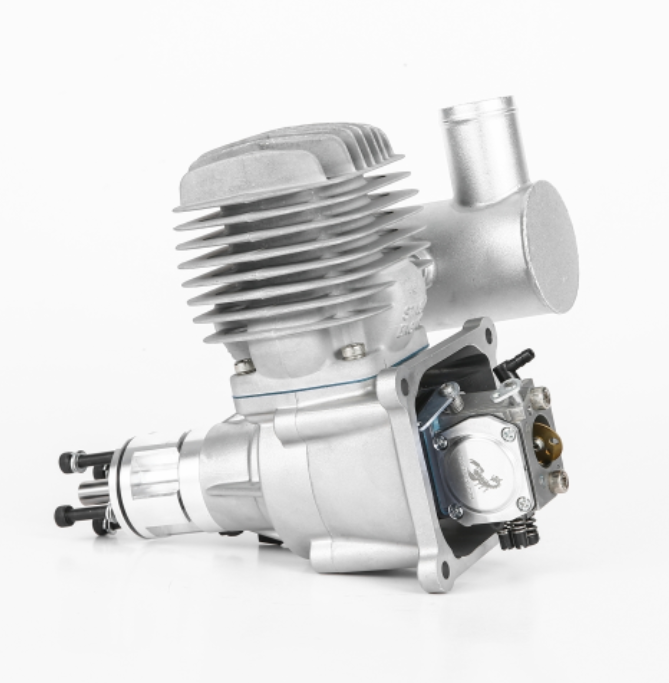

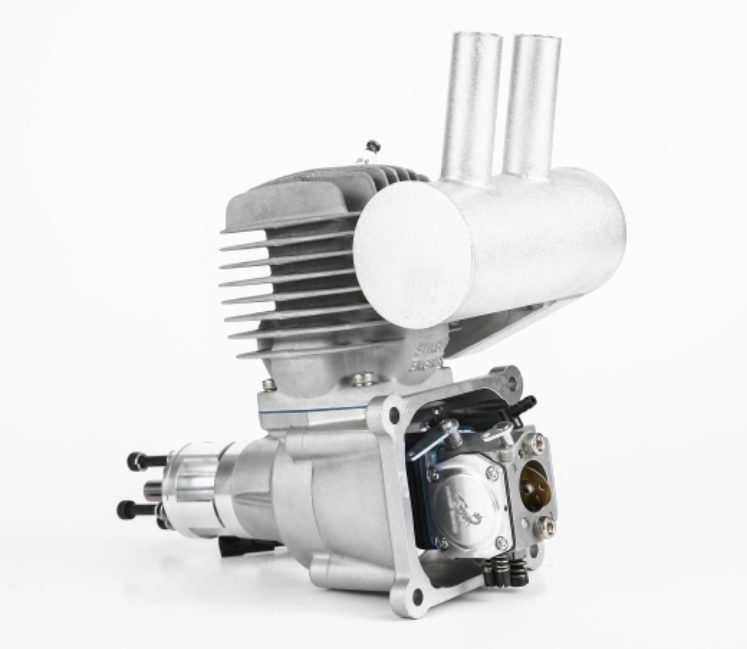

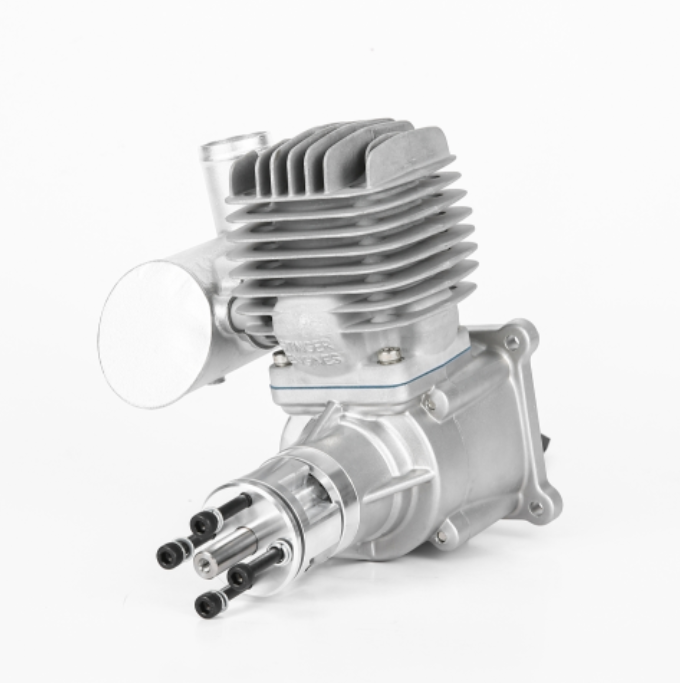

RCGF Stinger Pro 63cc SE with Pitts Muffler & O-Ring Seal
The RCGF Stinger Pro 63cc SE is a single-cylinder, two-stroke gasoline engine for large-scale RC airplanes. This package includes the Pitts muffler and O-ring seal, along with electronic ignition and the accessories listed below.
Featuring a ceramic-plated cylinder, Walbro carburetor, and a manufacturer-rated maximum output of 6.5 horsepower, the Stinger Pro 63cc SE provides gasoline power for compatible giant-scale aircraft. Its side-exhaust configuration and supplied Pitts muffler should be checked against your airplane's cowling and installation requirements.
Key Features
- Pitts muffler package: Includes the Pitts muffler and O-ring seal.
- 63cc displacement: Single-cylinder gasoline engine for compatible large-scale RC airplanes.
- Ceramic-plated cylinder: A feature of the Stinger Pro engine design.
- Walbro carburetor: Adjustable fuel metering for engine tuning.
- Electronic ignition: Stinger DC-CDI system with computer-controlled automatic ignition advance.
- Angled spark plug: Uses an NGK CM6 spark plug or equivalent.
- Air-cooled design: Finned cylinder requires adequate cooling airflow through the engine installation.
Specifications
| Model | RCGF Stinger Pro 63cc SE |
|---|---|
| Gator RC SKU | STNG-63-SE-RingPitts |
| Engine Type | Single-cylinder, two-stroke gasoline engine |
| Displacement | 3.84 cu in (63cc) |
| Bore | 1.85 in (47 mm) |
| Maximum Output | 6.5 hp, manufacturer rated |
| Operating Speed | 1,500–7,500 rpm |
| Exhaust Configuration | Side exhaust |
| Muffler Package | Pitts muffler with O-ring seal |
| Carburetor | Walbro |
| Ignition | Stinger DC-CDI electronic ignition with automatic advance |
| Spark Plug | NGK CM6 or equivalent |
| Listed Ignition Supply Range | 7.4–14V; confirm the requirements of the supplied ignition module before connecting a battery |
| Recommended Propellers | 23 × 10, 24 × 8, 24 × 9, or 24 × 10 in |
| Listed Break-In Propeller | 24 × 9 in, two-blade |
| Cooling | Air cooled |
| Engine Weight | Approximately 49.4 oz (1,400 g), engine only |
What's Included
- RCGF Stinger Pro 63cc SE engine
- Pitts muffler and O-ring seal
- Electronic CDI ignition module
- Spark plug
- Gaskets and bolts
- Throttle arm extension
- Instruction manual
Required to Operate
- Gasoline mixed with suitable two-stroke engine oil
- Ignition battery compatible with the supplied ignition module
- Appropriate gasoline-engine propeller
- Compatible aircraft fuel system and installation equipment
Aircraft Compatibility

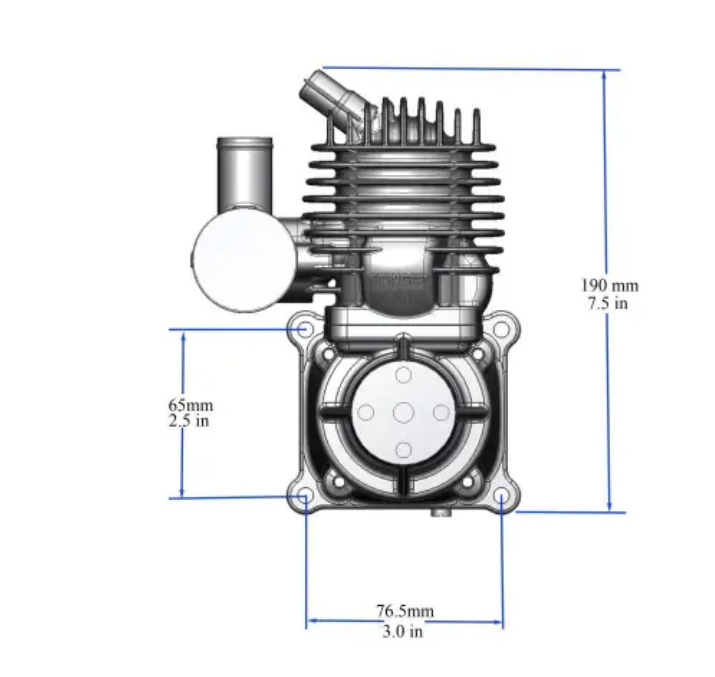

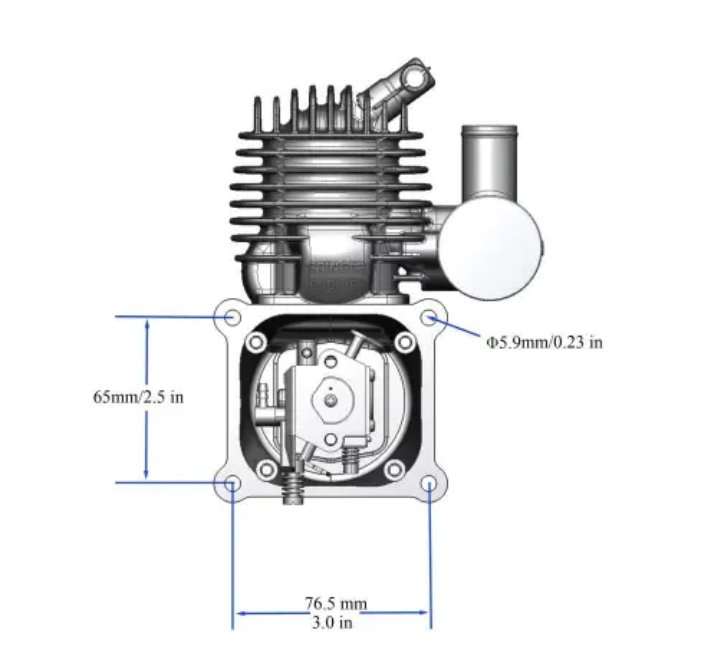

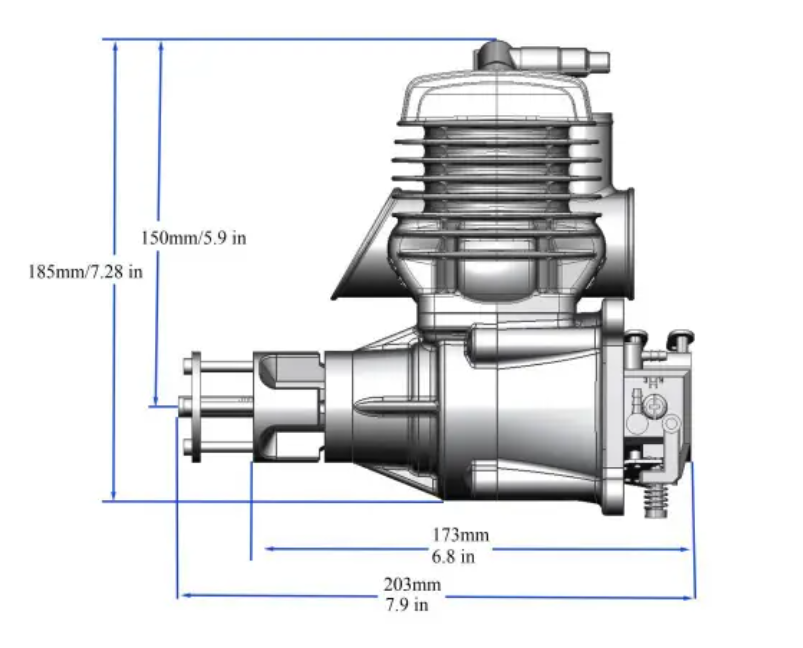

Use this engine in RC airplanes whose manufacturer approves a 63cc gasoline engine of this weight and configuration. Confirm engine mounting dimensions, propeller clearance, Pitts muffler clearance, cooling airflow, and center of gravity before installation. Displacement alone does not establish compatibility.
Fuel and Break-In
Follow the manual supplied with your engine for fuel-to-oil ratio, break-in procedure, ignition battery selection, and carburetor adjustment. Use high-quality two-stroke engine oil that meets the manufacturer's requirements.
Looking for the Stock-Muffler Version?
Gator RC also offers the RCGF Stinger Pro 63cc SE with stock muffler. Select the muffler package that suits your aircraft installation.
